Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9317L2-E3-AXOPTOISO 5KV OPEN COLL 6DIP GW |
1,998 | 2.47 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 6-SDIP Gull Wing |
|
|
PS9309L2-V-E3-AXOPTOISO 5KV PUSH PULL 6SDIP |
2,000 | 2.59 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 1Mbps | 200ns, 200ns | 24ns, 3.2ns | 1.55V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
|
PS9324L2-E3-AXOPTOISO 5KV OPEN COLLECTOR 6SMD |
2,000 | 2.59 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
|
PS9324L2-V-E3-AXOPTOISO 5KV OPEN COLLECTOR 6SMD |
2,000 | 2.59 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
|
PS9324L-E3-AXOPTOISO 5KV OPEN COLLECTOR 6SMD |
2,000 | 2.59 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
PS9821-2-V-F3-AXHI-SPEED OPTOCPLR SO-8 |
1,499 | 2.66 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 15Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 2.7V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
ACPL-074L-060EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
1,300 | 3.18 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|

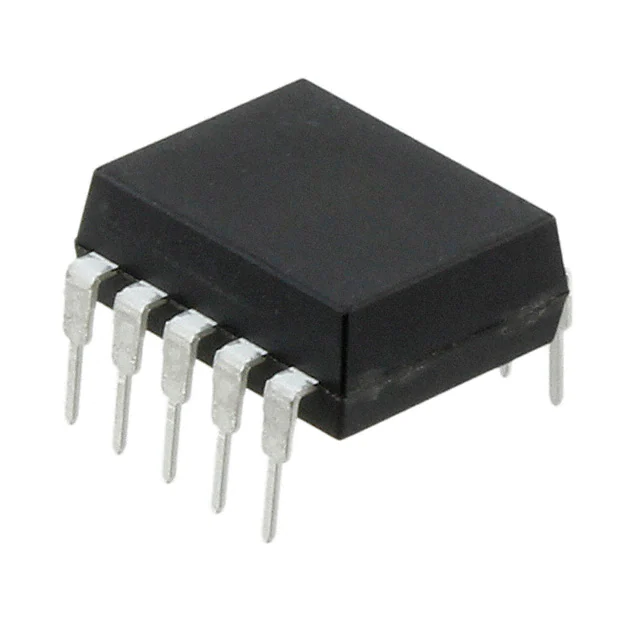

ACNV4506-000EOPTOISO 7.5KV OPEN COLL 10DIP |
1,745 | 2.97 |
|
Datasheet |
- | 10-DIP (0.512", 13.01mm) | Tube | Active | 1 | 1/0 | 7500Vrms | 30kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 10-DIP |
|
|
PS9351L2-E3-AXOPTOISO 5KV PUSH PULL 6SDIP |
2,000 | 3.01 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.56V | 25mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing |
|
|
PS9822-2-F3-AXHI-SPEED OPTOCPLR SO-8 |
1,500 | 3.01 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 15mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
HCPL-063L-560EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,500 | 2.65 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
PS9822-2-V-F3-AXHI-SPD OPTOCPLR SO-8 |
1,500 | 3.02 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 15mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
PS9351L2-V-E3-AXOPTOISO 5KV PUSH PULL 6SOIC |
2,000 | 3.09 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.56V | 25mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing |
|
HCNW4506#500OPTOISO 5KV OPEN COLL 8DIP GW |
1,488 | 2.78 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-K64L-500EOPTOISO 5KV 2CH PUSH PULL 8SO |
704 | 2.75 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
PS9851-2-V-F3-AXOPTOISO 2.5KV 2CH PSH PULL 8SSOP |
1,500 | 3.49 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
PS9851-2-F3-AXOPTOISO 2.5KV 2CH PSH PULL 8SSOP |
1,490 | 3.47 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
HCPL-7721-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
1,813 | 4.01 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-263N-520EOPTOISO 5KV 2CH OPEN COL 8DIP GW |
1,996 | 3.43 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
HCPL-2411OPTOISO 2.5KV TRI-STATE 8DIP |
680 | 5.09 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | 0°C ~ 70°C | Through Hole | 8-DIP |
