Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

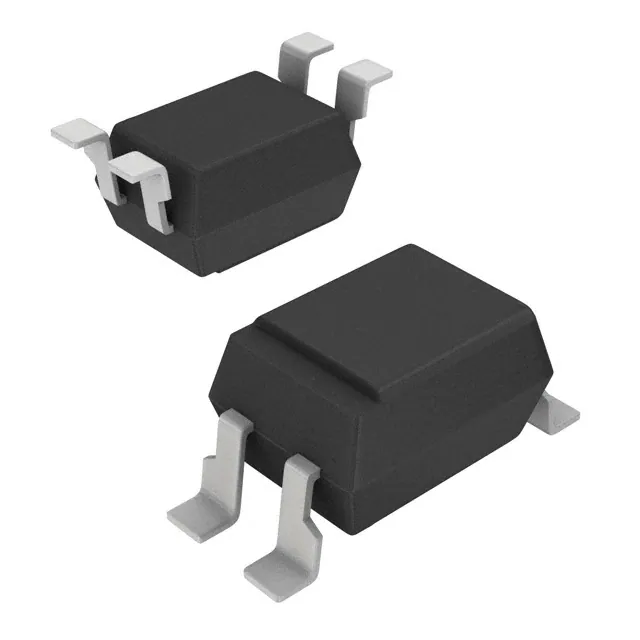

FOD8163SAC IN-DARLINGTON OUT OPTOCOUPLER Fairchild Semiconductor |
1,700 | 0.18 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Obsolete | 1 | - | 5000Vrms | - | AC, DC | Darlington | 80 mA | - | - | 60µs, 53µs | 1.2V | 50mA | - | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
|
FOD8163SDAC IN-DARLINGTON OUT OPTOCOUPLER Fairchild Semiconductor |
1,859 | 0.19 |
|
Datasheet |
- | 4-SMD, Gull Wing | Bulk | Obsolete | 1 | - | 5000Vrms | - | AC, DC | Darlington | 80 mA | - | - | 60µs, 53µs | 1.2V | 50mA | - | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|

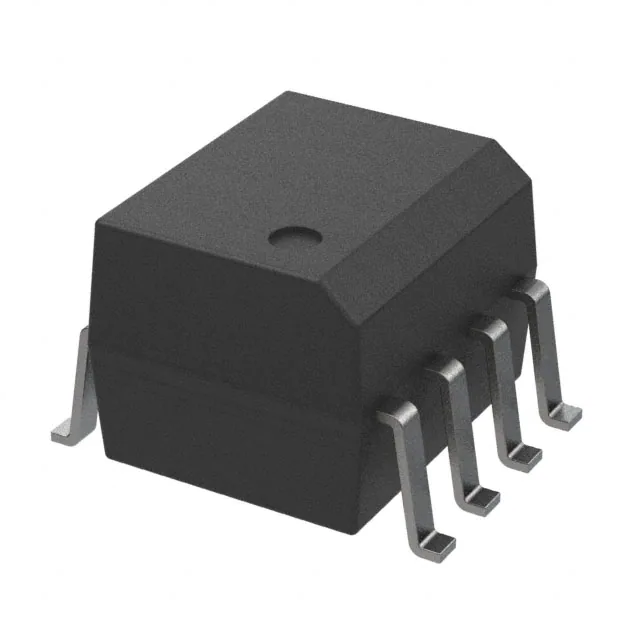

6N137SDLOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
12,334 | 0.87 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
HCPL0600VLOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
2,666 | 1.14 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|

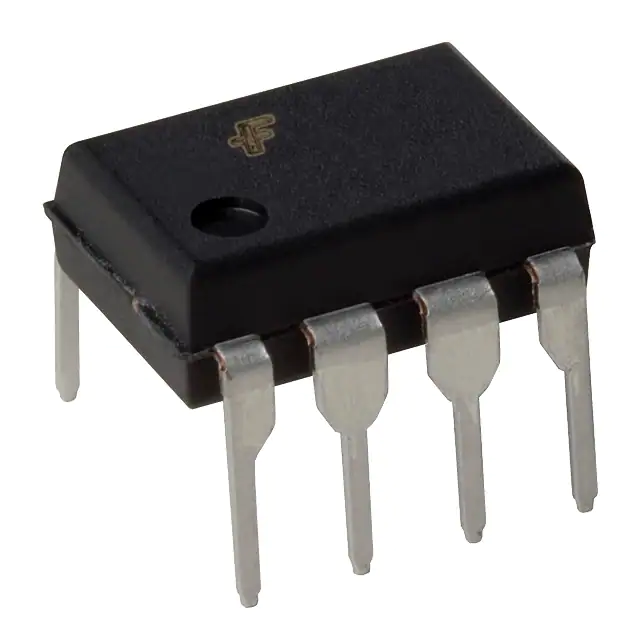

HCPL2630VLOGIC IC OUTPUT OPTOCOUPLER, 2-E Fairchild Semiconductor |
1,336 | 1.21 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL2611VLOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
900 | 1.23 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL0601R2HIGH SPEED-10MBIT/S LOGIC GATE O Fairchild Semiconductor |
49,074 | 3.42 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL0601HIGH SPEED-10MBIT/S LOGIC GATE O Fairchild Semiconductor |
6,711 | 3.23 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

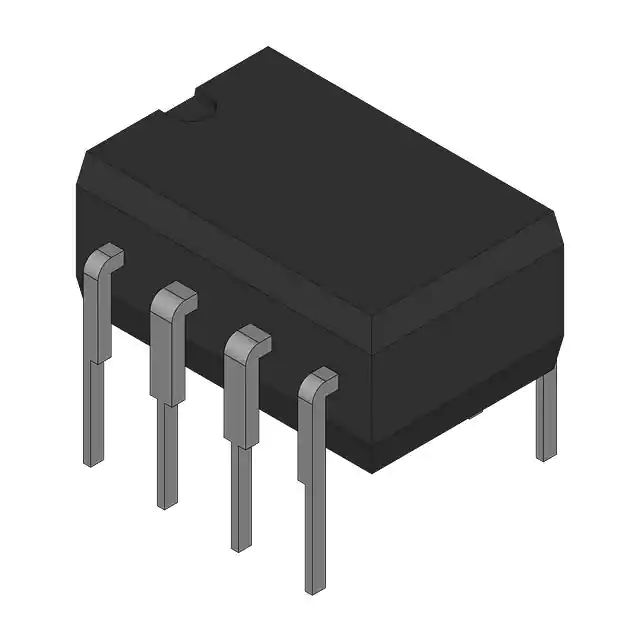

FOD2200LOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
357 | 1.87 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 300ns, 300ns | 80ns, 25ns | 1.4V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
FOD0738LOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
2,352 | 3.27 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
