Photonics - Counters, Detectors, SPCM (Single Photon Counting Module)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Photon Detection Efficiency | Wavelength Range | Dark Count Rate | Wavelength - Peak | Max Count Rate | Dead Time | Voltage - Supply | Output | Detector Type | Active Area | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPCM-AQRH-12-TR-BR2PHOTON COUNTING MODULE |
2,748 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-22-TR-BR1PHOTON COUNTING MODULE |
1,008 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-22-TR-BR2PHOTON COUNTING MODULE |
3,797 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-32-TR-BR1PHOTON COUNTING MODULE |
2,963 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-32-TR-BR2PHOTON COUNTING MODULE |
2,422 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-42-TR-BR1PHOTON COUNTING MODULE |
2,221 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-42-TR-BR2PHOTON COUNTING MODULE |
2,842 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-52-TR-BR1PHOTON COUNTING MODULE |
2,547 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-52-TR-BR2PHOTON COUNTING MODULE |
3,210 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-62-TR-BR1PHOTON COUNTING MODULE |
3,409 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-62-TR-BR2PHOTON COUNTING MODULE |
2,416 | 4747.02 |
|
Datasheet |
SPCM-AQRH-TR | Box | Active | Single Photon Detector, Time Correlated | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-23-FCPHOTON COUNTING MODULE |
4,855 | 4821.02 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-33-FCPHOTON COUNTING MODULE |
4,025 | 4821.02 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-53-FCPHOTON COUNTING MODULE |
4,562 | 4821.02 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

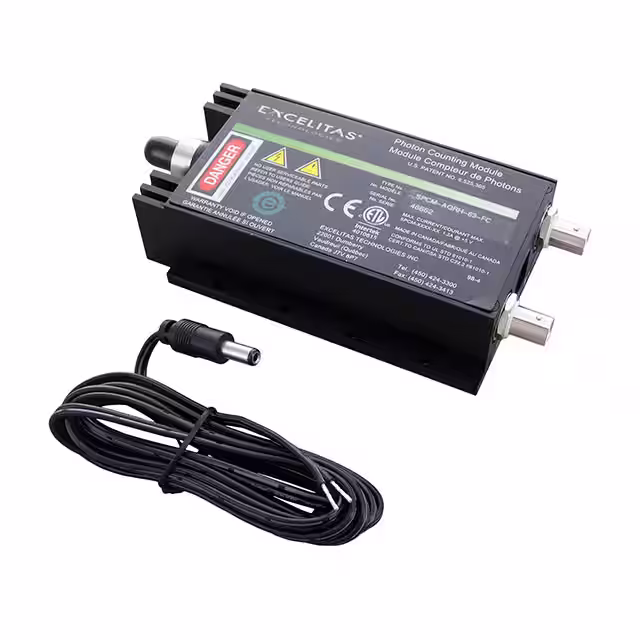

SPCM-AQRH-63-FCPHOTON COUNTING MODULE |
1,736 | 4821.02 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-780-13PHOTON COUNTING MODULE |
1,996 | 5062.03 |
|
Datasheet |
SPCM-NIR | Box | Active | Single Photon Detector | 70% | 400 ~ 1060nm | 250cps | 780nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-780-23PHOTON COUNTING MODULE |
3,771 | 5062.03 |
|
Datasheet |
SPCM-NIR | Box | Active | Single Photon Detector | 70% | 400 ~ 1060nm | 250cps | 780nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-780-33PHOTON COUNTING MODULE |
3,866 | 5062.03 |
|
Datasheet |
SPCM-NIR | Box | Active | Single Photon Detector | 70% | 400 ~ 1060nm | 250cps | 780nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-780-43PHOTON COUNTING MODULE |
3,016 | 5062.03 |
|
Datasheet |
SPCM-NIR | Box | Active | Single Photon Detector | 70% | 400 ~ 1060nm | 250cps | 780nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-780-53PHOTON COUNTING MODULE |
2,486 | 5062.03 |
|
Datasheet |
SPCM-NIR | Box | Active | Single Photon Detector | 70% | 400 ~ 1060nm | 250cps | 780nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
