Machine Vision - Lenses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Focal Length | Magnification | Focal Ratio | Compatible Sensor Size (Max) | Field of View | Working Distance | Depth Of Field | Resolution | TV Distortion | Filter Size | Diameter | Length | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ED-LENS-M12-230430-088MP 4.3MM M12 RASPBERRY PI LENS |
1,919 | 0.00 |
|
- |
- | Box | Active | Wide Angle | 4.3mm | - | F3.0 | 1/2.3" | 56.7° x 71.9° | 300mm | - | - | 0.6% | M12 x P0.5 | 14.0mm Dia | 19.6mm | C-Mount | -20°C ~ 70°C |
|
|
ED-LENS-M12-230356-088MP 3.56MM M12 RASPBERRY PI LENS |
3,810 | 0.00 |
|
- |
- | Box | Active | Wide Angle | 3.6mm | - | F2.5 | 1/2.3" | 69° x 88° | 300mm | - | - | -16.5% | M12 x P0.5 | 14.0mm Dia | 16.4mm | C-Mount | -30°C ~ 75°C |
|
|
ED-LENS-M12-230390-088MP 3.9MM M12 RASPBERRY PI LENS |
4,290 | 0.00 |
|
- |
- | Box | Active | Wide Angle | 3.9mm | - | F2.5 | 1/2.3" | 61° x 77.5° | 300mm | - | - | 0.5% | M12 x P0.5 | 14.0mm Dia | 18.7mm | C-Mount | -30°C ~ 75°C |
|
|
ED-LENS-M12-230325-1212MP 3.25MM M12 RASPBERRY PI LEN |
1,022 | 0.00 |
|
- |
- | Box | Active | Wide Angle | 3.3mm | - | F2.6 | 1/2.3" | 71.6° x 88.5° | 300mm | - | - | -0.6% | M12 x P0.5 | 14.0mm Dia | 19.0mm | C-Mount | -30°C ~ 75°C |
|
|
ED-LENS-M12-230280-088MP 2.8MM M12 RASPBERRY PI LENS |
4,824 | 0.00 |
|
- |
- | Active | Wide Angle | 2.8mm | - | F2.4 | 1/2.3" | 85° x 102° | 300mm | - | - | -1.36% | M12 x P0.5 | 18.0mm Dia | 18.3mm | C-Mount | -20°C ~ 70°C | |
|
|
ED-LENS-M12-230270-088MP 2.7MM M12 RASPBERRY PI LENS |
3,239 | 0.00 |
|
- |
- | Box | Active | Wide Angle | 2.7mm | - | F2.8 | 1/2.3" | 82.7° x 100° | 300mm | - | - | -1.5% | M12 x P0.5 | 16.0mm Dia | 18.4mm | C-Mount | -30°C ~ 75°C |
|
|
ED-LENS-M12-230220-088MP 2.2MM ULTRA WIDE ANGEL LENS |
4,128 | 0.00 |
|
- |
- | Box | Active | Wide Angle | 2.2mm | - | F1.8 | 1/2.3" | 82° x 112° | 300mm | - | - | -4.96% | M12 x P0.5 | 22.0mm Dia | 21.0mm | C-Mount | -30°C ~ 75°C |
|
|
ED-LENS-M12-230191-1212MP 1.91MM ULTRA WIDE ANGEL LEN |
4,189 | 0.00 |
|
- |
- | Active | Wide Angle | 1.9mm | - | F1.8 | 1/2.3" | 140.5° x 185° | 300mm | - | - | 1.2% | M12 x P0.5 | 23.5mm Dia | 24.9mm | C-Mount | -30°C ~ 75°C | |
|
|
CIL068-F2.5-M12ANIR6.8mm Low Distortion M12 Lens |
4,591 | 0.00 |
|
Datasheet |
- | Bag | Active | Low Distortion | 6.8mm | - | F2.5 | 1/2" | 62° @ 8.0mm | - | - | 12MP (1.55µm) | -1% | M12 x P0.5 | 19.0mm Dia | 31.6mm | S-Mount | - |
|

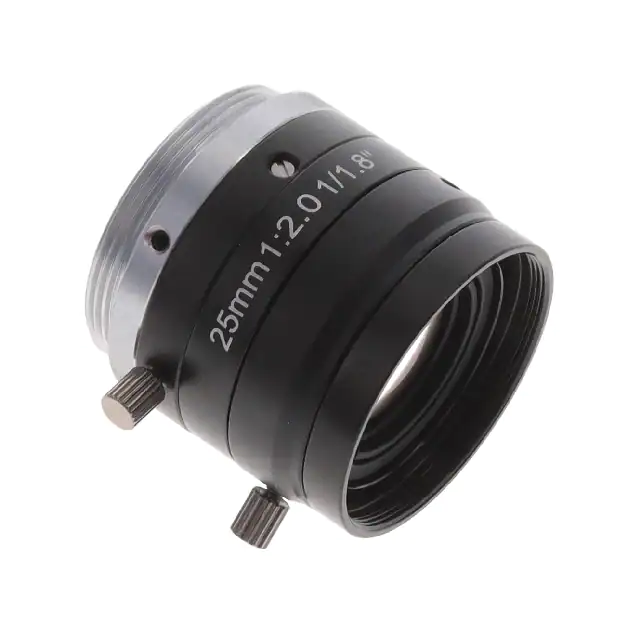

VFA1-118-5M25LENS W ANG F2 0.028X-0.296X C-MT |
1,471 | 81.96 |
|
Datasheet |
- | Active | Wide Angle | 25.0mm | 0.028x ~ 0.296x | F2 | 1/1.8" | 190.8 x 254.4mm ~ 18.3 x 24.4mm | 900mm ~ 100mm | 13.7mm | - | 0.1% | M25.5 x P0.5 | 27.0mm Dia | 23.5mm | C-Mount | -10°C ~ 50°C | |
|

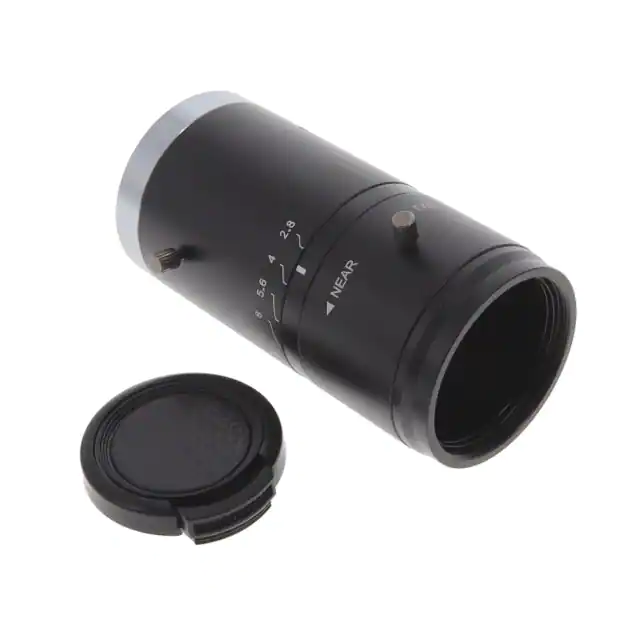

VFA1-118-5M75LENS STD F2.8-F22 0.013X-0.178X |
4,358 | 92.65 |
|
Datasheet |
- | Case | Active | Standard | 75.0mm | 0.013x ~ 0.178x | F2.8 ~ F22 | 1/1.8" | 4065.3 x 5420.4mm ~ 121.0 x 161.3mm | 6000mm ~ 500mm | 42.2 ~ 55.5mm | - | 0.05% | - | 35.0mm Dia | 71.9mm | C-Mount | -10°C ~ 50°C |
|

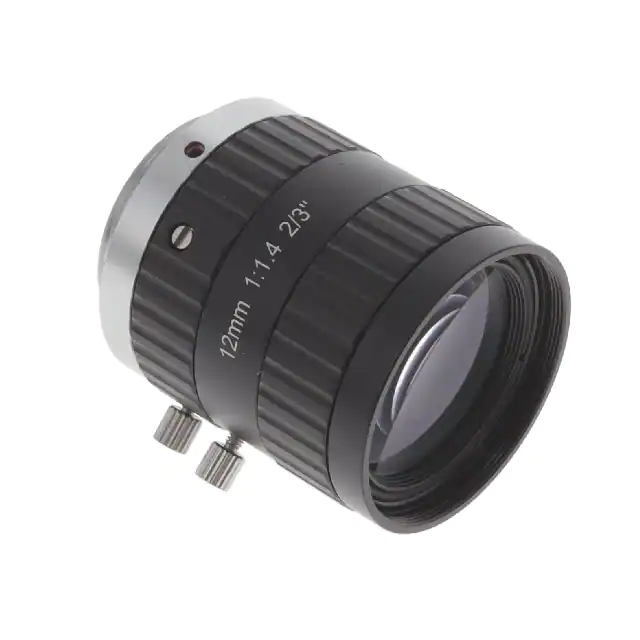

VFA1-230-5M12LENS W ANG F1.4-F16 0.014-0.077X |
3,065 | 104.61 |
|
Datasheet |
- | Case | Active | Wide Angle | 12.0mm | 0.014x ~ 0.077x | F1.4 ~ F16 | 2/3" | - | 900mm ~ 150mm | 13.0mm | - | 0.4% ~ 0.8% | M30.5 x 0.5 | 32.9mm Dia | 36.5mm | C-Mount | -10°C ~ 50°C |
|

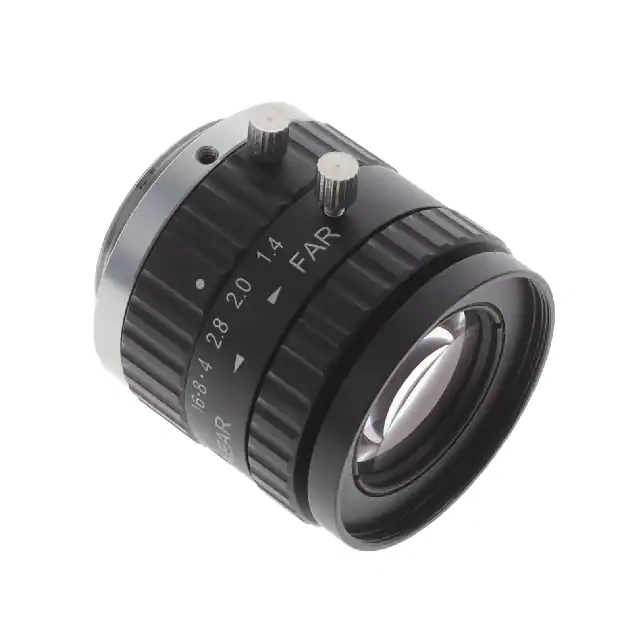

VFA1-230-5M16LENS W ANG F1.4-F16 0.018-0.145X |
1,252 | 104.61 |
|
Datasheet |
- | Case | Active | Wide Angle | 16.0mm | 0.018x ~ 0.145x | F1.4 ~ F16 | 2/3" | - | 900mm ~ 150mm | 12.7mm | - | 0.1% ~ 0.3% | M30.5 x 0.5 | 33.5mm Dia | 33.9mm | C-Mount | -10°C ~ 50°C |
|
|
CIL522-F1.4-CMANIR12mm 2/3" 5MP C Mount Lens |
4,063 | 0.00 |
|
Datasheet |
2/3" Up to 5MP | Bag | Active | Wide Angle | 12.0mm | - | F1.4 | 2/3" | 51° @ 11mm | - | - | 5MP (3.45µm) | 0.35% | M27 x P0.5 | 32.0mm Dia | 29.0mm | C-Mount | - |
|
|
3Z4S-LE SV-1614VLENS WIDE ANGLE C-MOUNT |
1,792 | 0.00 |
|
Datasheet |
SV-V | Bulk | Obsolete | Wide Angle | 16.0mm | - | - | 1/3" | 22.8° x 30.1° | 400mm (Min) | - | - | - | M27 x P0.5 | 29.0mm Dia | 24.0mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-2514VLENS WIDE ANGLE C-MOUNT |
3,544 | 0.00 |
|
Datasheet |
SV-V | Bulk | Obsolete | Wide Angle | 25.0mm | - | - | 1/3" | 14.9° x 19.8° | 500mm (Min) | - | - | - | M27 x P0.5 | 29.0mm Dia | 24.5mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-3518VLENS STANDARD C-MOUNT |
3,346 | 0.00 |
|
Datasheet |
SV-V | Bulk | Obsolete | Standard | 35.0mm | - | - | 1/3" | 10.8° x 14.4° | 300mm (Min) | - | - | - | M27 x P0.5 | 29.0mm Dia | 33.5 ~ 37.5mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-0614VLENS WIDE ANGLE C-MOUNT |
1,098 | 0.00 |
|
Datasheet |
SV-V | Bulk | Obsolete | Wide Angle | 6.0mm | - | - | 1/3" | 42.3° x 54.6° | 200mm (Min) | - | - | - | M27 x P0.5 | 29.0mm Dia | 30.0mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-0813VLENS WIDE ANGLE C-MOUNT |
2,453 | 0.00 |
|
Datasheet |
SV-V | Bulk | Obsolete | Wide Angle | 8.0mm | - | - | 1/3" | 44.6° x 57.3° | 200mm (Min) | - | - | - | M25.5 x P0.5 | 28.0mm Dia | 34.0mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-5018VLENS STANDARD C-MOUNT |
3,973 | 0.00 |
|
Datasheet |
SV-V | Bulk | Obsolete | Standard | 50.0mm | - | - | 1/3" | 7.9° x 10.5° | 1000mm (Min) | - | - | - | M30.5 x P0.5 | 32.0mm Dia | 37.0 ~ 39.4mm | C-Mount | 0°C ~ 50°C |
