Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-5160-200OPTOISO 1.5KV 1CH GATE DVR 16DIP Broadcom Limited |
1,669 | 159.76 |
|
Datasheet |
- | 16-DIP (0.311", 7.90mm) | Tube | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP | - |
|
HCPL-3020-060EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
4,076 | 0.88 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
ACPL-W340-060EOPTOISO 5KV 1CH GATE DRIVER 6SO Broadcom Limited |
4,035 | 1.25 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
HCPL-0314-000EOPTOISO 3.75KV 1CH GATE DVR 8SO Broadcom Limited |
4,090 | 2.41 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, UR |
|

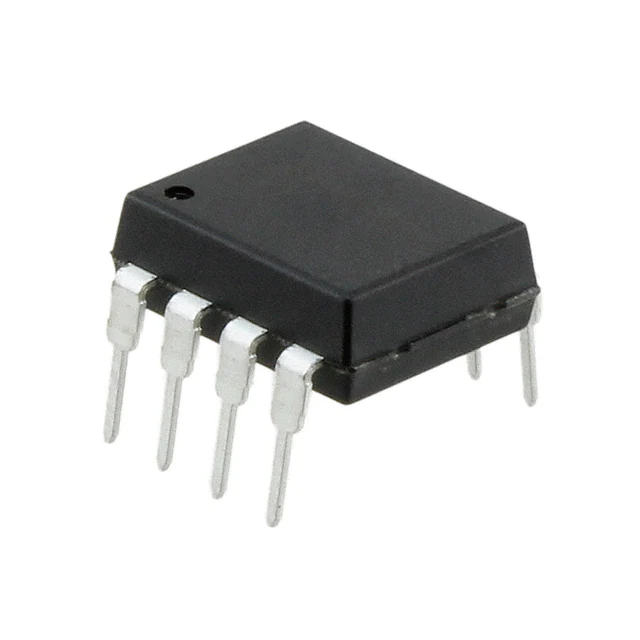

ACNW3190-000EOPTOISO 5KV 1CH GATE DVR 8DIP Broadcom Limited |
1,305 | 7.08 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
|
ACPL-W340-000EOPTOISO 5KV 1CH GATE DRIVER 6SO Broadcom Limited |
2,090 | 3.28 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
ACPL-W341-000EOPTOISO 5KV 1CH GATE DRIVER 6SO Broadcom Limited |
1,237 | 3.10 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 2.5A, 2.5A | 3A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
ACPL-K34T-560EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
2,529 | 6.00 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 110ns, 110ns | 40ns | 10ns, 10ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 10V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
.jpg)
|
ACNW3410-000EOPTOISO 5KV 1CH GATE DVR 8DIP Broadcom Limited |
4,328 | 6.75 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
ACPL-312T-300EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
3,071 | 6.23 |
|
Datasheet |
R²Coupler™ | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
