Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

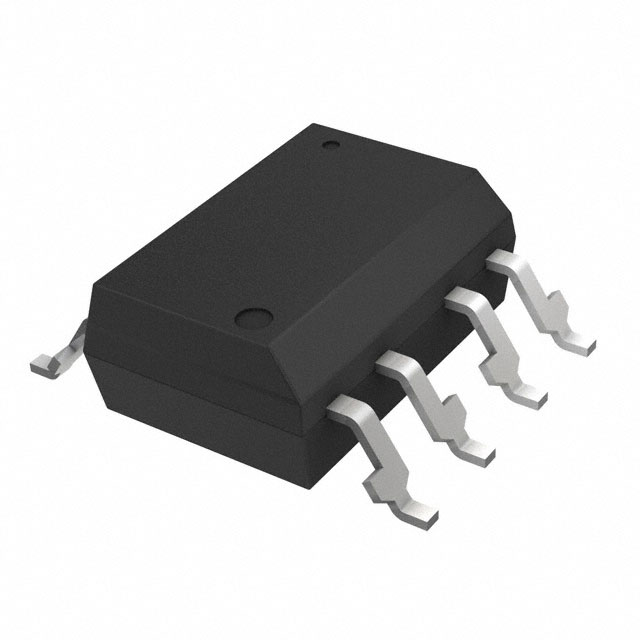

TLP352F(D4-TP4,F)OPTOISO 3.75KV 1CH GATE DVR 8SMD Toshiba Semiconductor and Storage |
3,176 | 1.94 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD | CSA, cUL, UL, VDE |
|
TLP5751(EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
1,562 | 2.38 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL |
|
TLP5214(TP,EOPTOISO 5KV 1CH GATE DVR 16SO Toshiba Semiconductor and Storage |
4,753 | 8.10 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 32ns, 18ns | 3A, 3A | 4A | 1.7V (Max) | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SO | CQC, CSA, cUL, UL |
|
TLP5701(D4-LF4,EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
2,675 | 0.65 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.57V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
TLP352F(D4,F)OPTOISO 3.75KV 1CH GATE DVR 8DIP Toshiba Semiconductor and Storage |
2,107 | 1.18 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, cUL, UL, VDE |
|
|
TLP5771H(EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
3,407 | 1.26 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
|
TLP5774H(LF4,EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
1,708 | 1.38 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 4A, 4A | 4A | 1.65V | 8 mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
|
TLP5751(LF4,EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
2,734 | 1.22 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
|
TLP5774H(EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
4,513 | 1.27 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 4A, 4A | 4A | 1.65V | 8 mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
|
TLP5752(EOPTOISO 5KV 1CH GATE DVR 6SO Toshiba Semiconductor and Storage |
1,105 | 1.30 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL |
