Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC5350MCDRDGTL ISO 3KV 1CH GATE DVR 8SOIC Texas Instruments |
7,633 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 65ns, 65ns | 20ns | 10ns, 10ns | 5A, 5A | - | - | - | 13.2V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
UCC5304DWVRDGTL ISO 5KV 1CH GATE DVR 8SOIC Texas Instruments |
1,602 | 2.46 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | 4A, 6A | - | - | 6V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
UCC5390SCDRDGTL ISO 3KV 1CH GATE DVR 8SOIC Texas Instruments |
1,342 | 3.08 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 65ns, 65ns | 20ns | 10ns, 10ns | 10A, 10A | - | - | - | 13.2V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
UCC21750DWRDGTL ISO 5.7KV 1CH GT DVR 16SOIC Texas Instruments |
3,388 | 5.81 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 33ns, 27ns | 10A, 10A | 10A | - | - | 13V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|
UCC21225ANPLRDGTL ISO 2.5KV 2CH GT DVR 13VLGA Texas Instruments |
3,721 | 4.27 |
|
Datasheet |
- | 13-VFLGA | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 3V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 13-VLGA (5x5) | CQC, CSA, UR, VDE |
|
|
TPSI3050DWZRDGTL ISO 3KV 1CH GATE DVR 8SOIC Texas Instruments |
1,363 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100V/ns | - | - | - | 1.5A, 3A | 1.5A, 3A | - | 37 mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | UL, VDE |
|
|
UCC21710DWRDGTL ISO 5.7KV 1CH GT DVR 16SOIC Texas Instruments |
7,933 | 3.81 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 33ns, 27ns | 10A, 10A | 10A | - | - | 13V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|
|
UCC21521DWRDGTL ISO 5.7KV 2CH GT DVR 16SOIC Texas Instruments |
3,294 | 4.69 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 9.2V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
TPSI3050QDWZRQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC Texas Instruments |
1,268 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | - | - | - | 1.5A, 3A | 1.5A, 3A | - | 37 mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | UL, VDE |
|

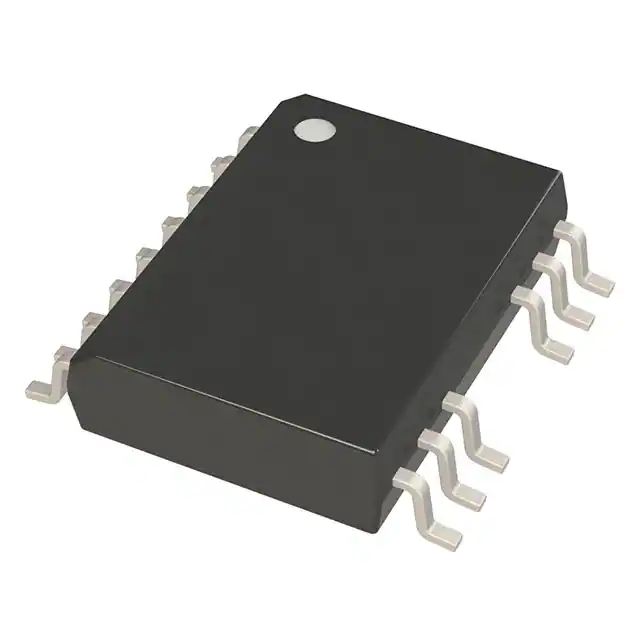

UCC21320QDWKRQ1DGT ISO 3.75KV 2CH GT DVR 14SOIC Texas Instruments |
2,082 | 5.57 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3750Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | 4A, 6A | - | - | 9.2V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, UL, VDE |
