Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

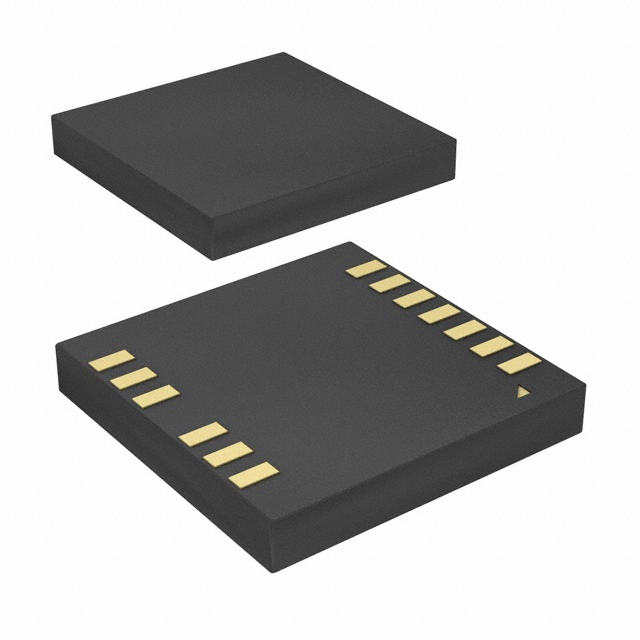

1EDF5673KXUMA1DGT ISO 1.5KV 1CH GT DVR TFLGA13 Infineon Technologies |
1,876 | 3.31 |
|
Datasheet |
EiceDRIVER™ | 13-TFLGA | Tape & Reel (TR) | Last Time Buy | Magnetic Coupling | 1 | 1500VDC | 150V/ns | 44ns, 44ns | 18ns (Typ) | 6.5ns, 4.5ns | 4A, 8A | - | - | - | 3.13V ~ 3.47V | - | - | -40°C ~ 85°C | Surface Mount | PG-TFLGA-13-1 | CQC, CSA, UL, VDE |
|
1EDI30J12CPXUMA1DIGITAL ISO 1CH GATE DVR DSO19-4 Infineon Technologies |
3,660 | 4.59 |
|
Datasheet |
EiceDRIVER™ | 20-SOIC (0.295", 7.50mm Width), 19 Leads | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 23ns, 22ns | 4A, 4A | - | - | - | 4.75V ~ 17.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-19-4 | - |
|
1EDS20I12SVXUMA1DIGITAL ISO 5KV 1CH GATE DVR Infineon Technologies |
4,000 | 5.94 |
|
Datasheet |
EiceDRIVER™ | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 5000Vrms | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | Surface Mount | - | - |
|
1ED3240MC12HXUMA1DGT ISO 5.7KV 1CH GT DVR DSO8-66 Infineon Technologies |
4,959 | 5.11 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200kV/µs | 110ns, 110ns | 5ns | 9ns, 8.5ns | 10A, 10A | 10A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL, VDE |
|
|
1ED3241MC12HXUMA1DGT ISO 5.7KV 1CH GT DVR DSO8-66 Infineon Technologies |
2,601 | 5.79 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200kV/µs | 110ns, 110ns | 5ns | 9ns, 8.5ns | 18A, 18A | 18A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL, VDE |
|
1EDI20H12AHXUMA1DIGITAL ISO 1CH GATE DVR DSO8-59 Infineon Technologies |
1,129 | 3.06 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDC20H12AHXUMA1DGT ISO 2.5KV 1CH GT DVR DSO8-59 Infineon Technologies |
1,600 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | - | - | - | 10ns, 9ns | - | - | - | - | 3.1V ~ 17V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDI40I12AHXUMA1DIGITAL ISO 1CH GATE DVR DSO8-59 Infineon Technologies |
4,147 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
1EDI3031ASXUMA1DGT ISO 5.7KV 1CH GT DVR DSO20 Infineon Technologies |
4,090 | 7.28 |
|
Datasheet |
EiceDRIVER™ | 20-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 150kV/µs | 120ns, 120ns | 20ns | 55ns, 45ns (Max) | 20A, 20A | 12A | - | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-20-91 | UL, VDE |
|
|
1ED3860MC12MXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 Infineon Technologies |
1,898 | 7.98 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200V/ns | 270ns, 262ns | - | 15ns, 15ns | 6A, 6A | 6A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
