Force Sensors, Load Cells - Industrial
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Operating Force | Output | Sensor Type | Accuracy | Voltage - Supply | Actuator Type | Actuator Style/Size | Includes | Operating Temperature | Compensated Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SEN-13329LOAD CELL - 10KG STRAIGHT BAR TA |
486 | 9.69 |
|
- |
10.00kgf (22lbs) | Resistive | Load Cell | ±0.05% | - | 5V ~ 10V | Diaphragm | - | Sensor | -10°C ~ 55°C | |
|
SEN-14727MINI LOAD CELL 100G STRAIGHT BAR |
273 | 11.25 |
|
- |
0.10kgf (0.220lbs) | Analog Voltage | Load Cell | ±0.05% | - | 6V | - | - | Sensor | -10°C ~ 40°C | |
|
SEN-14728MINI LOAD CELL 500G STRAIGHT BAR |
203 | 12.50 |
|
- |
0.50kgf (1.10lbs) | Analog Voltage | Load Cell | ±0.05% | - | 6V | - | - | Sensor | -10°C ~ 40°C | |
|
SEN-14729LOAD CELL 5KG STRAIGHT BAR TAL22 |
763 | 13.12 |
|
- |
5.00kgf (11lbs) | Analog Voltage | Load Cell | ±0.05% | - | 3V ~ 10V | - | - | Sensor | -10°C ~ 55°C | |
|
FX1901-0001-0200-LSENSOR TENSE LOAD CELL |
109 | 40.15 |
|
- |
90.72kgf (200lbs) | Voltage | Load Cell | ±1% | - | 5V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
FC2231-0000-0025-LSENSOR FORCE LOAD CELL 25LBS |
402 | 100.92 |
|
- |
11.34kgf (25lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Sensor | -40°C ~ 85°C | |
|
|
FC2231-0000-0050-LSENSOR FORCE LOAD CELL 50LBS |
2,237 | 100.92 |
|
- |
22.68kgf (50lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Sensor | -40°C ~ 85°C | |
|
|
FC2231-0000-0100-LSENSOR FORCE LOAD CELL 100LBS |
3,081 | 100.92 |
|
- |
45.36kgf (100lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Sensor | -40°C ~ 85°C | |
|
|
FC2231-0000-0010-LSENSOR FORCE LOAD CELL 10LBS |
391 | 100.92 |
|
- |
4.54kgf (10lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Sensor | -40°C ~ 85°C | |
|

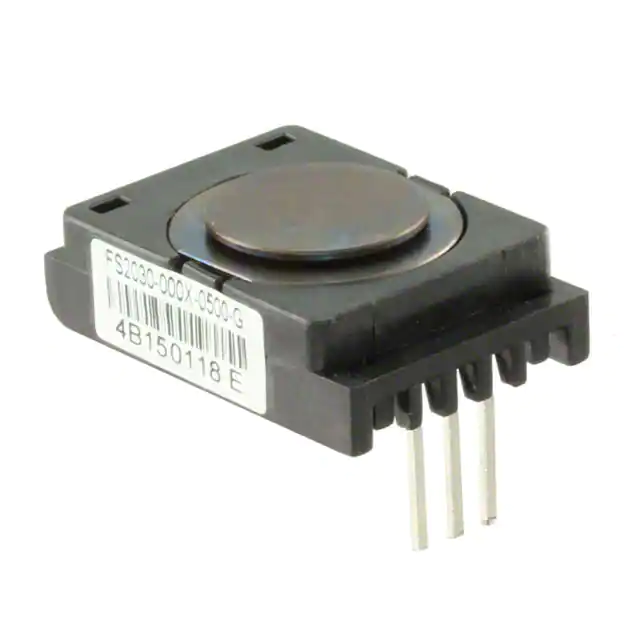

FS2030-000X-0500-GSENSOR FORCE LOAD CELL |
482 | 135.65 |
|
- |
226.80kgf (500lbs) | Voltage | Load Cell | ±1% | 0°C ~ 50°C | 3.3V ~ 12V | Button | - | Sensor | 0°C ~ 70°C | |
|
FS2050-0000-1500-GSENSOR FORCE LOAD CELL 3.3LBS |
1,966 | 149.93 |
|
- |
1.5kgf (3.3lbs) | 1 V ~ 4 V | Load Cell | ±1% | 0°C ~ 50°C | 3.3V ~ 12V | Plunger | Round, 12.2mm | Sensor | 0°C ~ 70°C | |
|

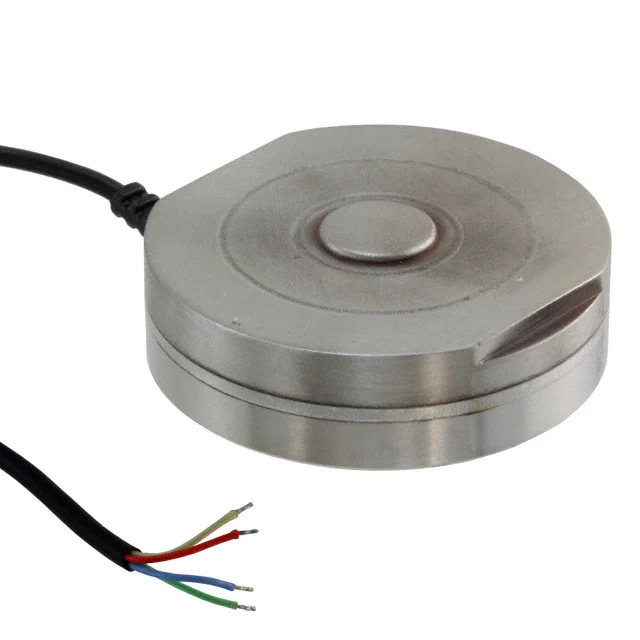

FC2311-0000-0500-LSENSOR FORCE LOAD CELL 500LBS |
1,968 | 166.30 |
|
- |
226.80kgf (500lbs) | 100mV | Load Cell | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Sensor | -40°C ~ 85°C | |
|
FC2331-0000-1000-LFC23 AMPLIFIED 2FT CABLE 1000L |
2,458 | 166.30 |
|
- |
453.59kgf (1000lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Sensor | -40°C ~ 85°C | |
|
|
FX29K0-100A-0100-L100LBF COMPRESSION LOAD CELL, I2 |
106 | 40.82 |
|
- |
50.00kgf (110lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FS1901-0000-0500-G500 GRAM FORCE 20MV/V FORCE LOAD |
383 | 56.77 |
|
- |
500gf | Analog, Ratiometric | Load Cell | ±1% | - | 2V ~ 10V | Button | Round, 2.7mm | - | 0°C ~ 40°C | |
|

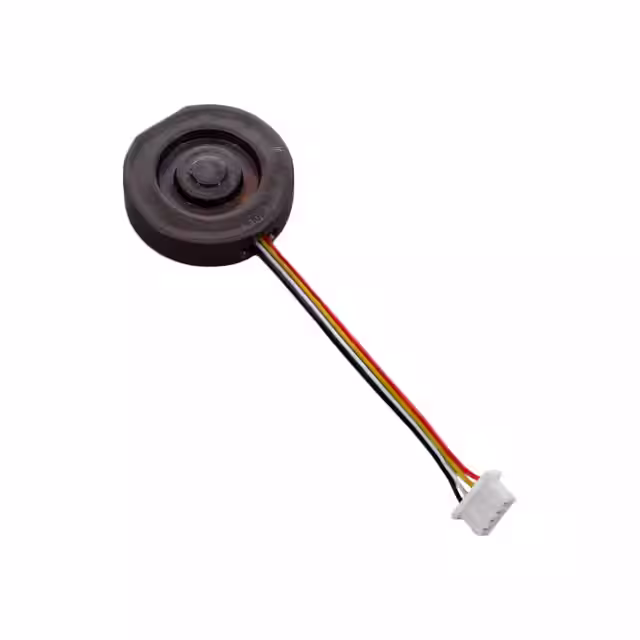

FX293X-040B-0010-LFORCE SENSOR |
1,490 | 82.01 |
|
- |
5.00kgf (11lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FSS005WNGBSENSOR FORCE SURF MOUNT 1.124LBS |
131 | 87.96 |
|
- |
0 ~ 5N | Analog, Ratiometric | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C | |
|
|
FS1901-0000-1000-G1000 GRAM FORCE 20MV/V FORCE LOA |
1,701 | 0.00 |
|
- |
500gf | Analog, Ratiometric | Load Cell | ±1% | - | 2V ~ 10V | Button | Round, 2.7mm | - | 0°C ~ 40°C | |
|
|
FSS020WNSBSENSOR FORCE SURF MOUNT 0-20N |
2,631 | 94.23 |
|
- |
0 ~ 20N | Analog, Ratiometric | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | - | Sensor | -40°C ~ 85°C | |
|
|
FSS005WNSBSENSOR FORCE SURF MOUNT 1.124LBS |
1,528 | 87.96 |
|
- |
0 ~ 5N | Analog, Ratiometric | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C |
