Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV32T-3R3J-PFFIXED IND 3.3UH 260MA 1.2OHM SMD |
385,443 | 0.25 |
|
Datasheet |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

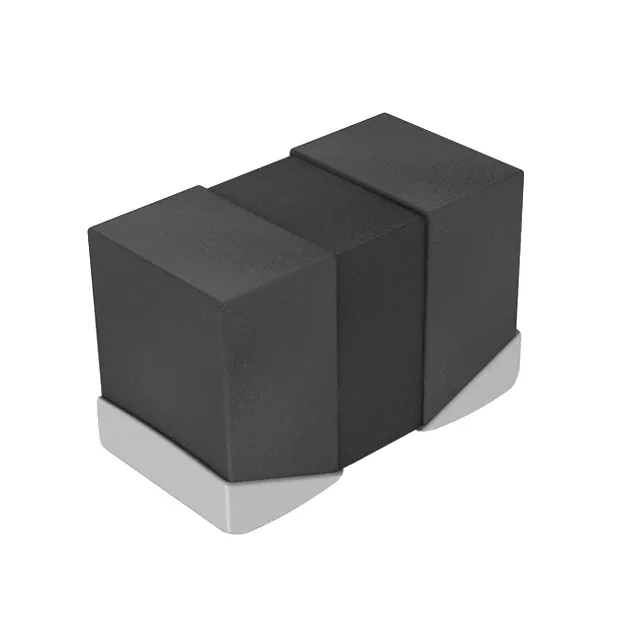

MBKK2012T1R0MFIXED IND 1UH 1.45A 106 MOHM SMD |
183,232 | 0.23 |
|
Datasheet |
MCOIL™, MB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.45 A | 1.5A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
MLZ2012M6R8HT000FIXED IND 6.8UH 350MA 400MOHM SM |
106,348 | 0.14 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 350 mA | 220mA | Shielded | 400mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-2,00mm.jpg)
|
LB2518T102KFIXED IND 1MH 15MA 24 OHM SMD |
86,340 | 0.15 |
|
Datasheet |
LB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 15 mA | - | Unshielded | 24Ohm | - | 2.4MHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
MLZ2012M4R7HT000FIXED IND 4.7UH 400MA 340MOHM SM |
58,418 | 0.14 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 400 mA | 300mA | Shielded | 340mOhm | - | 60MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-0,95mm.jpg)
|
LBMF1608T470KFIXED IND 47UH 35MA 2.5 OHM SMD |
44,358 | 0.24 |
|
Datasheet |
LB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 35 mA | - | Unshielded | 2.5Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MLG1005S1N8BT000FIXED IND 1.8NH 900MA 150MOHM SM |
42,825 | 0.14 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.8 nH | ±0.1nH | 900 mA | - | Unshielded | 150mOhm Max | 7 @ 100MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LB2518T471KFIXED IND 470UH 25MA 10 OHM SMD |
42,437 | 0.15 |
|
Datasheet |
LB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | 25 mA | - | Unshielded | 10Ohm | - | 3.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
LQW15AN4N7D00DFIXED IND 4.7NH 750MA 0.07OHM SM |
28,095 | 0.16 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.7 nH | ±0.5nH | 750 mA | - | Unshielded | 70mOhm Max | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
LQG15WH15NH02DFIXED IND 15NH 400MA 0.28OHM SMD |
27,444 | 0.16 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 15 nH | ±3% | 400 mA | - | Unshielded | 280mOhm Max | - | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
LQP03HQ22NJ02DFIXED IND 22NH 250MA 820MOHM SMD |
26,920 | 0.15 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 22 nH | ±5% | 250 mA | - | Unshielded | 820mOhm Max | 20 @ 500MHz | 3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LBR2518T100KFIXED IND 10UH 235MA 190MOHM SMD |
26,324 | 0.15 |
|
Datasheet |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 235 mA | - | Unshielded | 190mOhm | - | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
NLV32T-221J-EFFIXED IND 220UH 50MA 21 OHM SMD |
22,432 | 0.25 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 50 mA | - | Unshielded | 21Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
MLZ2012M100HT000FIXED IND 10UH 300MA 680MOHM SMD |
20,919 | 0.14 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 200mA | Shielded | 680mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLF1005VR27JT000FIXED IND 270NH 150MA 910MOHM SM |
20,565 | 0.25 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±5% | 150 mA | - | Shielded | 910mOhm Max | 15 @ 25MHz | 260MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S1N0BTD25FIXED IND 1NH 1A 100 MOHM SMD |
19,929 | 0.18 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1 nH | ±0.1nH | 1 A | - | Unshielded | 100mOhm Max | 7 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLZ1608A1R0MT000FIXED IND 1UH 600MA 150 MOHM SMD |
19,880 | 0.13 |
|
Datasheet |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 1 µH | ±20% | 600 mA | 190mA | Shielded | 150mOhm | - | 120MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQP03HQ10NJ02DFIXED IND 10NH 300MA 400MOHM SMD |
18,595 | 0.15 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 10 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 20 @ 500MHz | 4.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LB2518T221KFIXED IND 220UH 40MA 4.5 OHM SMD |
18,251 | 0.15 |
|
Datasheet |
LB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 40 mA | - | Unshielded | 4.5Ohm | - | 5.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LQP03HQ2N5C02DFIXED IND 2.5NH 600MA 120MOHM SM |
17,443 | 0.15 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 2.5 nH | ±0.2nH | 600 mA | - | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
