Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTC220LL-471L-RC470UH 30% HRZMNT TOROIDAL CHOKE |
1,841 | 3.75 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 470 µH | ±15% | 3.7 A | - | Unshielded | 92mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
VTC220LL-102L-RC1000UH30% VRTMNT TOROIDAL CHOKE |
4,910 | 3.75 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 2.4 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia x 0.550" L (27.94mm x 13.97mm) | - |
|
PCS124-101M-RC100UH 20% POWER CHIP SHIELDED |
2,029 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.2 A | - | Shielded | 308mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
PCSDR74-220M-RC22uH +/-20% Power Chip Inductor |
2,413 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.752 A | 2.13A | Shielded | 111mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PCSDR74-101M-RC100uH +/-20% Power Chip Inductor |
4,980 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 861 mA | 986mA | Shielded | 459.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PCSDR74-471M-RC470uH +/-20% Power Chip Inductor |
4,662 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 404 mA | 461mA | Shielded | 2.088Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PCSDR74-680M-RC68uH +/-20% Power Chip Inductor |
3,368 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.035 A | 1.19A | Shielded | 318mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
PCSDR127-271M-RC270uH +/-20% Power Chip Inductor |
1,857 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 1.214 A | 2.2A | Shielded | 508mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PCSDR127-220M-RC22uH +/-20% Power Chip Inductor |
2,183 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.997 A | 7.57A | Shielded | 46.9mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PCSDR127-270M-RC27uH +/-20% Power Chip Inductor |
4,342 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.596 A | 6.83A | Shielded | 58mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PCSDR127-221M-RC220uH +/-20% Power Chip Inductor |
2,160 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 1.289 A | 2.43A | Shielded | 451.2mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
PCFV52-220M-RC22uH +/-20% SMD Power Chip Ind. |
4,776 | 0.98 |
|
Datasheet |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | 1.08A | Shielded | 265mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
PCFV52-100M-RC10uH +/-20% SMD Power Chip Ind. |
4,401 | 0.98 |
|
Datasheet |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.44 A | 1.62A | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

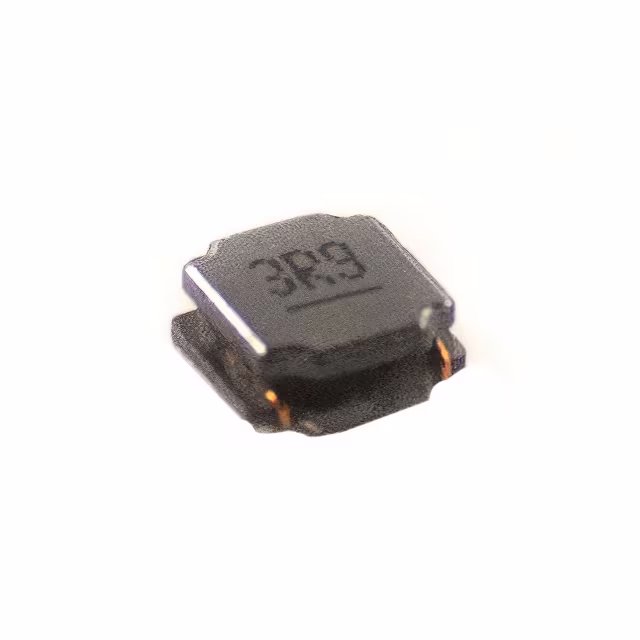

PCFV52-3R9M-AU3.9uH +/-20% SMD Power Chip Ind |
2,678 | 0.98 |
|
Datasheet |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
PCFV52-4R7M-RC4.7uH +/-20% SMD Power Chip Ind |
3,188 | 0.98 |
|
Datasheet |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.98 A | 2.43A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

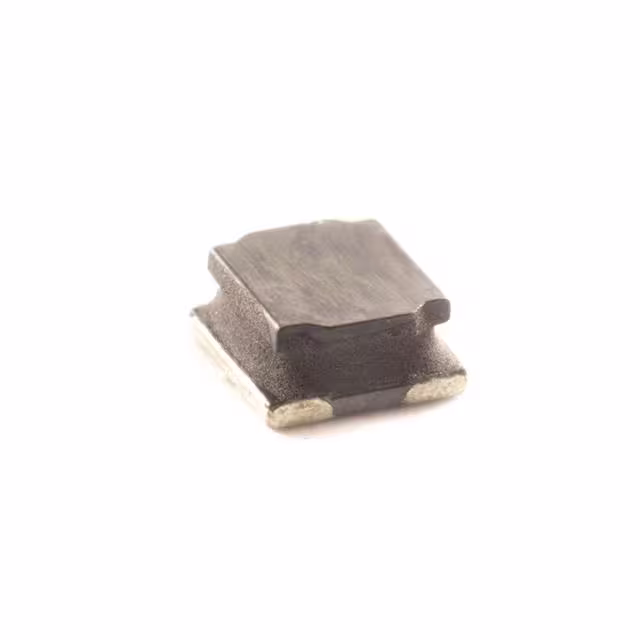

PCHP32-6R8M-RC6.8uH +/-20% SMD Shielded Power |
2,905 | 0.98 |
|
Datasheet |
PCHP32 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1 A | 1A | Shielded | 160mOhm | - | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

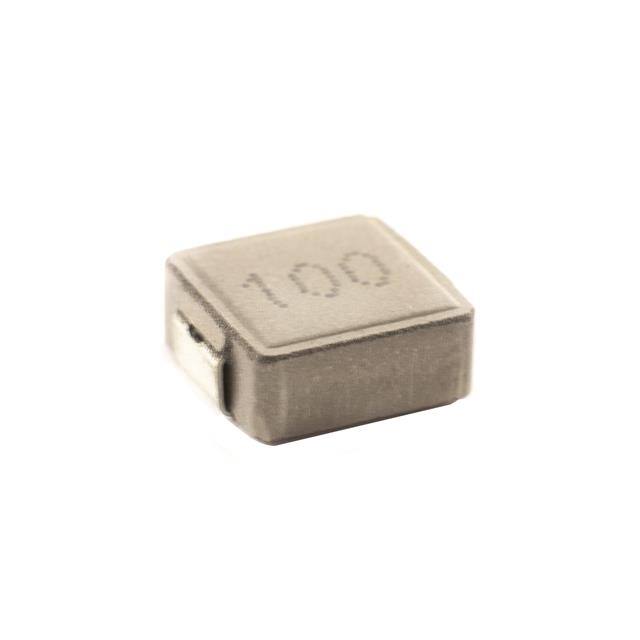

PCHC63A-100M-RC100uH +/-20% Power Inductor |
3,963 | 0.98 |
|
Datasheet |
PCHC63A | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4 A | 3.5A | Shielded | 71.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

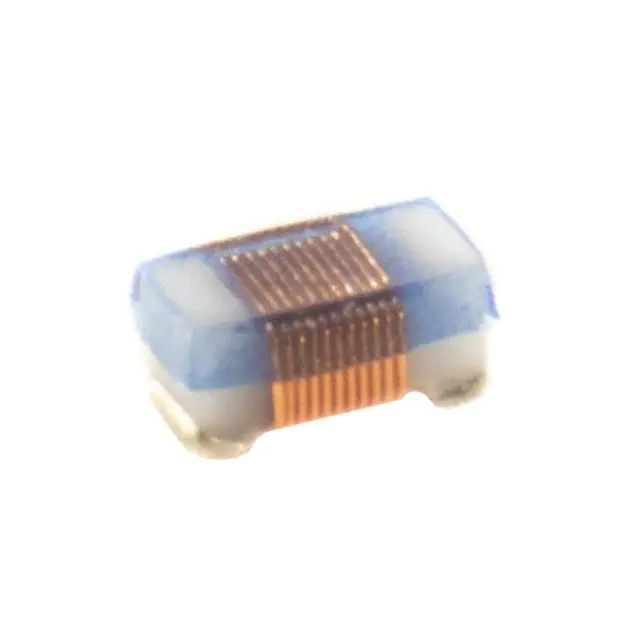

CHQ02-1N0J-RC1.0nH +/-5% Ceramic Core Chip In |
2,099 | 0.98 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 nH | ±5% | 2.3 A | - | Unshielded | 30mOhm Max | 46 @ 900MHz | 16GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CHQ02-6N8-RC6.8nH +/-2% Ceramic Core Chip In |
1,607 | 0.98 |
|
Datasheet |
- | 0402 (1005 Metric) | Bag | Active | Wirewound | Ceramic | 6.8 nH | ±2% | 1.5 A | - | Unshielded | 65mOhm Max | 68 @ 900MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

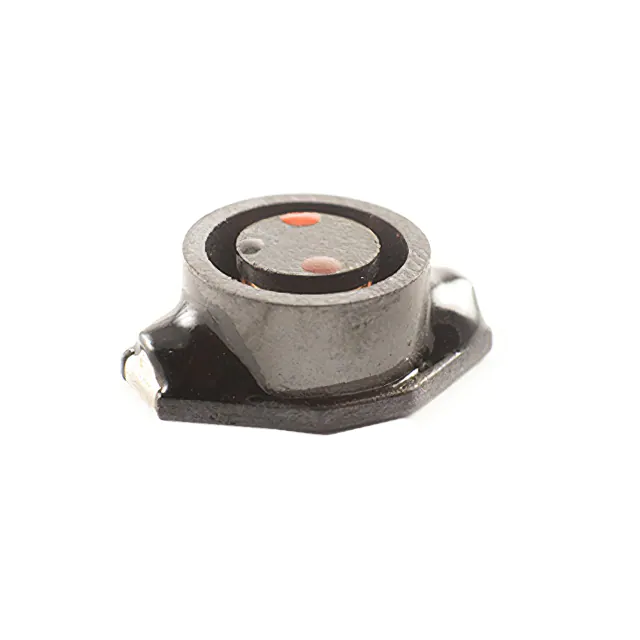

PCIS40-330M-RC22uH +/-20% Power Chip Inductor |
4,736 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.1 A | 1.4A | Shielded | 334mOhm Max | 20 @ 100kHz | 12MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
