Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0603CDR10KTTFIXED IND 100NH 400MA 580MOHM SM Pulse Electronics |
2,485 | 0.00 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±10% | 400 mA | - | Unshielded | 580mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|

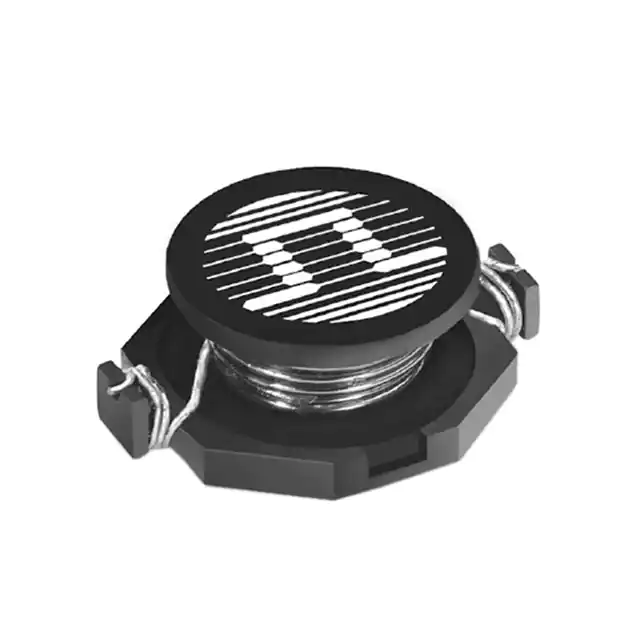

P0752.684NLFIXED IND 680UH 400MA 2.17OHM SM Pulse Electronics |
4,412 | 0.00 |
|
Datasheet |
P0752NL | Nonstandard | Tray | Active | Wirewound | - | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.17Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

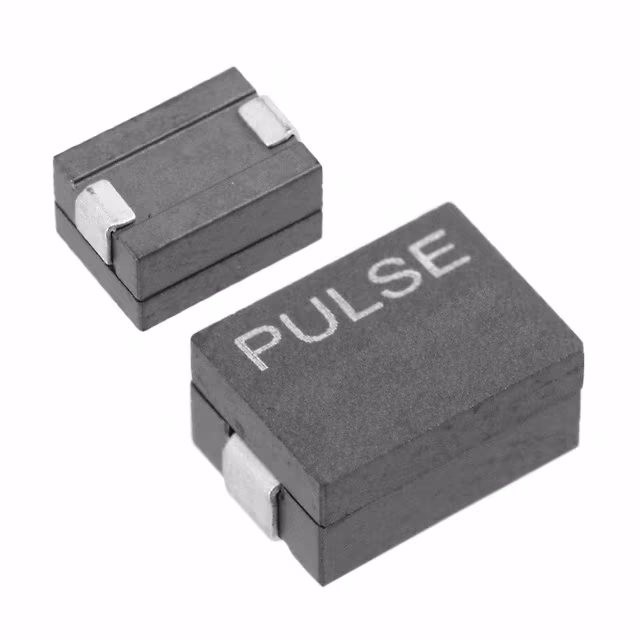

PA0511.221NLFIXED IND 220NH 25A 0.39MOHM SMD Pulse Electronics |
1,233 | 0.00 |
|
Datasheet |
PA0511NL | Nonstandard | Tray | Active | - | - | 220 nH | ±20% | 25 A | 33A | Shielded | 0.39mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|

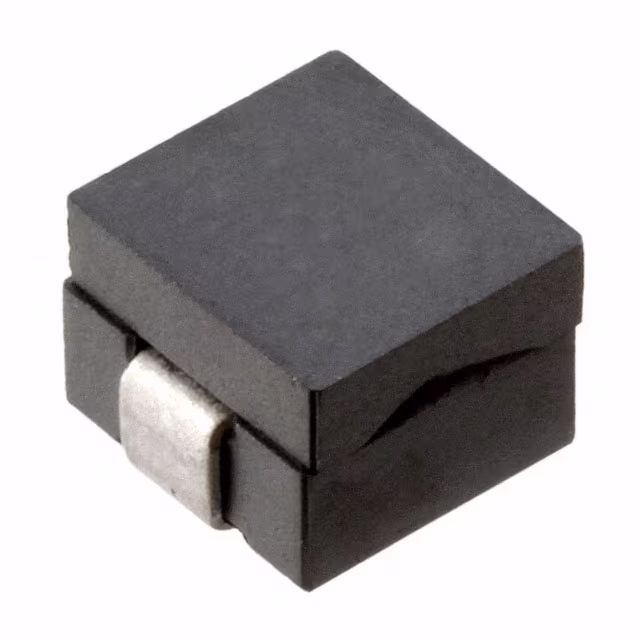

PA0512.101NLFIXED IND 105NH 31A 0.32MOHM SMD Pulse Electronics |
3,931 | 0.00 |
|
Datasheet |
PA0512NL | Nonstandard | Tray | Obsolete | - | - | 105 nH | ±20% | 31 A | 46A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
PA0512.151NLFIXED IND 150NH 24A 0.32MOHM SMD Pulse Electronics |
2,957 | 0.00 |
|
Datasheet |
PA0512NL | Nonstandard | Tray | Obsolete | - | - | 150 nH | ±20% | 24 A | 30A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
PA0512.700NLFIXED IND 72NH 31A 0.32 MOHM SMD Pulse Electronics |
1,990 | 0.00 |
|
Datasheet |
PA0512NL | Nonstandard | Tray | Obsolete | - | - | 72 nH | ±20% | 31 A | 58A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
PA0513.321NLFIXED IND 320NH 41A 0.32MOHM SMD Pulse Electronics |
4,082 | 1.95 |
|
Datasheet |
PA0513NL | Nonstandard | Tray | Obsolete | - | - | 320 nH | ±20% | 41 A | 50A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
PA0513.441NLFIXED IND 440NH 30A 0.32MOHM SMD Pulse Electronics |
1,441 | 0.00 |
|
Datasheet |
PA0513NL | Nonstandard | Tray | Obsolete | - | - | 440 nH | ±20% | 30 A | 35A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|

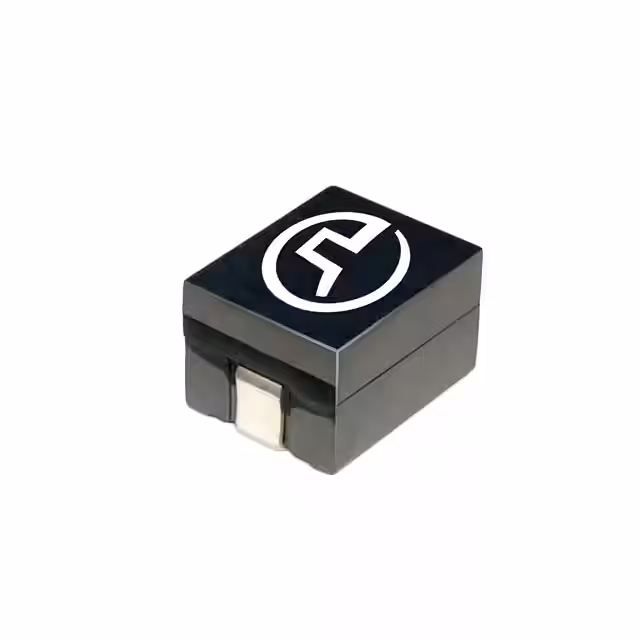

PA1320.171NLFIXED IND 180NH 40A 0.48MOHM SMD Pulse Electronics |
1,957 | 0.00 |
|
Datasheet |
PA1320NL | Nonstandard | Tray | Active | - | - | 180 nH | ±20% | 40 A | 44A | Shielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
PA3288.221HLFIXED IND 220NH 64A 0.29MOHM SMD Pulse Electronics |
4,464 | 0.00 |
|
Datasheet |
PA3288.XXXHL | Nonstandard | Tray | Active | - | - | 220 nH | ±15% | 64 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
