Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLFV32T-220K-EFFIXED IND 22UH 120MA 480MOHM SMD |
3,473 | 0.40 |
|
Datasheet |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 120 mA | - | Shielded | 480mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLCV32T-100K-EFDFIXED IND 10UH 450MA 468MOHM SMD |
3,445 | 0.31 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 468mOhm Max | 15 @ 2.52MHz | 30MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

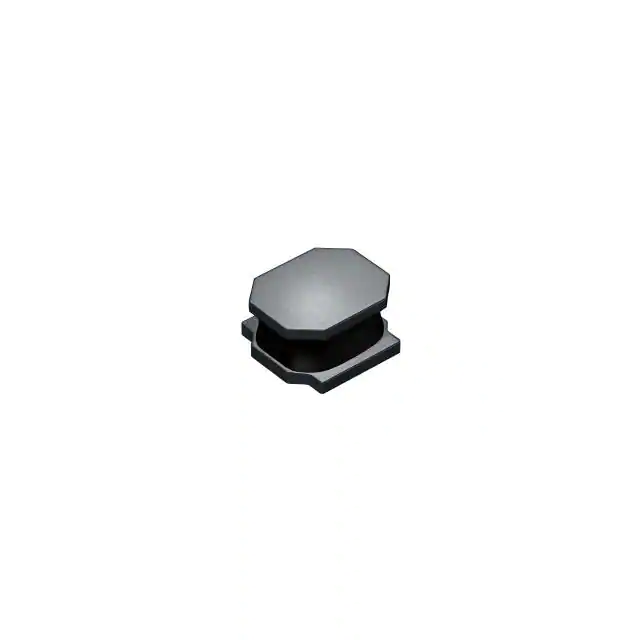

LSXND5050YKL150MMGFIXED IND 15UH 1.8A 104 MOHM SMD |
2,565 | 0.34 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Shielded | 104mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
-Height-1.00mm.jpg)
|
DFE201612P-1R5M=P2FIXED IND 1.5UH 2.7A 95 MOHM SMD |
2,241 | 0.32 |
|
Datasheet |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.7 A | - | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
AOTA-B201610S1R0MTIND 1UH 4.2A 37M |
2,127 | 0.00 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4.2 A | 4.2A | Shielded | 37mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQW2UAS8R2J0CLFIXED IND 8200NH 170MA 1008 5% |
2,071 | 0.09 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 8.2 µH | ±5% | 170 mA | - | Unshielded | 6Ohm Max | 18 @ 2.5MHz | 25MHz | - | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
AOTA-B201208S2R2MTIND 2.2UH 1.8A 130MOHM |
1,928 | 0.00 |
|
Datasheet |
AOTA-B201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.8 A | 1.9A | Shielded | 130mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
AOTA-B201208S1R0MTIND 1UH 3.2A 50MOHM |
1,732 | 0.00 |
|
Datasheet |
AOTA-B201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.2 A | 3.3A | Shielded | 50mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
VLS5045EX-4R7MFIXED IND 4.7UH 3.2A 46.8MOHM SM |
1,367 | 0.44 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.2 A | 4.4A | Shielded | 46.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
VLS3012CX-4R7M-1FIXED IND 4.7UH 1.75A 166MOHM SM |
1,124 | 0.36 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.75 A | 1.31A | Shielded | 166mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AOTA-B252008S4R7MTFIXED IND 4.7UH 1.75A 180MOHM SM |
1,018 | 0.00 |
|
Datasheet |
AOTA-B252008S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.8 A | 1.75A | Shielded | 180mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
L0201R56AHSTR\500FIXED IND 0.56NH 500MA 100 MOHM |
125,918 | 0.23 |
|
Datasheet |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.56 nH | ±0.05nH | 500 mA | - | Unshielded | 100mOhm Max | 9 @ 450MHz | 31GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
NRS5030TR47NMGJFIXED IND 470NH 5A 10 MOHM SMD |
105,776 | 0.35 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 5 A | 9A | Shielded | 10mOhm | - | 185MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
NRS8030T470MJGJFIXED IND 47UH 1.3A 221 MOHM SMD |
62,343 | 0.47 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.1A | Shielded | 221mOhm Max | - | 11MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS5030T6R8MMGJFIXED IND 6.8UH 2.3A 52 MOHM SMD |
38,445 | 0.35 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 2.5A | Shielded | 52mOhm | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
VLS3015ET-4R7MFIXED IND 4.7UH 1A 136 MOHM SMD |
31,227 | 0.40 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1 A | 1A | Shielded | 136mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
NRS5040T3R3NMGJFIXED IND 3.3UH 3.3A 27 MOHM SMD |
29,111 | 0.34 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.3 A | 4A | Shielded | 27mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LQW21HN1R0J00LFIXED IND 1UH 115MA 2.86 OHM SMD |
25,534 | 0.46 |
|
Datasheet |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 115 mA | - | Unshielded | 2.86Ohm Max | 35 @ 100MHz | 450MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
LSXND5050XAT4R7MMGFIXED IND 4.7UH 2.6A 35 MOHM SMD |
19,763 | 0.18 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2.6 A | 3.1A | Shielded | 45.5mOhm Max | - | 31MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
BWVF00303012100M00FIXED IND 10UH 1A 420 MOHM SMD |
18,270 | 0.35 |
|
Datasheet |
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1 A | 1.06A | Shielded | 420mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
