Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN2N2D10DFIXED IND 2.2NH 1.4A 0.018OHM SM |
10,787 | 0.17 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.2 nH | ±0.5nH | 1.4 A | - | Unshielded | 18mOhm Max | 25 @ 250MHz | 18GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQP03HQ3N7B02DFIXED IND 3.7NH 500MA 170MOHM SM |
10,655 | 0.18 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.7 nH | ±0.1nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
CWF1610-220KIND,1.6X1X1MM,22UH10%,0.2A,NON-S |
10,357 | 0.20 |
|
Datasheet |
CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 200 mA | 200mA | Unshielded | 3.61Ohm | 14 @ 2.5MHz | 24MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.043" (1.10mm) |
|
|
LQP03HQ1N8B02DFIXED IND 1.8NH 800MA 80MOHM SMD |
9,994 | 0.18 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.8 nH | ±0.1nH | 800 mA | - | Unshielded | 80mOhm Max | 20 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ1N7B02DFIXED IND 1.7NH 800MA 70MOHM SMD |
9,795 | 0.18 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.7 nH | ±0.1nH | 800 mA | - | Unshielded | 70mOhm Max | 20 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ0N5B02DFIXED IND 0.5NH 1.1A 40 MOHM SMD |
9,458 | 0.18 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.5 nH | ±0.1nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 20GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
-1,45mm.jpg)
|
LBC2012T100MFIXED IND 10UH 200MA 1.2 OHM SMD |
8,976 | 0.19 |
|
Datasheet |
LB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 200 mA | - | Unshielded | 1.2Ohm | - | 40MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQW15AN1N4C10DFIXED IND 1.4NH 1.1A 0.019OHM SM |
7,355 | 0.06 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 1.4 nH | ±0.2nH | 1.1 A | - | Unshielded | 19mOhm Max | 25 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-2,70mm.jpg)
|
LBC3225T4R7MRFIXED IND 4.7UH 680MA 100MOHM SM |
7,224 | 0.19 |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 680 mA | - | Unshielded | 100mOhm | - | 70MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
MLZ2012M3R3HTD25FIXED IND 3.3UH 500MA 200MOHM SM |
6,905 | 0.19 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 500 mA | 350mA | Shielded | 200mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLZ1608N2R2LTD25FIXED IND 2.2UH 500MA 180MOHM SM |
6,712 | 0.21 |
|
Datasheet |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 500 mA | 110mA | Shielded | 180mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

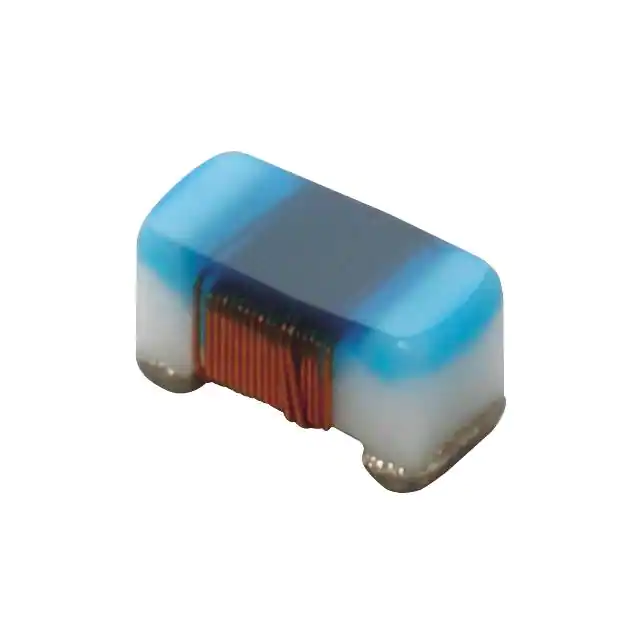

LQW15AN3N3C10DFIXED IND 3.3NH 900MA 0.04OHM SM |
6,595 | 0.19 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.3 nH | ±0.2nH | 900 mA | - | Unshielded | 40mOhm Max | 30 @ 250MHz | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLF2012DR68KT000FIXED IND 680NH 150MA 600MOHM SM |
6,262 | 0.19 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±10% | 150 mA | - | Shielded | 600mOhm Max | 25 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,80mm.jpg)
|
LBM2016T101JFIXED IND 100UH 80MA 8 OHM SMD |
6,009 | 0.19 |
|
Datasheet |
LB, M Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 80 mA | - | Unshielded | 8Ohm | 15 @ 796kHz | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
MLF2012C220KT000FIXED IND 22UH 5MA 900 MOHM SMD |
5,637 | 0.19 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 900mOhm Max | 30 @ 1MHz | 18MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQP03HQ5N0H02DFIXED IND 5.0NH 400MA 0201 3% |
5,328 | 0.06 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 5 nH | ±3% | 400 mA | - | Unshielded | 250mOhm Max | 20 @ 500MHz | 5.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
MLZ2012N150LTD25FIXED IND 15UH 350MA 470MOHM SMD |
5,210 | 0.17 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±20% | 350 mA | 90mA | Shielded | 470mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW18AN33NJ10DFIXED IND 33NH 550MA 0.132OHM SM |
5,140 | 0.17 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 33 nH | ±5% | 550 mA | - | Unshielded | 132mOhm Max | 42 @ 250MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LBC2012T100KFIXED IND 10UH 200MA 1.2 OHM SMD |
4,932 | 0.19 |
|
Datasheet |
LB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 200 mA | - | Unshielded | 1.2Ohm | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW18AN22NJ10DFIXED IND 22NH 640MA 0.099OHM SM |
4,896 | 0.17 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 22 nH | ±5% | 640 mA | - | Unshielded | 99mOhm Max | 42 @ 250MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
