FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTV30N60PSMOSFET N-CH 600V 30A PLUS-220SMD IXYS |
5,618 | 0.00 |
|
Datasheet |
PolarHV™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
IXFV22N50PMOSFET N-CH 500V 22A PLUS220 IXYS |
5,672 | 0.00 |
|
- |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV22N50PSMOSFET N-CH 500V 22A PLUS-220SMD IXYS |
9,508 | 0.00 |
|
- |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
IXFV26N50PMOSFET N-CH 500V 26A PLUS220 IXYS |
4,523 | 0.00 |
|
Datasheet |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV26N50PSMOSFET N-CH 500V 26A PLUS-220SMD IXYS |
8,092 | 0.00 |
|
Datasheet |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|

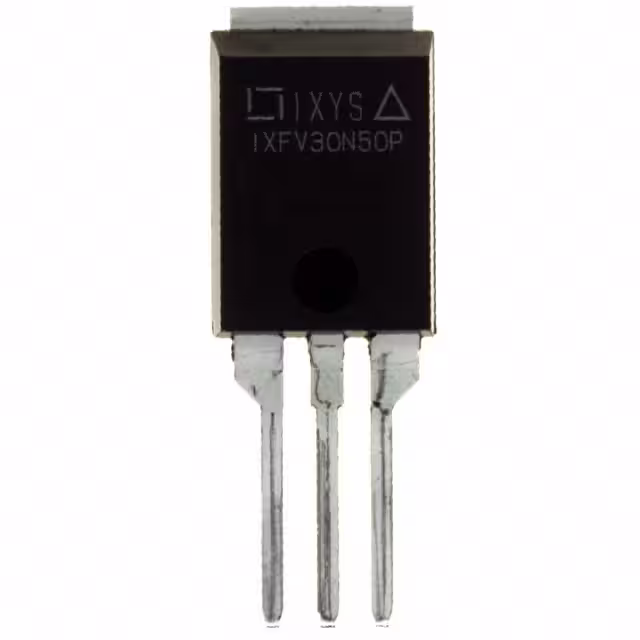

IXFV30N50PMOSFET N-CH 500V 30A PLUS220 IXYS |
8,892 | 0.00 |
|
Datasheet |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV30N50PSMOSFET N-CH 500V 30A PLUS-220SMD IXYS |
2,184 | 0.00 |
|
Datasheet |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV36N50PMOSFET N-CH 500V 36A PLUS220 IXYS |
6,246 | 0.00 |
|
Datasheet |
HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV36N50PSMOSFET N-CH 500V 36A PLUS-220SMD IXYS |
6,678 | 0.00 |
|
Datasheet |
HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV18N60PMOSFET N-CH 600V 18A PLUS220 IXYS |
4,653 | 0.00 |
|
Datasheet |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
