FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFN150N10MOSFET N-CH 100V 150A SOT-227 IXYS |
4,148 | 32.08 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 150A (Tc) | 10V | 12mOhm @ 75A, 10V | 4V @ 8mA | 360 nC @ 10 V | ±20V | 9000 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|

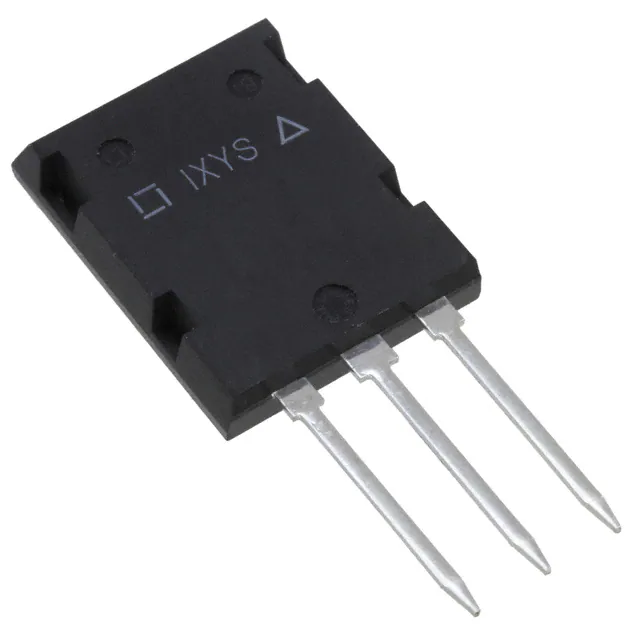

IXFL38N100Q2MOSFET N-CH 1000V 29A ISOPLUS264 IXYS |
8,408 | 0.00 |
|
Datasheet |
HiPerFET™, Q2 Class | TO-264-3, TO-264AA | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 1000 V | 29A (Tc) | 10V | 280mOhm @ 19A, 10V | 5.5V @ 8mA | 250 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS264™ |
|
|
IXFN130N30MOSFET N-CH 300V 130A SOT-227B IXYS |
7,128 | 42.43 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 130A (Tc) | 10V | 22mOhm @ 500mA, 10V | 4V @ 8mA | 380 nC @ 10 V | ±20V | 14500 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN80N48MOSFET N-CH 480V 80A SOT-227B IXYS |
8,418 | 0.00 |
|
- |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 480 V | 80A (Tc) | 10V | 45mOhm @ 500mA, 10V | 4V @ 8mA | 380 nC @ 10 V | ±20V | 9890 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN200N07MOSFET N-CH 70V 200A SOT-227B IXYS |
2,704 | 0.00 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 70 V | 200A (Tc) | 10V | 6mOhm @ 500mA, 10V | 4V @ 8mA | 480 nC @ 10 V | ±20V | 9000 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN34N100MOSFET N-CH 1000V 34A SOT-227B IXYS |
6,036 | 0.00 |
|
- |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 34A (Tc) | 10V | 280mOhm @ 500mA, 10V | 5.5V @ 8mA | 380 nC @ 10 V | ±20V | 9200 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN60N60MOSFET N-CH 600V 60A SOT-227B IXYS |
8,995 | 0.00 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 60A (Tc) | 10V | 75mOhm @ 500mA, 10V | 4.5V @ 8mA | 380 nC @ 10 V | ±20V | 15000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFE36N100MOSFET N-CH 1000V 33A SOT227B IXYS |
3,486 | 0.00 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 33A (Tc) | 10V | 240mOhm @ 18A, 10V | 5.5V @ 8mA | 455 nC @ 10 V | ±20V | 15000 pF @ 25 V | - | 580W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
MMIX1F360N15T2MOSFET N-CH 150V 235A 24SMPD IXYS |
4,165 | 45.83 |
|
Datasheet |
GigaMOS™, TrenchT2™ | 24-PowerSMD, 21 Leads | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 235A (Tc) | 10V | 4.4mOhm @ 100A, 10V | 5V @ 8mA | 715 nC @ 10 V | ±20V | 47500 pF @ 25 V | - | 680W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
|
IXFN38N100Q2MOSFET N-CH 1000V 38A SOT-227 IXYS |
8,280 | 48.34 |
|
Datasheet |
HiPerFET™, Q2 Class | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 38A (Tc) | 10V | 250mOhm @ 19A, 10V | 5V @ 8mA | 250 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
