DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19041022AFAN PATRIOT 48VDC 45.6W 4830RPM |
3,254 | 0.00 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 172mm Dia | 50.80mm | 330.0 CFM (9.24m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 41 W | 4830 RPM | 4 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
|
19040428AFAN PATRIOT DC 48VDC 41W 4830RPM |
4,403 | 0.00 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 332.0 CFM (9.30m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|
|
612UDC TUBEAXIAL FAN |
3,251 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
19040409AFAN GALAXY 24VDC 38.4W 5200RPM |
2,047 | 0.00 |
|
Datasheet |
Galaxy | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 240.0 CFM (6.72m³/min) | 1.410 in H2O (351.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 37 W | 5236 RPM | 4 Wire Leads | - | - | - | 1.4 lbs (635.0 g) |
|
|
19040702AFAN GALAXY 48VDC 38.4W 5200RPM |
3,484 | 0.00 |
|
Datasheet |
Galaxy | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | - | 1.420 in H2O (353.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 37 W | 5236 RPM | 4 Wire Leads | - | - | - | 1.4 lbs (635.0 g) |
|

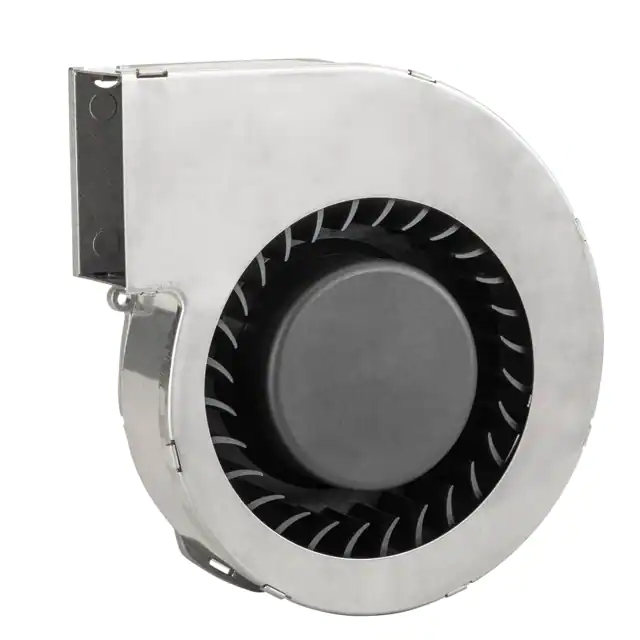

P1232Y24BALB2A-28FAN BLOWER 120X32MM 24VDC WIRE |
2,963 | 47.43 |
|
Datasheet |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 120mm L x 120mm H | 32.00mm | 42.9 CFM (1.22m³/min) | 2.030 in H2O (505.6 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 61.6dB(A) | 18.24 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
9WPA0824G400280X25MM 24V, SPLASH & DUST PROOF |
2,277 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
19039583AFAN 24VDC 171.5X150.4X50.8MM |
3,935 | 0.00 |
|
Datasheet |
Major | - | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 24 W | 3350 RPM | 4 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
|
VG40561BX-000U-A9HThermal Products |
3,843 | 0.00 |
|
Datasheet |
VG | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 25.0 CFM (0.700m³/min) | 6.190 in H2O (1541.9 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 65.0dB(A) | 16.8 W | 25500 RPM Front, 22300 RPM Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
VG40561B1-000U-A9HThermal Products |
2,410 | 0.00 |
|
Datasheet |
VG | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 19.7 CFM (0.552m³/min) | 4.160 in H2O (1036.2 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 62.5dB(A) | 9 W | 20400 RPM Front, 17800 RPM Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
618N/12NFAN AXIAL 60X25.4MM 48VDC WIRE |
3,522 | 56.98 |
|
- |
600N | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 2.1 W | 5100 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.146 lb (66.22 g) |
|
|
9WPA0812G400180X25MM 12V, SPLASH & DUST PROOF |
1,380 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WV0824A1D00180X38MM 24V,SPLASH PROOF DC LCKR |
3,334 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 54.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9LG0624M400260X25MM 24V, HIGH PERF LONG LIFE |
3,530 | 0.00 |
|
Datasheet |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0624H400260X25MM 24V, HIGH PERF LONG LIFE |
2,648 | 0.00 |
|
Datasheet |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0612H400260X25MM 12V, HIGH PERF LONG LIFE |
1,651 | 0.00 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
19041050AFAN 48VDC 171.5X150.4X50.8MM |
3,310 | 0.00 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 285.0 CFM (7.98m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 43 W | 4200 RPM | 3 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
|
19041051AFAN 48VDC 171.5X150.4X50.8MM |
2,598 | 0.00 |
|
- |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 285.0 CFM (7.98m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 43 W | 4200 RPM | 4 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
|
19041054AFAN PATRIOT DC 24VDC 43W 4200RPM |
2,060 | 0.00 |
|
- |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 285.0 CFM (7.98m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 43 W | 4200 RPM | 3 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
|
19041055AFAN PATRIOT DC 24VDC 43W 4200RPM |
1,508 | 0.00 |
|
- |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 285.0 CFM (7.98m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 43 W | 4200 RPM | 4 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
