DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WPA0624S4001160X25MM 24VDC TACH |
3,058 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 35.4 CFM (0.992m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.08 W | 7800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
GFB0812DHU-F00FAN AXIAL DUAL 80X89MM 12VDC |
3,915 | 37.85 |
|
Datasheet |
GFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 89.00mm | 144.6 CFM (4.05m³/min) | 3.800 in H2O (946.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 73.5dB(A) | 58.8 W | 9200 Front, 9480 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|

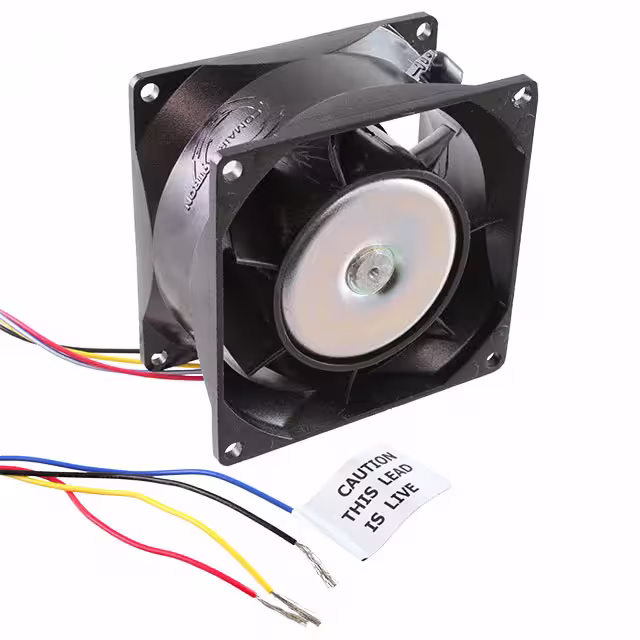

17001140AFAN AXIAL 48VDC SDD48B1E2X-E3 |
1,401 | 53.06 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.78mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.6dB(A) | 3 W | 3500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001143AFAN AXIAL 48VDC SDD48K1E2X-E3 |
2,263 | 53.06 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.78mm | 43.0 CFM (1.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.1dB(A) | 5.2 W | 4200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001146AFAN AXIAL 48VDC SDD48Z1E2X-E3 |
2,111 | 53.06 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.78mm | 50.0 CFM (1.40m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.4dB(A) | 7.5 W | 4900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
TDA1348AEFAN AXIAL 127X38MM 48VDC WIRE |
2,768 | 41.42 |
|
Datasheet |
TDA | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | 1.311 in H2O (326.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.5dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.772 lb (350.17 g) |
|
|
9GV1224H1D01FAN AXIAL 120X38MM 24VDC WIRE |
2,508 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 19.2 W | 5200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224H1D011FAN AXIAL 120X38MM 24VDC WIRE |
3,235 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 19.2 W | 5200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224J1D01FAN AXIAL 120X38MM 24VDC WIRE |
3,652 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 64.0dB(A) | 36 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224J1D011FAN AXIAL 120X38MM 24VDC WIRE |
3,555 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 64.0dB(A) | 36 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224H101FAN AXIAL 120X38MM 24VDC WIRE |
1,819 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 19.2 W | - | 3 Wire Leads | - | - | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224J101FAN AXIAL 120X38MM 24VDC WIRE |
1,432 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 36 W | - | 3 Wire Leads | - | - | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224J1011FAN AXIAL 120X38MM 24VDC WIRE |
4,702 | 43.96 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WPA0412H6002FAN AXIAL 40X20MM 12VDC WIRE |
2,217 | 41.45 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0412G6002FAN AXIAL 40X20MM 12VDC WIRE |
3,978 | 41.45 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0424H6002FAN AXIAL 40X20MM 24VDC WIRE |
4,239 | 41.45 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0424G6002FAN AXIAL 40X20MM 24VDC WIRE |
4,264 | 41.45 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
AFB1512HFAN AXIAL 172X25.4MM 12VDC WIRE |
3,601 | 0.00 |
|
Datasheet |
AFB | - | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 202.5 CFM (5.67m³/min) | 0.467 in H2O (116.3 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 11.76 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
AFB1524LFAN AXIAL 172X25.4MM 24VDC WIRE |
4,215 | 0.00 |
|
Datasheet |
AFB | - | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.44 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
6820PL-05W-B79-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,272 | 0.00 |
|
Datasheet |
6820PL | - | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 63.2dB | 25.9 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
