DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19032835ABLOWER DC 80MM X 32MM 12V FPS |
1,372 | 0.00 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
19040204ABLOWER FAN DC 80MMX32MM 12V FPS |
3,790 | 0.00 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|

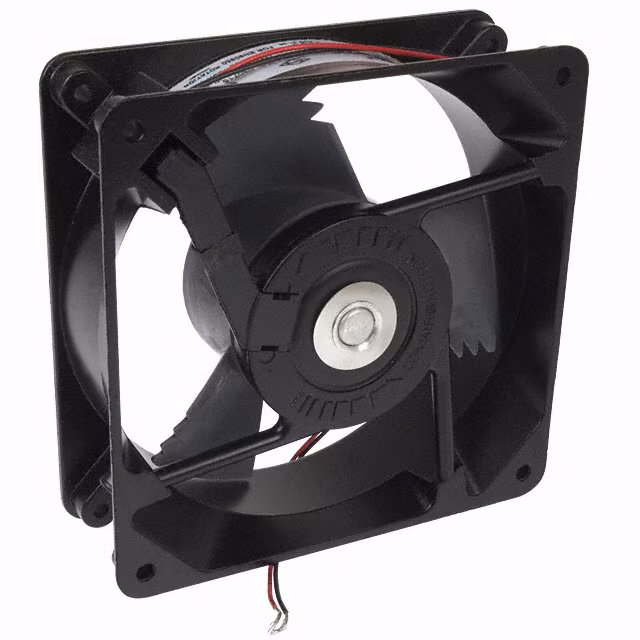

19030725AFAN WHISPER XL 24VDC |
1,833 | 0.00 |
|
Datasheet |
Whisper XL | - | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 57.0 CFM (1.60m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | - | 30.3dB(A) | 1.4 W | 1675 RPM | 2 Wire Leads | - | - | - | 1.4 lbs (635.0 g) |
|
|
PF80384B1-000U-Q9948VDC FAN 80X38MM ALARM/PWM |
4,795 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 2.460 in H2O (612.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 62.6dB(A) | 18.24 W | 10500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384BX-000U-Q9948VDC FAN 80X38MM ALARM/PWM |
1,479 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.350 in H2O (834.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 67.5dB(A) | 33.6 W | 12900 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
19030715AFAN AXIAL 119.1X39.1MM WD12C3 |
4,008 | 0.00 |
|
Datasheet |
Whisper XL | - | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 75.0 CFM (2.10m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 39.4dB(A) | 2.2 W | 2250 RPM | 2 Wire Leads | - | - | - | 1.4 lbs (635.0 g) |
|
|
9CR0612G502FAN AXIAL DUAL 60X51MM 12VDC |
2,602 | 31.78 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 24.7 CFM (0.692m³/min) | 1.810 in H2O (450.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 57.5dB(A) | 13.2 W | 15800 Front, 10600 Rear | 2 Wire Leads per Fan | - | - | - | 0.397 lb (180.08 g) |
|
|
19030717AFAN AXIAL 119.1X39.1MM WD24C3 |
3,989 | 0.00 |
|
Datasheet |
Whisper XL | - | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 75.0 CFM (2.10m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 39.4dB(A) | 2.4 W | 2250 RPM | 2 Wire Leads | - | - | - | 1.4 lbs (635.0 g) |
|

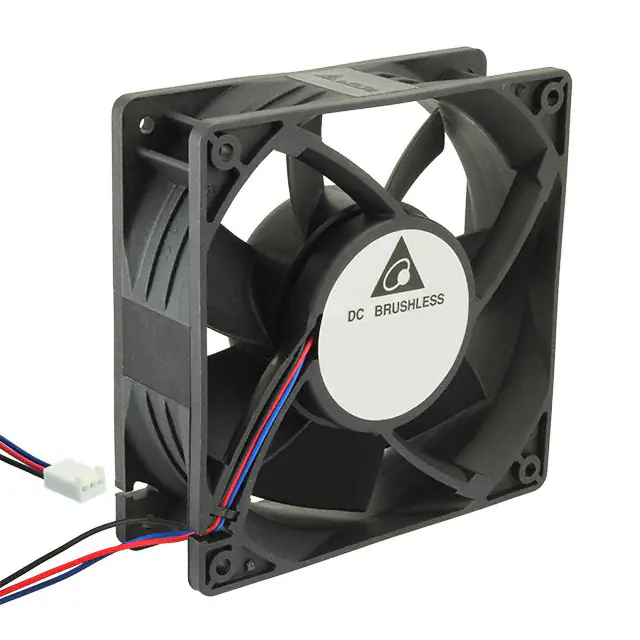

1-NPT/603-1340FAN AXL 120X38MM 12VDC RECT CONN |
4,688 | 35.61 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 8.16 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
|
DC0405612U2B-3T1FAN 40X56MM 12VDC TACH COMPUTER |
3,138 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 20.64 W | 21000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
GE92252B2-000U-AE9FAN AXIAL 92X25MM 24VDC WIRE |
2,724 | 24.99 |
|
Datasheet |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.32 W | 4200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.253 lb (114.76 g) |
|
|
GE92252B3-000U-AE9FAN AXIAL 92X25MM 24VDC WIRE |
3,204 | 24.99 |
|
Datasheet |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 3.72 W | 3900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.253 lb (114.76 g) |
|
|
9CR0612H501FAN AXIAL DUAL 60X51MM 12VDC |
2,852 | 32.21 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | CSA, TUV, UL | - |
|
|
9CR0612G501FAN AXIAL DUAL 60X51MM 12VDC |
3,649 | 32.21 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 71.7 CFM (2.01m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 68.0dB(A) | 32.4 W | 11500 Front, 9000 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
712F/2-003DC TUBEAXIAL FAN |
4,689 | 0.00 |
|
- |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 25.3 CFM (0.708m³/min) | 0.289 in H2O (72.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.0dB(A) | 1.7 W | 5300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
GE80252B2-000U-AE9FAN 80X25MM 24VDC IP68 57CFM |
3,497 | 24.99 |
|
Datasheet |
GE | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GE80252B3-000U-AE9FAN 80X25MM 24VDC IP68 53CFM |
2,419 | 24.99 |
|
Datasheet |
GE | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

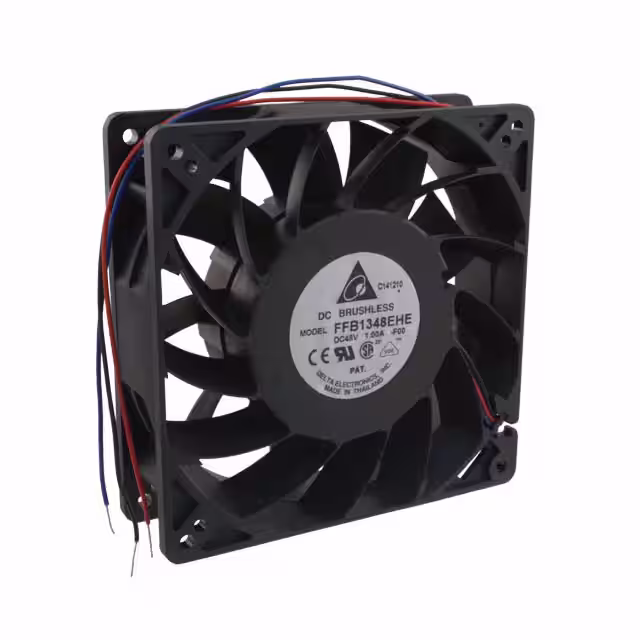

FFB1348EHE-F00FAN AXIAL 127X38MM 48VDC WIRE |
4,605 | 0.00 |
|
Datasheet |
FFB | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.5dB(A) | 32.16 W | 3850 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
4292FAN AXIAL 119X38MM 12VDC TERM |
2,769 | 16.69 |
|
Datasheet |
4200 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 4.3 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.63 lb (285.76 g) |
|
|
4294FAN AXIAL 119X38MM 24VDC TERM |
3,029 | 0.75 |
|
Datasheet |
4200 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 4.3 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.63 lb (285.76 g) |
