DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD127-48HBXC02AFAN AXIAL 127X38.5MM 48VDC WIRE |
1,654 | 25.86 |
|
Datasheet |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 226.0 CFM (6.33m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 65.0dB | - | 4500 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-48HBXC10AFAN AXIAL 127X38.5MM 48VDC WIRE |
3,042 | 25.86 |
|
Datasheet |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 226.0 CFM (6.33m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB | - | 4500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-48HBXC5FAN AXIAL 127X38.5MM 48VDC WIRE |
1,250 | 25.86 |
|
Datasheet |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 226.0 CFM (6.33m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 65.0dB | - | 4500 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
BFB1212VH-TA50FAN BLOWER 120X32MM 12VDC WIRE |
4,126 | 25.66 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 42.5 CFM (1.19m³/min) | 1.850 in H2O (460.8 Pa) | Ball | Blower | Locked Rotor Protection | 57.0dB(A) | 17.64 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
GF80382B1-1000U-ADPFAN AXIAL 24V 80X38MM GR487 |
3,881 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GF80382B1-1000U-AEPFAN AXIAL 24V 80X38MM IP68 |
2,025 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GF80382BX-1000U-ADPFAN AXIAL 24V 80X38MM GR487 |
1,482 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GF80382BX-1000U-AEPFAN AXIAL 24V 80X38MM IP68 |
4,335 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4312NGLFAN AXIAL 119X32MM 12VDC WIRE |
4,230 | 0.00 |
|
Datasheet |
4300N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 55.0 CFM (1.54m³/min) | - | Sintec | Tubeaxial | - | 27.0dB(A) | 1.2 W | 1650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4312NGNFAN AXIAL 119X32MM 12VDC WIRE |
3,145 | 0.00 |
|
Datasheet |
4300N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 98.0 CFM (2.74m³/min) | - | Sintec | Tubeaxial | - | 43.0dB(A) | 4 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4314NGLFAN AXIAL 119X32MM 24VDC WIRE |
2,035 | 0.00 |
|
Datasheet |
4300N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 55.0 CFM (1.54m³/min) | - | Sintec | Tubeaxial | - | 27.0dB(A) | 1.2 W | 1650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4314NGMFAN AXIAL 119X32MM 24VDC WIRE |
3,743 | 0.00 |
|
Datasheet |
4300N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 81.0 CFM (2.27m³/min) | - | Sintec | Tubeaxial | - | 37.0dB(A) | 2.6 W | 2450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4314NGNFAN AXIAL 119X32MM 24VDC WIRE |
3,610 | 0.00 |
|
Datasheet |
4300N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 98.0 CFM (2.74m³/min) | - | Sintec | Tubeaxial | - | 43.0dB(A) | 4.3 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
8374FAN AXIAL 80X32MM 24VDC TERM |
1,819 | 0.95 |
|
Datasheet |
8300 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.5 W | - | 2 Terminals | - | - | - | 0.38 lb (172.37 g) |
|
|
9GA0824S2002FAN AXIAL 80X32MM 24VDC WIRE |
1,268 | 26.51 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 10.1 W | 9700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GV0824G101FAN AXIAL 80X38MM 24VDC WIRE |
3,884 | 25.69 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 38.4 W | - | 3 Wire Leads | - | - | CSA, TUV, UL | 0.485 lb (220.00 g) |
|

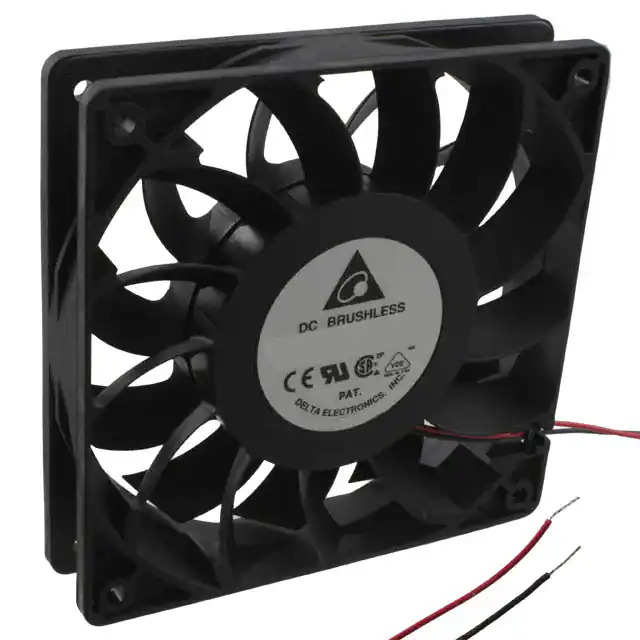

FFB1212EH-TZUJFAN AXIAL 120X25.4MM 12VDC WIRE |
2,615 | 19.85 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.4dB(A) | 17.4 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
ODB5009-12HBFAN BLOWER 50X9MM 12VDC WIRE |
4,424 | 24.13 |
|
Datasheet |
ODB5009 | Box | Active | 12VDC | Square - 50mm L x 50mm H | 9.00mm | 3.0 CFM (0.084m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Blower | Auto Restart | 34.0dB(A) | 700 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | - |
|
|
AFB1224GHEYNUFAN AXIAL 120X38MM 24VDC WIRE |
1,275 | 24.74 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 31.2 W | 5200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
CFM-A238BF-280-680FAN AXIAL 120X38MM 24VDC WIRE |
4,104 | 27.14 |
|
Datasheet |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 263.3 CFM (7.37m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Auto Restart | 68.1dB(A) | 70.56 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
