DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0602524V2B-3T1FAN 60X25MM 24VDC TACH COMPUTER |
1,075 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 11.52 W | 7500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9G0612H4D001FAN AXIAL 60X25MM 12VDC WIRE |
3,510 | 19.50 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 6 W | 9500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0612H40011FAN AXIAL 60X25MM 12VDC WIRE |
1,323 | 19.50 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 6 W | 9500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0612S4001FAN AXIAL 60X25MM 12VDC WIRE |
3,088 | 19.50 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0612H4D001160X25MM 12V,HIGH PERF.,LOW POWER |
2,471 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
MR1238E24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
2,093 | 21.06 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 67.9dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238E48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
2,052 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 67.9dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238E48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
2,982 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 67.9dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238H24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
3,754 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 64.6dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238H24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
4,826 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 64.6dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238H48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
3,866 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 64.6dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238L24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
3,853 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.5dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238L24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
2,666 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.5dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238L48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
4,774 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.5dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238L48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
2,871 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.5dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238M24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
3,034 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.7dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238M24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
1,558 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 61.7dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238M48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
1,690 | 21.06 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.7dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
MR1238M48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
2,775 | 19.92 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 61.7dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|

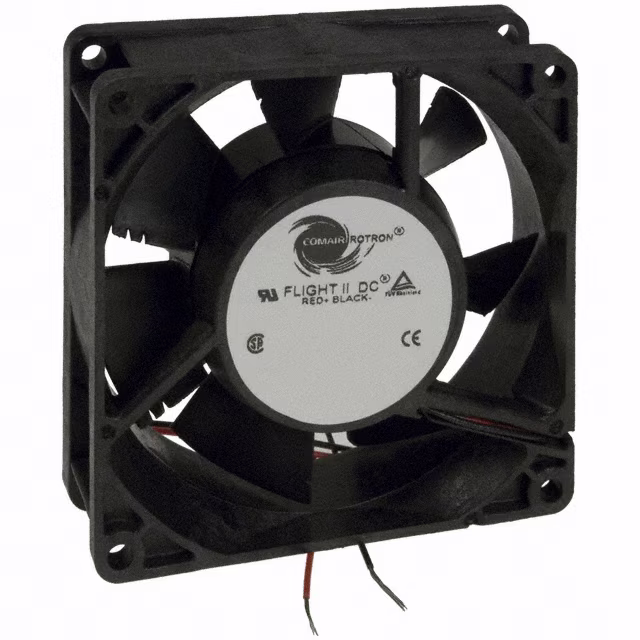

19031168AFAN AXIAL 92X25.4MM 12VDC FN12B3 |
3,804 | 0.00 |
|
Datasheet |
Flight II 90 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | - | 38.1dB(A) | 2.4 W | 2784 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
