DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1203812L2B-3T3FAN 120X38MM 12VDC TACH MOLEX 22 |
1,986 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0603824I2B-BT4FAN 60X38MM 24VDC PWM/TACH MOLEX |
1,810 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 12.48 W | 8000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603824J2B-BT4FAN 60X38MM 24VDC PWM/TACH MOLEX |
2,091 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 16.32 W | 9000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603824L2B-BT4FAN 60X38MM 24VDC PWM/TACH MOLEX |
4,028 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 24 W | 10000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9GA0624J101FAN AXIAL 60X38MM 24VDC WIRE |
4,868 | 20.14 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GA0624J1011FAN AXIAL 60X38MM 24VDC WIRE |
3,256 | 20.14 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GA0624P1K031FAN AXIAL 60X38MM 24VDC WIRE |
4,677 | 15.57 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 2.400 in H2O (597.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 14800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

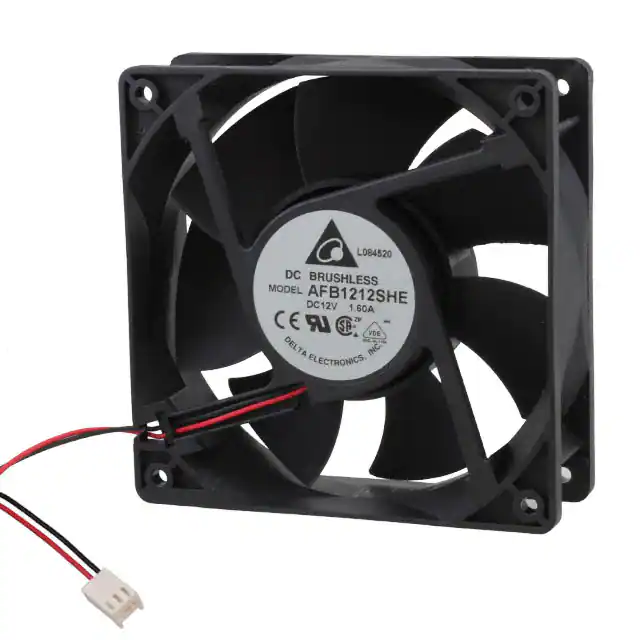

1-NPO/603-1082FAN AXL 120X38MM 12VDC RECT CONN |
4,617 | 20.86 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12.6 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.564 lb (255.83 g) |
|

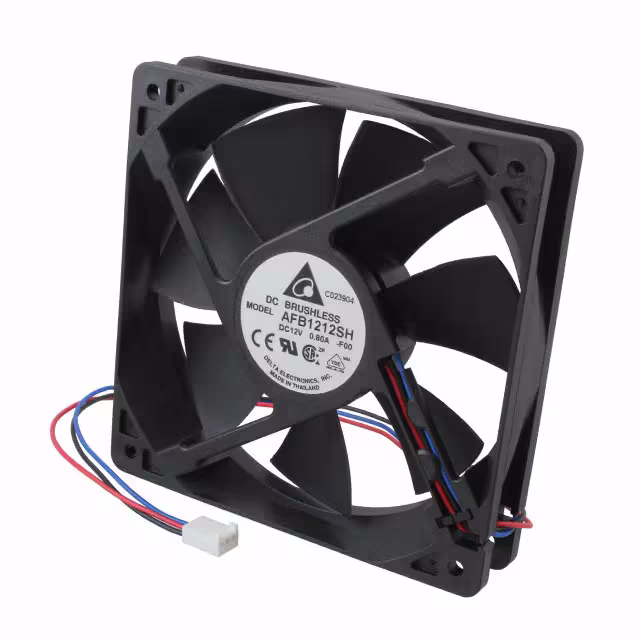

1-NPT/603-1336FAN AXIAL 120X25.4MM 12VDC RECT |
4,052 | 20.85 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

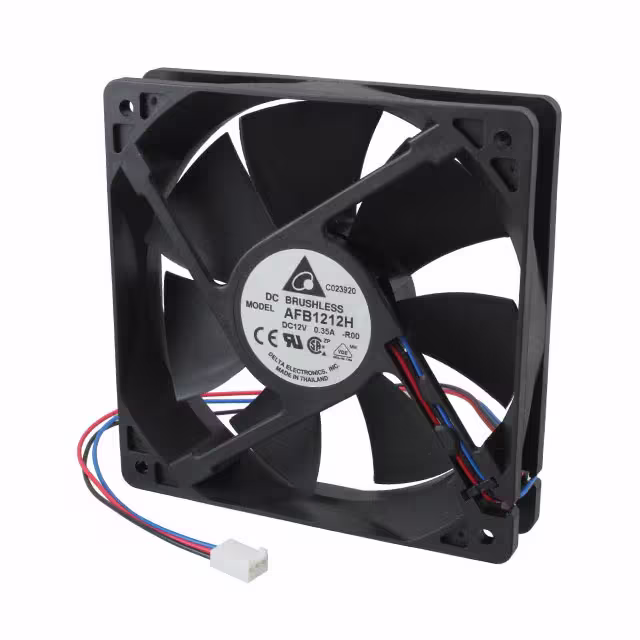

1-NPL/603-1548FAN AXIAL 120X25.4MM 12VDC RECT |
1,413 | 20.85 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB(A) | 2.76 W | 2500 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1339FAN AXL 120X38MM 12VDC RECT CONN |
1,908 | 20.86 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
1-NPT/603-1342FAN AXIAL 120X25.4MM 12VDC RECT |
4,301 | 20.85 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 103.8 CFM (2.91m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.5dB(A) | 4.8 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

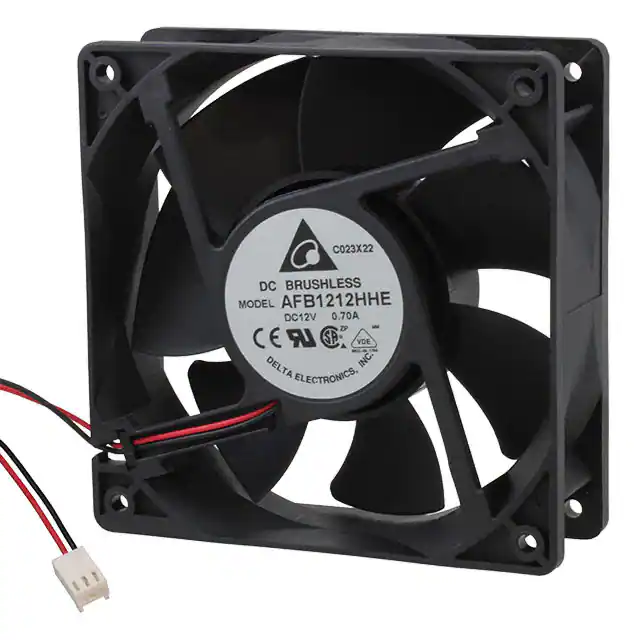

1-NPO/603-1329FAN AXL 120X38MM 12VDC RECT CONN |
2,781 | 20.86 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.52 W | 2900 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

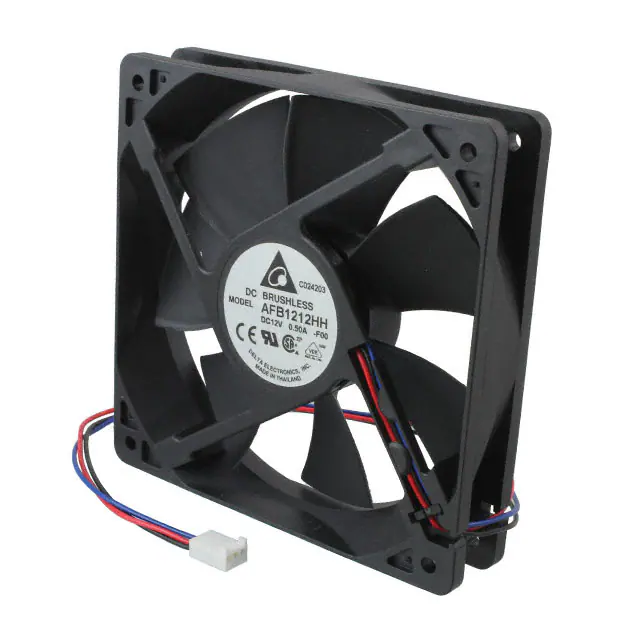

1-NPL/603-1337FAN AXIAL 120X25.4MM 12VDC RECT |
4,004 | 0.00 |
|
Datasheet |
AFB | Box | Discontinued at Digi-Key | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

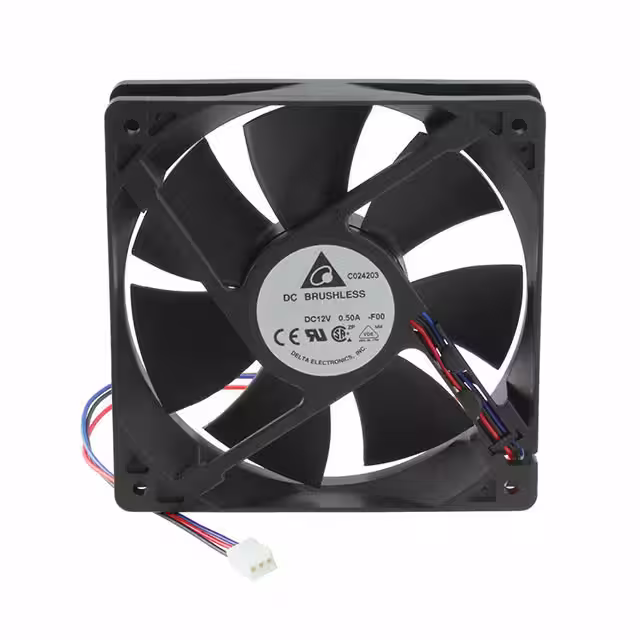

1-NPT/603-1331FAN AXIAL 120X25.4MM 12VDC RECT |
2,676 | 20.85 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 3.96 W | 2800 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1326FAN AXL 120X38MM 12VDC RECT CONN |
4,369 | 20.86 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 3.84 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
9G0912P2B03FAN AXIAL 92X32MM 12VDC WIRE |
4,819 | 16.45 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | - | 4000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.375 lb (170.1 g) |
|
|
9G0912P2S01FAN AXIAL 92X32MM 12VDC WIRE |
1,988 | 16.45 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 4.56 W | 3500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0912P2A01192X32MM 12V,HIGH PERF.,RBLS DC T |
2,482 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | - | 4300 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
9G0848G1021FAN AXIAL 80X38MM 48VDC WIRE |
1,445 | 24.87 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 13 W | 6300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
