DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0803848L2B-BT0FAN 80X38MM 48VDC PWM/TACH |
2,174 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 19.2 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9G1224F4021FAN AXIAL 119X25MM 24VDC WIRE |
3,961 | 16.21 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1212F4021FAN AXIAL 120X25MM 12VDC WIRE |
4,287 | 16.21 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.28 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
CFM-9238BF-180-585-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,550 | 0.00 |
|
Datasheet |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.5dB(A) | 13.68 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF-165-535-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,891 | 0.00 |
|
Datasheet |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.4 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GA0812J4D001FAN AXIAL 80X25.2MM 12VDC WIRE |
1,803 | 20.14 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 7.2 W | 7400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0812J4001FAN AXIAL 80X25.2MM 12VDC WIRE |
1,346 | 20.14 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 7400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0812J40011FAN AXIAL 80X25.2MM 12VDC WIRE |
4,318 | 20.14 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 7400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0824G4001FAN AXIAL 80X25.2MM 24VDC WIRE |
4,556 | 16.46 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.04 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0824G40011FAN AXIAL 80X25.2MM 24VDC WIRE |
4,824 | 16.46 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.04 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0824H4001FAN AXIAL 80X25.2MM 24VDC WIRE |
1,452 | 15.01 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 51.5 CFM (1.44m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.4 W | 5200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0824H40011FAN AXIAL 80X25.2MM 24VDC WIRE |
3,791 | 15.01 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 51.5 CFM (1.44m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.4 W | 5200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0824H4D00180X25MM 24V,LOW POWER DC LCKRTRS |
1,600 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA0824G4D00180X25MM 24V,LOW POWER DC LCKRTRS |
3,625 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
DC0603848J2B-BT0FAN 60X38MM 48VDC PWM/TACH |
4,325 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 32.64 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603848I2B-BT0FAN 60X38MM 48VDC PWM/TACH |
1,753 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 24.96 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603848L2B-BT0FAN 60X38MM 48VDC PWM/TACH |
2,789 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 48 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
612NMLFAN AXIAL 60X25.4MM 12VDC WIRE |
3,688 | 0.00 |
|
Datasheet |
600N | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 14.0 CFM (0.392m³/min) | - | Ball | Tubeaxial | - | 19.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.19 lb (86.18 g) |
|

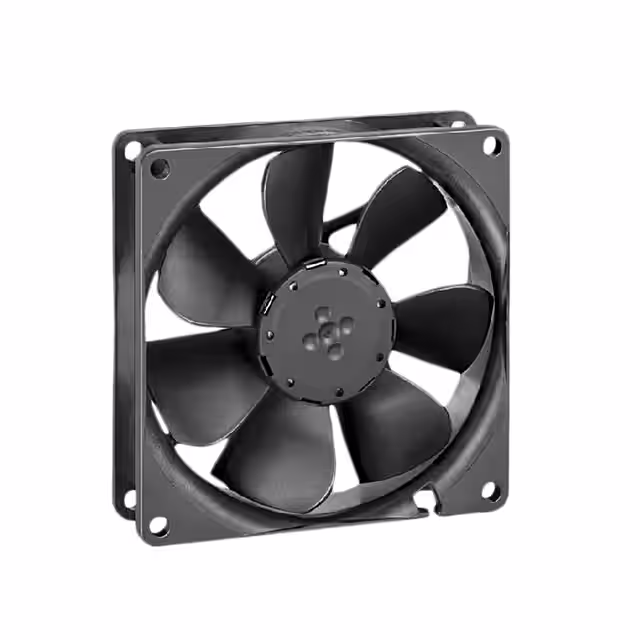

3412NGMEFAN AXIAL 92X25MM 12VDC WIRE |
1,072 | 0.00 |
|
Datasheet |
3400N | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 42.4 CFM (1.19m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.222 lb (100.7 g) |
|
|
PSD1204PBB1-A(2).Z.R.PWM.GNFAN AXIAL 40X24MM 12VDC WIRE |
1,298 | 19.38 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.00mm | 21.6 CFM (0.605m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 55.7dB(A) | 6 W | 14700 RPM | 3 Wire Leads | - | - | - | - |
