DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD1208PMB3-A (2).GN.IP55FAN AXIAL 80X38MM 12VDC WIRE |
1,126 | 18.95 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 59.5 CFM (1.67m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.3dB(A) | 4.4 W | 4200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
OD6038-12HBVXC10AFAN AXIAL 60X38MM 12VDC WIRE |
3,648 | 19.15 |
|
Datasheet |
OD6038 VA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 61.0 CFM (1.71m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.0dB | 17 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
DC0803824L2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
1,860 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.6 W | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-9238BF-265-535DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,359 | 0.00 |
|
Datasheet |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 4.2 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB1248H-F00FAN BLOWER 120X32MM 48VDC WIRE |
4,214 | 19.18 |
|
Datasheet |
BFB | Bulk | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 31.4 CFM (0.879m³/min) | 0.748 in H2O (186.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 7.2 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
|
DC1203848V2B-BT0FAN 120X38MM 48VDC PWM/TACH |
3,994 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 38.4 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848U2B-BT0FAN 120X38MM 48VDC PWM/TACH |
2,329 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 36 W | 2900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603824I2B-2T2FAN 60X38MM 24VDC MOLEX 22-01-10 |
2,664 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 12.48 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603824J2B-2T2FAN 60X38MM 24VDC MOLEX 22-01-10 |
1,331 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 16.32 W | 9000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848J2B-BT0FAN 120X38MM 48VDC PWM/TACH |
1,666 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 72 W | 4100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PSD1204PBB1-A(2).Z.GNFAN AXIAL 40X24MM 12VDC WIRE |
3,336 | 19.00 |
|
Datasheet |
MagLev® PSD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 24.00mm | 21.6 CFM (0.605m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Auto Restart | 55.7dB(A) | 6 W | 14700 RPM | 2 Wire Leads | - | - | - | - |
|

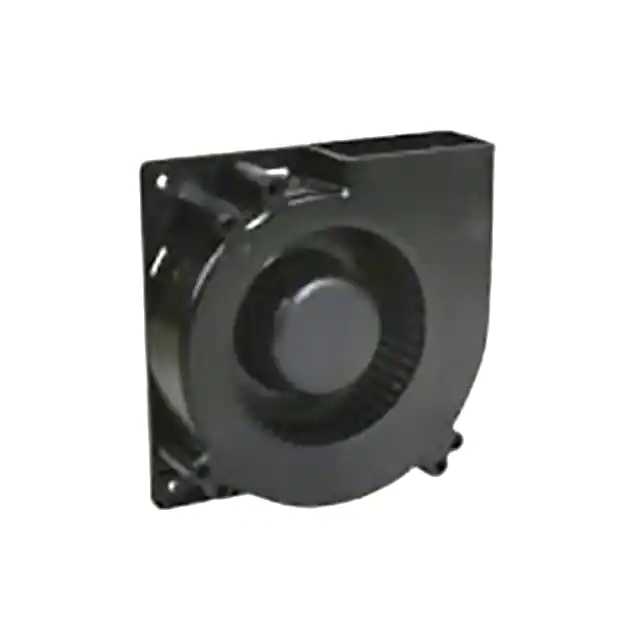

ODB1232-12HBFAN BLOWER 120X32MM 12VDC WIRE |
2,681 | 15.51 |
|
Datasheet |
ODB1232 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.0 CFM (0.924m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | - | 55.0dB | - | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
ODB1232-12MBFAN BLOWER 120X32MM 12VDC WIRE |
2,399 | 15.51 |
|
Datasheet |
ODB1232 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Blower | - | 49.0dB | - | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
ODB1232-12LBFAN BLOWER 120X32MM 12VDC WIRE |
2,954 | 15.51 |
|
Datasheet |
ODB1232 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 25.0 CFM (0.700m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | - | 48.0dB | - | 2100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
ODB1232-24HBFAN BLOWER 120X32MM 24VDC WIRE |
2,574 | 15.51 |
|
Datasheet |
ODB1232 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.0 CFM (0.924m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | - | 55.0dB | - | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
ODB1232-24MBFAN BLOWER 120X32MM 24VDC WIRE |
3,008 | 15.51 |
|
Datasheet |
ODB1232 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Blower | - | 49.0dB | - | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
ODB1232-24LBFAN BLOWER 120X32MM 24VDC WIRE |
2,317 | 15.51 |
|
Datasheet |
ODB1232 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 25.0 CFM (0.700m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | - | 48.0dB | - | 2100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
ODB1232-24HHBDC BLOWER 24V 120X32MM |
1,564 | 0.00 |
|
Datasheet |
ODB1232 | Bulk | Active | 24VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 32.3 CFM (0.904m³/min) | 1.400 in H2O (348.7 Pa) | Ball | Blower | Auto Restart | 59.7dB(A) | 710 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
G1238E12B1-FSR-WS-EM-L25FAN AXIAL 120X38MM 12VDC WIRE |
3,867 | 19.25 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
DC1202548V2B-3T1FAN 120X25MM 48VDC TACH COMPUTER |
1,646 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 31.2 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
