DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238H24B1+3-FSRFAN AXIAL 119X38MM 24VDC WIRE |
3,365 | 17.55 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach), Thermistor | 41.0dB(A) | - | 2500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
GF60252BX-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
4,106 | 0.00 |
|
Datasheet |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 54.6 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | PWM Control | 55.4dB(A) | 13.08 W | 12900 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF60252B1-1000U-SDP24VDC FAN 60X25MM TACH/PWM GR487 |
1,434 | 0.00 |
|
Datasheet |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | Tubeaxial | PWM Control | 53.2dB(A) | 9.72 W | 11500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF60252B3-1000U-SDP24VDC FAN 60X25MM TACH/PWM GR487 |
1,855 | 0.00 |
|
Datasheet |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control | 38.0dB(A) | 2.76 W | 6450 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF60252B2-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
3,970 | 0.00 |
|
Datasheet |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | PWM Control | 47.2dB(A) | 5 W | 9000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF60252B3-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
1,288 | 0.00 |
|
Datasheet |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control | 38.0dB(A) | 2.76 W | 6450 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
G1238E24B-FSR-EMFAN AXIAL 119X38MM 24VDC WIRE |
1,529 | 18.92 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G1238M24B-FSR-EMFAN AXIAL 119X38MM 24VDC WIRE |
2,784 | 18.92 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|

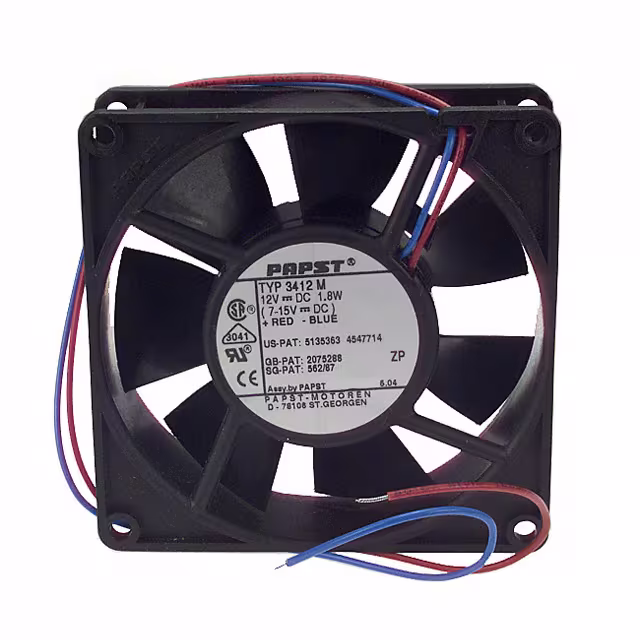

3412MFAN AXIAL 92X25.4MM 12VDC WIRE |
4,331 | 0.00 |
|
Datasheet |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 42.0 CFM (1.18m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 1.8 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
3412LFAN AXIAL 92X25.4MM 12VDC WIRE |
4,302 | 0.00 |
|
Datasheet |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 36.0 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 1.3 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3412FAN AXIAL 92X25.4MM 12VDC WIRE |
3,521 | 0.00 |
|
Datasheet |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
605LFAN AXIAL 60X25.4MM 5VDC WIRE |
3,698 | 0.00 |
|
Datasheet |
600 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 12.0 CFM (0.336m³/min) | - | Ball | Tubeaxial | - | 26.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|
|
DC0803824U2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
2,929 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 36 W | 7500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824H2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
2,551 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 24 W | 6100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824M2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
2,969 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 18.24 W | 5600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
09533GA-12M-AT-00FAN BLOWER 97X33MM 12VDC WIRE |
2,192 | 18.96 |
|
Datasheet |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 28.6 CFM (0.801m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 54.5dB | 12.4 W | 3700 RPM | 3 Wire Leads | - | - | - | - |
|
|
09533GA-24M-AT-00FAN BLOWER 97X33MM 24VDC WIRE |
1,054 | 18.96 |
|
Datasheet |
09533GA | Bulk | Active | 24VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 28.6 CFM (0.801m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 54.5dB | 11.8 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
09533GA-12K-AT-00FAN BLOWER 97X33MM 12VDC WIRE |
1,694 | 18.96 |
|
Datasheet |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.2 CFM (0.566m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 47.5dB | 4.8 W | 2700 RPM | 3 Wire Leads | - | - | - | - |
|
|
09533GA-12L-AL-00FAN BLOWER 97X33MM 12VDC WIRE |
4,308 | 18.96 |
|
Datasheet |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 24.7 CFM (0.692m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 51.5dB | 7.68 W | 3200 RPM | 3 Wire Leads | - | - | - | - |
|
|
09533GA-24K-AL-00FAN BLOWER 97X33MM 24VDC WIRE |
3,460 | 18.96 |
|
Datasheet |
09533GA | Bulk | Active | 24VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.4 CFM (0.571m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 47.5dB | 5.04 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
