DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GB1206AHV1-A.V1.B2170.GNFAN BLOWER 60X15MM VAPO 12VDC |
4,380 | 18.18 |
|
Datasheet |
GB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | - | - | Vapo-Bearing™ | Blower | - | - | - | - | - | - | - | - | - |
.F.GN.jpg)
|

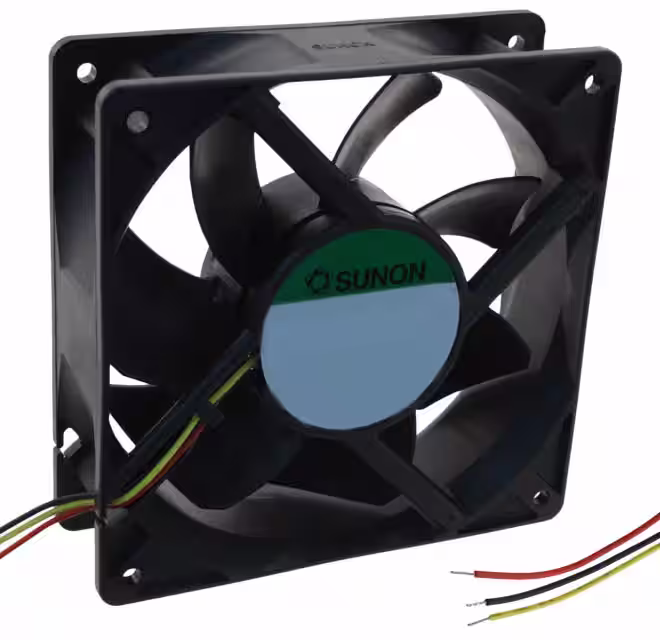

PMD1212PMB3-A.(2).F.GNFAN AXIAL 120X38MM 12VDC WIRE |
2,463 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 153.0 CFM (4.28m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 10 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.727 lb (329.76 g) |
|
DC0803812V2B-2T0FAN AXIAL 80X38MM 12VDC WIRE |
2,177 | 15.29 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 32.4 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
DC1203812U2B-2T2FAN 120X38MM 12VDC MOLEX 22-01-1 |
2,495 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 18.6 W | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1203812V2B-2T2FAN 120X38MM 12VDC MOLEX 22-01-1 |
4,944 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 18 W | 4100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

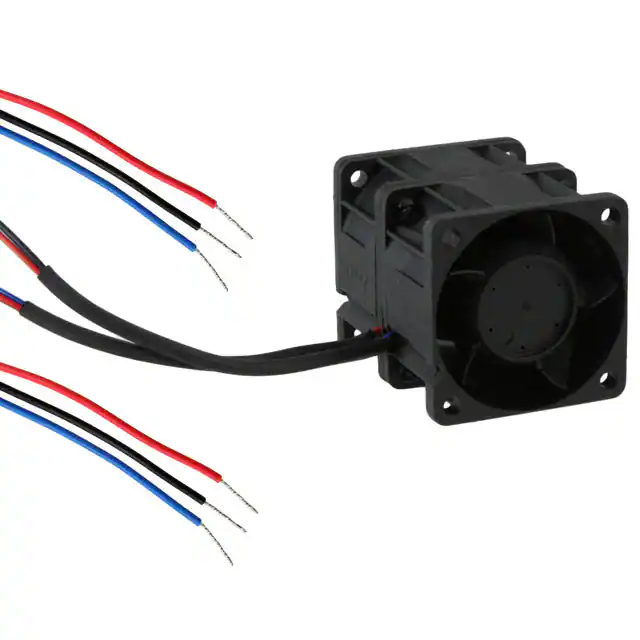

GFB0412SHG-F00FAN AXIAL DUAL 40X48MM 12VDC |
4,236 | 25.26 |
|
Datasheet |
GFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 24.0 CFM (0.672m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 10.2 W | 12000 Front, 10600 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.167 lb (75.75 g) |
|
GFB0412EHS-F00FAN AXIAL DUAL 40X56MM 12VDC |
1,349 | 0.00 |
|
Datasheet |
GFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.3 CFM (0.764m³/min) | 1.630 in H2O (406.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 59.5dB(A) | 15 W | 15000 Front, 11200 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
DC1202512L2B-3T1FAN 120X25MM 12VDC TACH COMPUTER |
1,037 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.6 W | 2500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512V2B-3T1FAN 120X25MM 12VDC TACH COMPUTER |
4,137 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 7.8 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512U2B-3T1FAN 120X25MM 12VDC TACH COMPUTER |
4,576 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 7.44 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512H2B-3T1FAN 120X25MM 12VDC TACH COMPUTER |
1,470 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512M2B-3T1FAN 120X25MM 12VDC TACH COMPUTER |
4,624 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 5.76 W | 2800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512J2B-3T1FAN 120X25MM 12VDC TACH COMPUTER |
1,709 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 2100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225BG68-250-502-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
1,675 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 88.1 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.2dB(A) | 7.92 W | 5000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-170-524-20DC AXIAL FAN, 80 MM SQUARE, 25 M |
2,246 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 73.6 CFM (2.06m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 52.4dB(A) | 8.64 W | 7000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225BG68-150-502-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
1,207 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 88.1 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.2dB(A) | 7.92 W | 5000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
19032127AFAN AXIAL 80X32MM 24VDC ST24A3 |
2,297 | 0.00 |
|
Datasheet |
Sprint | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Sleeve | Tubeaxial | - | 40.9dB(A) | 3.3 W | 3440 RPM | 2 Wire Leads | - | - | - | 0.397 lb (180.08 g) |
|

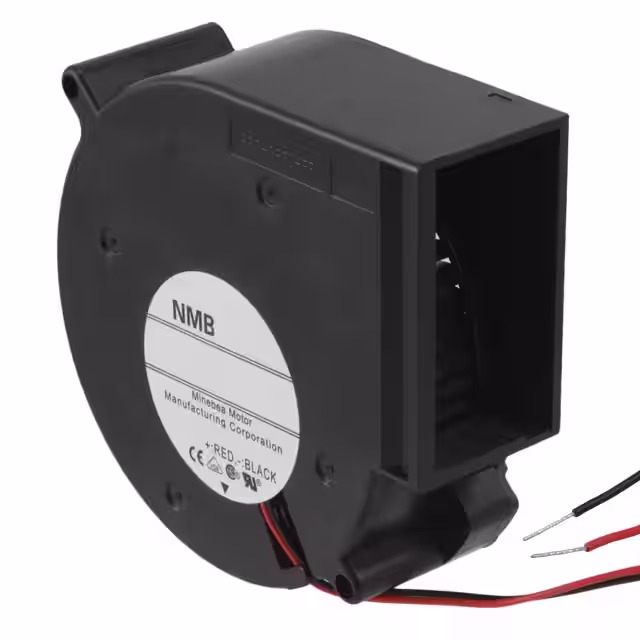

BG0903-B044-000-00FAN BLOWER 97X33MM 12VDC WIRE |
2,866 | 20.81 |
|
Datasheet |
09533GA | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | Blower | - | 54.5dB | 12.4 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
09533GA-12K-AA-00FAN BLOWER 97X33MM 12VDC WIRE |
2,439 | 18.47 |
|
Datasheet |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.4 CFM (0.571m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Auto Restart | 47.5dB | 4.8 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
09533GA-12L-AA-00FAN BLOWER 97X33MM 12VDC WIRE |
2,599 | 18.47 |
|
Datasheet |
09533GA | Bulk | Active | 12VDC | Square/Rounded - 97mm L x 93.5mm H | 33.00mm | 24.7 CFM (0.692m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | Auto Restart | 51.5dB | 7.68 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
