DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9BD24HD6-1FAN BLOWER 76X20MM 24VDC WIRE |
3,899 | 17.37 |
|
Datasheet |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Locked Rotor Sensor | 41.0dB(A) | 2.88 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
|
9GA0812H7D001FAN AXIAL 80X15MM 12VDC WIRE |
3,606 | 17.35 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 31.4 CFM (0.879m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.08 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.144 lb (65.32 g) |
|
|
9GA0812G7D00180X15MM 12V, HIGH PERF., LOW POW |
1,333 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA0824G7D00180X15MM 24V, HIGH PERF., LOW POW |
2,850 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA0812G700180X15MM 12V, HIGH PERF., LOW POW |
1,249 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
MR1225H24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
4,698 | 16.26 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 136.0 CFM (3.81m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.8dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225L24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
2,742 | 16.26 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 107.0 CFM (3.00m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.2dB(A) | - | 3500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
|
MR1225M24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
2,617 | 16.26 |
|
Datasheet |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 122.1 CFM (3.42m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.5dB(A) | - | 4000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|

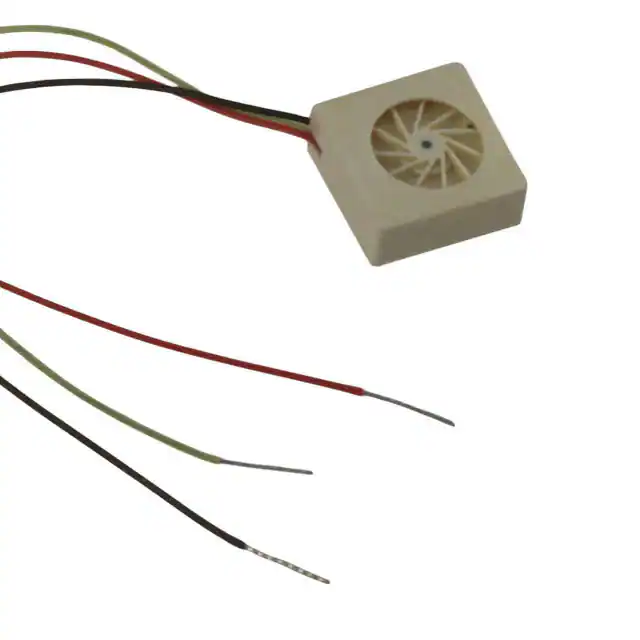

UB393-500FAN BLOWER 9X3MM VAPO 3VDC WIRE |
3,859 | 0.00 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 9mm L x 9mm H | 3.00mm | 0.041 CFM (0.001m³/min) | 0.065 in H2O (16.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 280 mW | 17400 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

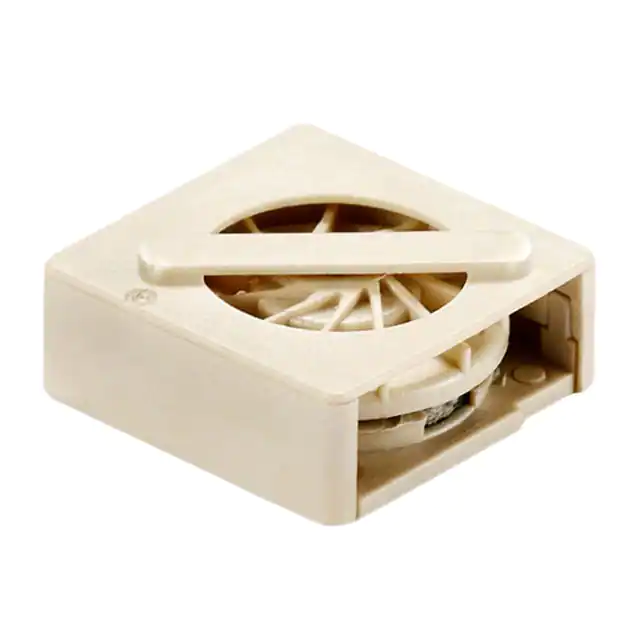

UB393-500TCFAN BLOWER 9X3MM VAPO 3VDC WIRE |
2,445 | 16.87 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 9mm L x 9mm H | 3.00mm | 0.041 CFM (0.001m³/min) | 0.065 in H2O (16.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 280 mW | 17400 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
|
BFB1224VH-F00FAN BLOWER 120X32MM 24VDC WIRE |
3,649 | 0.00 |
|
Datasheet |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.5 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 14.4 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
8412NGLFAN AXIAL 80X25.4MM 12VDC WIRE |
1,911 | 0.00 |
|
Datasheet |
8400N | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 19.0 CFM (0.532m³/min) | - | Sintec | Tubeaxial | - | 12.0dB(A) | 600 mW | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|
|
8412NGMFAN AXIAL 80X25.4MM 12VDC WIRE |
1,607 | 0.00 |
|
Datasheet |
8400N | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.0 CFM (0.952m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.3 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|
|
PSD1204PQBX-A(2).Z.R.PWM.GNFAN AXIAL 40X28MM 12VDC WIRE |
1,304 | 16.72 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.4 CFM (0.655m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 59.9dB(A) | 9 W | 19000 RPM | 3 Wire Leads | - | - | - | - |
|
DC0602512U2B-BT0FAN AXIAL 60X25MM 12VDC WIRE |
4,697 | 13.66 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 5.4 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
|
DC0602512V2B-BT0FAN AXIAL 60X25MM 12VDC WIRE |
2,575 | 13.66 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 5.76 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
|
DC0602524V2B-3T0FAN 60X25MM 24VDC TACH |
1,785 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 11.52 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548V2B-2T0FAN 60X25MM 48VDC |
4,200 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 23.04 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548W2B-2T0FAN 60X25MM 48VDC |
2,644 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 25.92 W | 9800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524U2B-3T0FAN 60X25MM 24VDC TACH |
3,623 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
