DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD2406PKBX-A.(2).GNFAN AXIAL 60X20MM 24VDC WIRE |
4,056 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 30.5 CFM (0.854m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 41.0dB(A) | 3.6 W | 5500 RPM | 2 Wire Leads | - | - | - | - |
|
|
PF38281B1-1000U-H9HFAN AXIAL 38X28MM 12VDC WIRE |
2,787 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 51.8dB(A) | 3.78 W | 16000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF38281BX-1000U-G9H12VDC FAN 38X28MM ALARM |
4,767 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 6.84 W | 20000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF38281BX-1000U-H9H12VDC FAN 38X28MM PWM |
2,474 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | PWM Control | 57.0dB(A) | 6.84 W | 20000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMD2407PTB1-A (2).GN.IP55FAN AXIAL 70X25MM 24VDC WIRE |
1,072 | 15.63 |
|
Datasheet |
PMD | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | 4.6 W | 5100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD2407PTB2-A (2).GN.IP55FAN AXIAL 70X25MM 24VDC WIRE |
4,935 | 15.63 |
|
Datasheet |
PMD | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 43.0dB(A) | 3.6 W | 4700 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD2407PTB3-A (2).GN.IP55FAN AXIAL 70X25MM 24VDC WIRE |
4,462 | 15.63 |
|
Datasheet |
PMD | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.0dB(A) | 2.9 W | 4200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
09238KA-24N-EA-00FAN AXIAL 24VDC FLANGE WIRE |
2,507 | 18.28 |
|
- |
09238KA | Box | Obsolete | 24VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
09238KA-12M-EA-00FAN AXIAL 12VDC FLANGE WIRE |
2,148 | 18.28 |
|
- |
09238KA | Box | Obsolete | 12VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FFB0812VH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
2,221 | 14.10 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 54.6 CFM (1.53m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.4dB(A) | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.254 lb (115.21 g) |
|
BFB1012MFAN BLOWER 97.2X33MM 12VDC WIRE |
3,661 | 0.00 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.748 in H2O (186.3 Pa) | Ball | Blower | Locked Rotor Protection | 49.0dB(A) | 6.84 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|

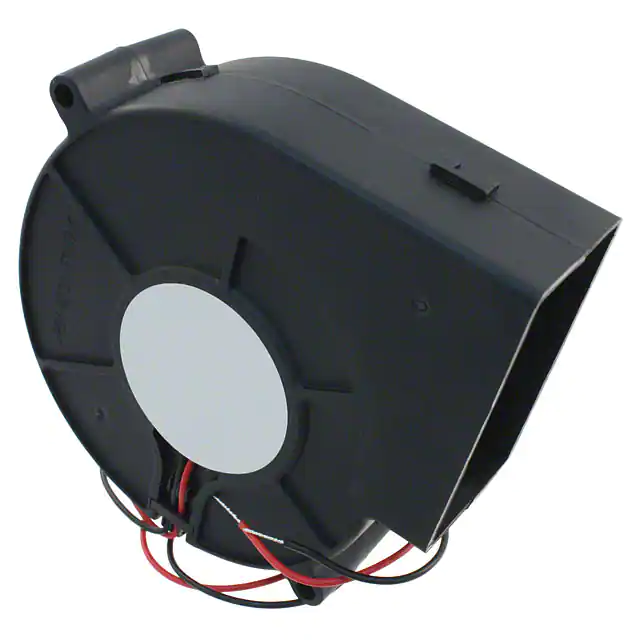

BFB1012HFAN BLOWER 97.2X33MM 12VDC WIRE |
2,644 | 0.00 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Protection | 52.0dB(A) | 9.6 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
BFB1012LFAN BLOWER 97.2X33MM 12VDC WIRE |
1,235 | 0.00 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 19.1 CFM (0.535m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Blower | Locked Rotor Protection | 45.0dB(A) | 3.84 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
9GE0412G30240X28MM 12V,LOW VIBRATION DC 0 |
1,245 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GE0412K30240X28MM 12V,LOW VIBRATION DC 0 |
1,519 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GE0412J30240X28MM 12V,LOW VIBRATION DC 0 |
2,863 | 0.00 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9S1212F4D01FAN AXIAL 119X25MM 12VDC WIRE |
4,757 | 14.59 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 2.28 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
9S1212H4011FAN AXIAL 119X25MM 12VDC WIRE |
2,197 | 14.59 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 86.5 CFM (2.42m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 4.68 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
9S1212M4D01FAN AXIAL 119X25MM 12VDC WIRE |
3,713 | 14.59 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.56 W | 1850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
9S1212M4D011FAN AXIAL 119X25MM 12VDC WIRE |
2,975 | 14.59 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.56 W | 1850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
