DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OD9238-48LBThermal Products |
3,368 | 0.00 |
|
- |
OD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 7.2 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-12HHBThermal Products |
1,960 | 0.00 |
|
- |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 58.3dB(A) | 18.2 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-12LBThermal Products |
2,696 | 0.00 |
|
- |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 7.2 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-48HBThermal Products |
2,599 | 0.00 |
|
- |
OD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Auto Restart | 56.1dB(A) | 12 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-48MBThermal Products |
3,909 | 0.00 |
|
- |
OD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 89.0 CFM (2.49m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.7dB(A) | 9.6 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-24MBThermal Products |
2,748 | 0.00 |
|
- |
OD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 89.0 CFM (2.49m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.7dB(A) | 7.2 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-12HBThermal Products |
1,016 | 0.00 |
|
- |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Auto Restart | 56.1dB(A) | 12.1 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-48HHBThermal Products |
3,833 | 0.00 |
|
- |
OD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 58.3dB(A) | 14.4 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
MS1238M24B1-FHRFAN AXIAL 120X38MM 24VDC WIRE |
3,121 | 15.98 |
|
Datasheet |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | - | 2500 RPM | 3 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
|
MS1238H24B1-FHRFAN AXIAL 120X38MM 24VDC WIRE |
3,104 | 15.98 |
|
Datasheet |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
|
MS1238E24B1-FHRFAN AXIAL 120X38MM 24VDC WIRE |
1,157 | 15.98 |
|
Datasheet |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.0dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
|
MS1238M48B1-FHRFAN AXIAL 120X38MM 48VDC WIRE |
3,473 | 15.98 |
|
Datasheet |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | - | 2500 RPM | 3 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
|
MS1238H48B1-FHRFAN AXIAL 120X38MM 48VDC WIRE |
4,896 | 15.98 |
|
Datasheet |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
|
MS1238E48B1-FHRFAN AXIAL 120X38MM 48VDC WIRE |
1,063 | 15.98 |
|
Datasheet |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.0dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
UB3F3-500FAN BLOWER 15X3MM VAPO 3VDC WIRE |
1,626 | 0.00 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.170 CFM (0.005m³/min) | 0.136 in H2O (33.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|

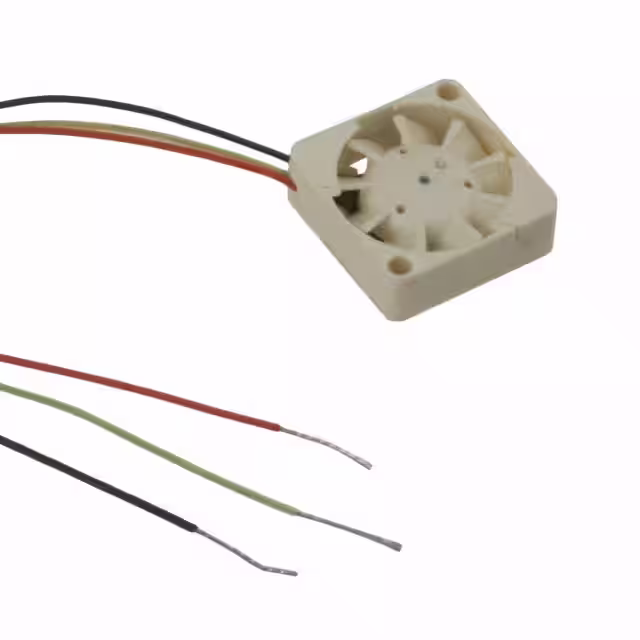

UF3A3-500FAN AXIAL 10X3MM VAPO 3VDC WIRE |
3,941 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 290 mW | 17000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

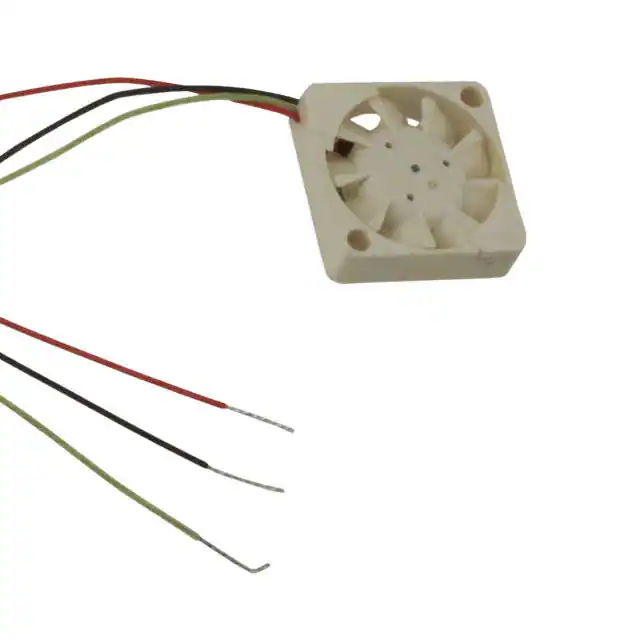

UF3C3-500FAN AXIAL 12X3MM VAPO 3VDC WIRE |
1,826 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.3dB(A) | 300 mW | 16500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

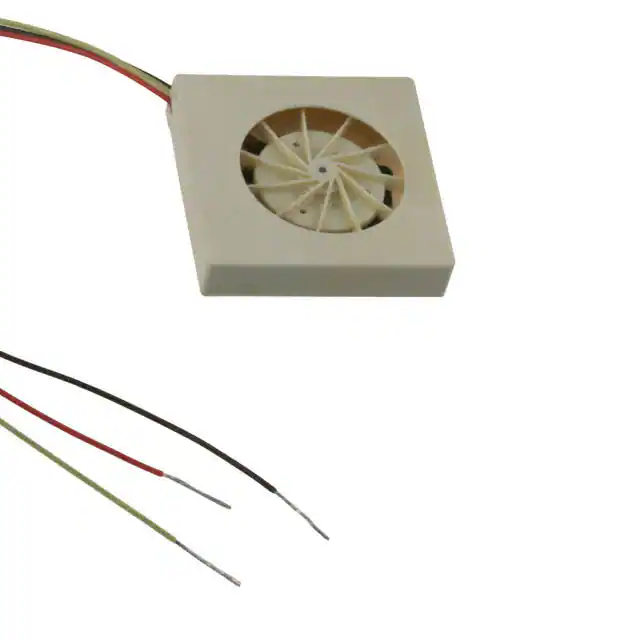

UB3H3-500FAN BLOWER 17X3MM VAPO 3VDC WIRE |
4,309 | 0.00 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 12500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
|
CFM-6025BG68-1100-535DC AXIAL FAN, 60 MM SQUARE, 25 M |
3,069 | 0.00 |
|
Datasheet |
CFM-60BG68 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 43.4 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 10.56 W | 10000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-2120-587DC AXIAL FAN, 60 MM SQUARE, 25 M |
1,418 | 0.00 |
|
Datasheet |
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 52.4 CFM (1.47m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | Auto Restart | 58.7dB(A) | 19.2 W | 12000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
