DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

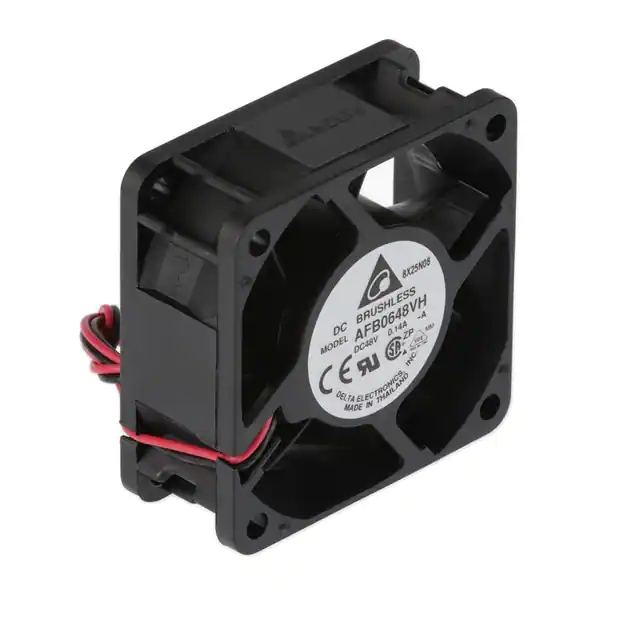

AFB0648VH-AFAN AXIAL 60X25.4MM 48VDC WIRE |
4,336 | 13.65 |
|
Datasheet |
AFB | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.32 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
PMD1207PTB1-A(2).GN.IP55FAN AXIAL 70X25MM 12VDC WIRE |
2,128 | 15.14 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | 4.4 W | 5100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD1207PTB2-A (2).GN.IP55FAN AXIAL 70X25MM 12VDC WIRE |
4,631 | 15.14 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 43.0dB(A) | 3.7 W | 4700 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD1207PTB3-A (2).GN.IP55FAN AXIAL 70X25MM 12VDC WIRE |
3,774 | 15.14 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.0dB(A) | 2.9 W | 4200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
DC0251005H2B-3T1FAN 25X10MM 5VDC TACH COMPUTER |
3,976 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 400 mW | 13000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
MEC0382V3-000U-G9924VDC FAN 120X38MM ALARM |
3,558 | 0.00 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 3.1 W | 2100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0382V1-000U-G9924VDC FAN 120X38MM ALARM |
4,862 | 0.00 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.7 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 9.2 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0382V2-000U-G9924VDC FAN 120X38MM ALARM |
4,635 | 0.00 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 5.4 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
UF3A3-700FAN AXIAL 10X3MM VAPO 3VDC WIRE |
3,592 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 290 mW | 17000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UF3C3-700FAN AXIAL 12X3MM VAPO 3VDC WIRE |
3,054 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.3dB(A) | 300 mW | 16500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UF3F3-700FAN AXIAL 15X3MM VAPO 3VDC WIRE |
3,496 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 100 mW | 14500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
UB3F3-700FAN BLOWER 15X3MM VAPO 3VDC WIRE |
3,317 | 0.00 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.160 CFM (0.004m³/min) | 0.116 in H2O (28.8 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 30.0dB(A) | 100 mW | 14000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
UB3H3-700FAN BLOWER 17X3MM VAPO 3VDC WIRE |
1,096 | 0.00 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.244 CFM (0.007m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 32.0dB(A) | 100 mW | 12500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
CFM-A238-13-22FAN AXIAL 120X38MM 12VDC WIRE |
2,533 | 15.18 |
|
Datasheet |
CFM-120 | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 21 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|
|
FFB0924EHE-SP20FAN AXIAL 92X38MM 24VDC WIRE |
4,375 | 14.19 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control | 55.0dB(A) | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
DC1202524J2B-BT4FAN 120X25MM 24VDC PWM/TACH MOLE |
1,277 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 4.8 W | 2100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202524H2B-BT4FAN 120X25MM 24VDC PWM/TACH MOLE |
4,263 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 12 W | 3400 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202524L2B-BT4FAN 120X25MM 24VDC PWM/TACH MOLE |
4,481 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 7.2 W | 2500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202524V2B-BT4FAN 120X25MM 24VDC PWM/TACH MOLE |
4,620 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 15.6 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202524U2B-BT4FAN 120X25MM 24VDC PWM/TACH MOLE |
4,654 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 14.88 W | 3700 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
