DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8032M12B-RSRFAN AXIAL 80X32MM 12VDC WIRE |
2,749 | 12.12 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 41.0 CFM (1.15m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
|
G8032S24B-RSRFAN AXIAL 80X32MM 24VDC WIRE |
4,584 | 12.12 |
|
Datasheet |
G8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 29.0 CFM (0.812m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 30.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
CBM-7530CF-260-540DC BLOWER, 49.2 X 49.8 X 20 MM, |
1,671 | 0.00 |
|
Datasheet |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 17.9 CFM (0.501m³/min) | 1.320 in H2O (328.8 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 54.0dB(A) | 16.56 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-979433B-235-540-22FAN BLOWER 97.68X32.7MM 24VDC |
1,605 | 12.73 |
|
Datasheet |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 32.70mm | 23.9 CFM (0.669m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.1dB(A) | 12.24 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025BF-190-479-20FAN AXIAL 60X25.4MM 12VDC WIRE |
2,014 | 12.59 |
|
Datasheet |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 43.1 CFM (1.21m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.9dB(A) | 8.28 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PSD1209PLV2-AZ.GNFAN AXIAL 92X32MM 12VDC WIRE |
4,253 | 12.12 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 79.0 CFM (2.21m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 42.1dB(A) | 4.2 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
CBM-A232B-120-457-20FAN BLOWER 119.3X32MM 12VDC WIRE |
2,225 | 0.00 |
|
Datasheet |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 45.8dB(A) | 4.56 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-A232B-220-457-20FAN BLOWER 119.3X32MM 24VDC WIRE |
1,367 | 0.00 |
|
Datasheet |
CBM-120B-2 | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 45.8dB(A) | 4.32 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-A232B-225-481-20FAN BLOWER 119.3X32MM 24VDC WIRE |
3,161 | 0.00 |
|
Datasheet |
CBM-120B-2 | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 48.2dB(A) | 8.64 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
OD3828-12HBFAN AXIAL 38X28MM 12VDC WIRE |
2,703 | 7.04 |
|
Datasheet |
OD3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | - | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | - | 41.0dB | - | 11000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|
|
PMD1206PTB2-A.(2).U.GNFAN AXIAL 60X25MM 12VDC |
3,031 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMD1206PTB3-A.(2).U.GNFAN AXIAL 60X25MM 12VDC WIRE |
2,048 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 2.6 W | 5600 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1206PTBX-A.(2).U.GNFAN AXIAL 60X25MM 12VDC WIRE |
4,148 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 4.9 W | 7600 RPM | 2 Wire Leads | - | - | - | - |
|
FFB0424VHN-TZT4FAN AXIAL 40X28MM 24VDC WIRE |
1,595 | 20.20 |
|
Datasheet |
FFB | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.9dB(A) | 2.4 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
CFM-8038B-250-498-20FAN AXIAL 80X37.6MM 24VDC WIRE |
2,532 | 12.68 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.8dB(A) | 10.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD4028-12HB01AFAN AXIAL 40X28MM 12VDC WIRE |
2,874 | 12.00 |
|
Datasheet |
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.0 CFM (0.336m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB | - | 8800 RPM | 3 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OD4028-24HB01AFAN AXIAL 40X28MM 24VDC WIRE |
1,774 | 12.00 |
|
Datasheet |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 12.0 CFM (0.336m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB | - | 8800 RPM | 3 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

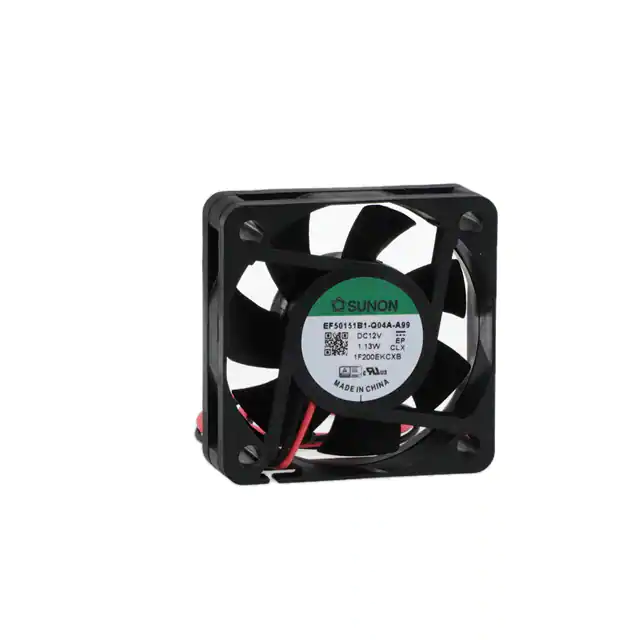

4518HQ/EF50151B1-Q04A-A99DC FAN 50X15MM BALL 11.9CFM |
3,249 | 13.69 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OD1232-24LS01AFAN AXIAL 120X32MM 24VDC WIRE |
1,924 | 12.51 |
|
Datasheet |
OD1232 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 44.0dB | - | 2900 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | - |
|

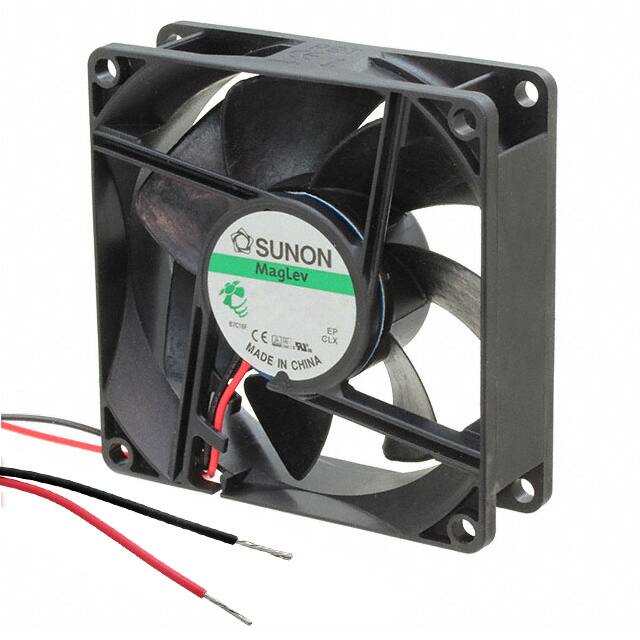

PE80252V2-000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,874 | 0.00 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.0dB(A) | 3.99 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
