DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB0512LA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE |
4,026 | 9.11 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 2.2 CFM (0.061m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 22.5dB(A) | 600 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512HA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE |
1,106 | 9.11 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 1.44 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512MA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE |
4,453 | 9.11 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 840 mW | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
|
CFM-6025BG-1100-535DC AXIAL FAN, 60 MM SQUARE, 25 M |
1,947 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 42.9 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 10.56 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0702548U2B-3T3FAN 70X25MM 48VDC TACH MOLEX 22- |
3,377 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 12.96 W | 5500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702548H2B-3T3FAN 70X25MM 48VDC TACH MOLEX 22- |
2,045 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 6.24 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
G4020H24B1-RSR-CCFAN AXIAL 40X20MM 24VDC WIRE |
3,095 | 9.51 |
|
Datasheet |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MR9225L24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
4,342 | 9.96 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.0 CFM (1.90m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 40.9dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225M24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
3,422 | 9.96 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 45.1dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
CBM-A232S-125-482-22FAN BLOWER 119.3X32MM 12VDC |
3,086 | 0.00 |
|
Datasheet |
CBM-120S | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.2dB(A) | 6.84 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0351005U2B-BT0FAN 35X10MM 5VDC PWM/TACH |
4,166 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 23.0dB(A) | 150 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0351005V2B-BT0FAN 35X10MM 5VDC PWM/TACH |
2,573 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 0.75 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

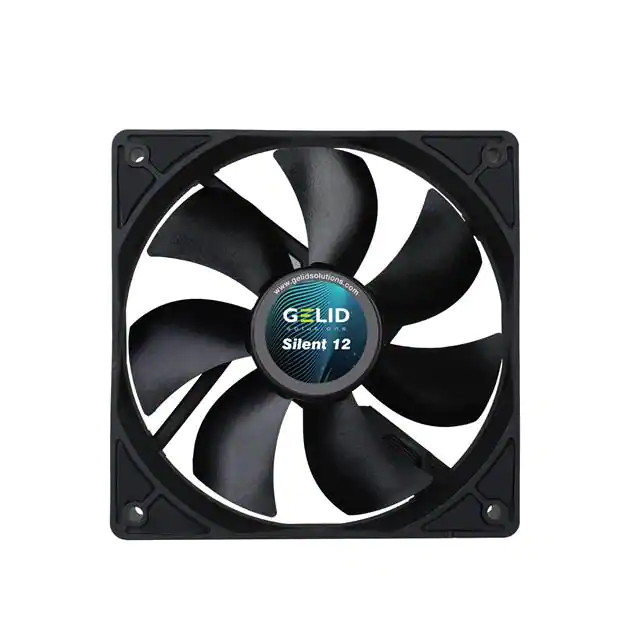

FN-PX12-11SILENT 12 BLACK |
3,364 | 10.67 |
|
- |
FN | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 40.3 CFM (1.13m³/min) | 0.063 in H2O (15.7 Pa) | Hydrodynamic | Tubeaxial | - | 20.2dB(A) | - | 1000 RPM | 3 Position Rectangular Connector | - | - | CE | - | |
|
|
YW12025012BM-4120X25MM 12V, 2200RPM, 3 WIRES |
4,105 | 0.00 |
|
Datasheet |
- | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 87.8 CFM (2.45m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | Alarm Sensor | 40.5dB(A) | 3.48 W | 2200 RPM | 3 Wire Leads | - | - | CE, cURus, TUV | - | |
|
|
PMB1297PYB3-AY (2)FAN BLOWER 97.2X33MM 12VDC WIRE |
1,433 | 0.00 |
|
Datasheet |
PMB | - | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | - | 50.0dB(A) | 3.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.408 lb (185.07 g) |
|
|
DC0251012H2B-2T2FAN 25X10MM 12VDC MOLEX 22-01-10 |
1,849 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 13000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922548L2B-BT0FAN 92X25MM 48VDC PWM/TACH |
3,949 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 5.28 W | 2450 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922548J2B-BT0FAN 92X25MM 48VDC PWM/TACH |
1,197 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 4.32 W | 2100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922548H2B-BT0FAN 92X25MM 48VDC PWM/TACH |
1,140 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 9.6 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922548M2B-BT0FAN 92X25MM 48VDC PWM/TACH |
1,107 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 6.72 W | 2850 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
