DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0702524U2B-2T2FAN 70X25MM 24VDC MOLEX 22-01-10 |
3,236 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 6.48 W | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-8038B-130-387-20FAN AXIAL 80X37.6MM 12VDC WIRE |
1,105 | 9.76 |
|
Datasheet |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.7dB(A) | 2.52 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0605HBFAN AXIAL 60X15MM BALL 5VDC WIRE |
2,815 | 9.55 |
|
Datasheet |
AFB | Tray | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 15.4 CFM (0.431m³/min) | 0.155 in H2O (38.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.5 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|

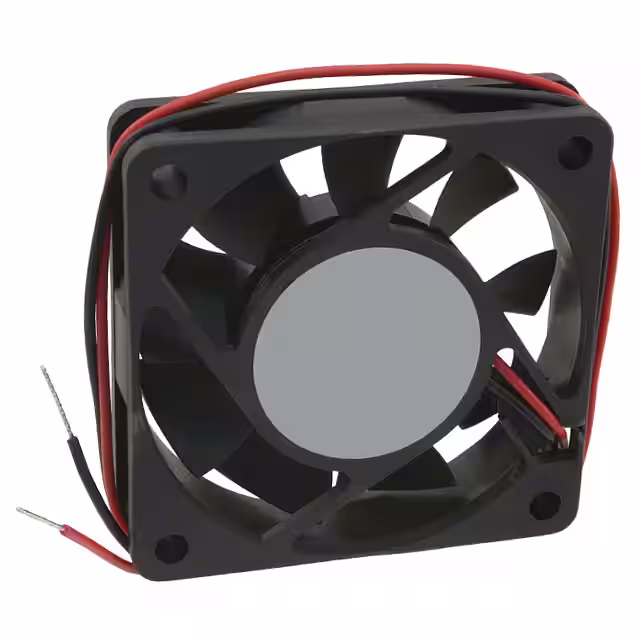

AFB0605MBFAN AXIAL 60X15MM BALL 5VDC WIRE |
1,764 | 9.55 |
|
Datasheet |
AFB | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 13.4 CFM (0.375m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 1 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|

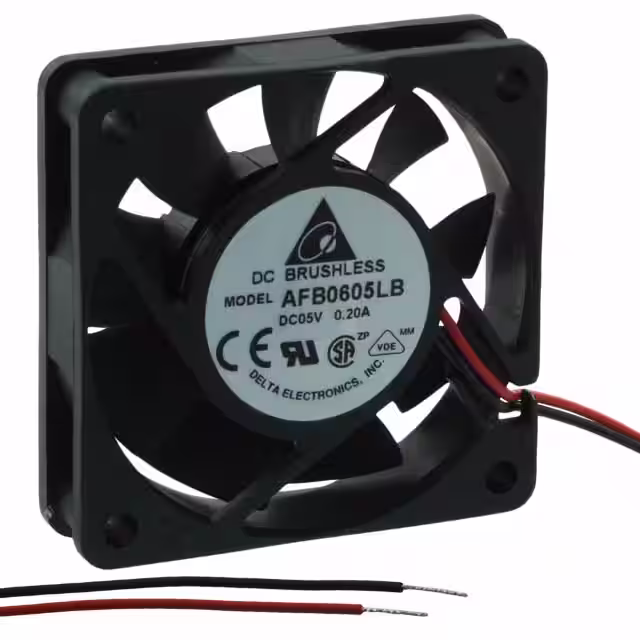

AFB0605LBFAN AXIAL 60X15MM BALL 5VDC WIRE |
3,373 | 9.55 |
|
Datasheet |
AFB | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 11.5 CFM (0.322m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 650 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0624VHBFAN AXIAL 60X15MM 24VDC WIRE |
2,574 | 9.55 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.64 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
CFM-9225V-124-280-11FAN AXIAL 92X25MM 12VDC WIRE |
1,754 | 9.71 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 28.0dB(A) | 1.05 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
KD1206PKB3.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
4,046 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
EF60202B2-000U-G9924VDC FAN 60X20MM ALARM |
1,968 | 0.00 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 0.92 W | 3700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60202B1-000U-G9924VDC FAN 60X20MM ALARM |
4,704 | 0.00 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.5dB(A) | 1.44 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60202B3-000U-G9924VDC FAN 60X20MM ALARM |
4,617 | 0.00 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.1 CFM (0.395m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.5dB(A) | 0.56 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0601012U2B-2T2FAN 60X10MM 12VDC MOLEX 22-01-10 |
3,974 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.4 W | 4900 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0251012L2B-2T0FAN AXIAL 25X10MM 12VDC WIRE |
1,021 | 7.87 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 600 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
DC0701512J2B-3T3FAN 70X15MM 12VDC TACH MOLEX 22- |
4,181 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 2800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802548M2B-3T0FAN 80X25MM 48VDC TACH |
4,842 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 12 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802548L2B-3T0FAN 80X25MM 48VDC TACH |
2,670 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 9.6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0701512L2B-3T3FAN 70X15MM 12VDC TACH MOLEX 22- |
1,821 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3300 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0702524L2B-3T3FAN 70X25MM 24VDC TACH MOLEX 22- |
4,098 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.68 W | 3000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524H2B-2T2FAN 80X15MM 24VDC MOLEX 22-01-10 |
2,027 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 3.84 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524U2B-2T2FAN 80X15MM 24VDC MOLEX 22-01-10 |
4,844 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 11.52 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
