DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

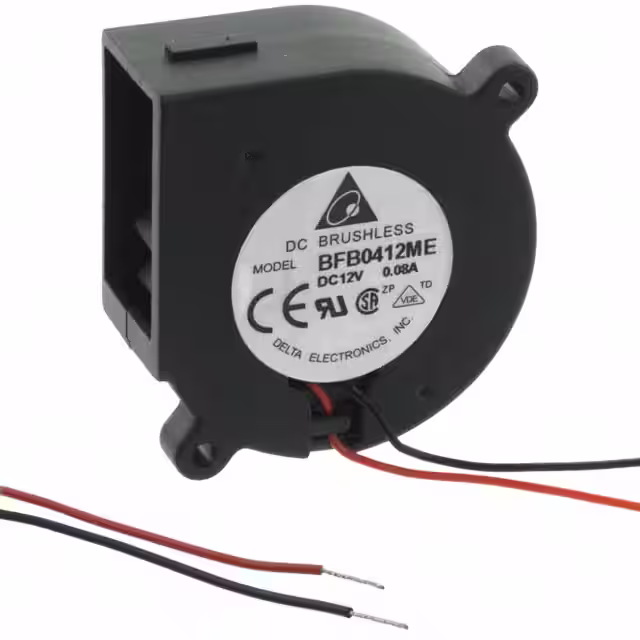

BFB0412MEFAN BLOWER 42X18.5MM 12VDC WIRE |
2,015 | 9.43 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 42mm L x 44.5mm H | 18.50mm | 2.1 CFM (0.059m³/min) | 0.233 in H2O (58.0 Pa) | Ball | Blower | Locked Rotor Protection | 30.0dB(A) | 600 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.049 lb (22.23 g) |
|
CFM-9238B-130-410-20FAN AXIAL 92X37.5MM 12VDC WIRE |
2,717 | 9.37 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.1dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238B-230-410-20FAN AXIAL 92X37.5MM 24VDC WIRE |
2,541 | 9.37 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.1dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06020SA-12M-AL-00FAN AXIAL 60X20MM 12VDC WIRE |
3,555 | 9.54 |
|
- |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 960 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-12L-ET-00FAN AXIAL 60X20MM 12VDC WIRE |
1,152 | 0.00 |
|
- |
06020SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB | 720 mW | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-24M-EL-00FAN AXIAL 60X20MM 24VDC WIRE |
2,096 | 0.00 |
|
- |
06020SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-24L-ET-00FAN AXIAL 60X20MM 24VDC WIRE |
2,024 | 0.00 |
|
- |
06020SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB | 1.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-12L-AT-00FAN AXIAL 60X20MM 12VDC WIRE |
2,833 | 0.00 |
|
- |
06020SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB | 720 mW | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-24T-ET-00DC AXIAL FAN |
3,095 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0801512M2B-3T3FAN 80X15MM 12VDC TACH MOLEX 22- |
1,973 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.44 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801512J2B-3T3FAN 80X15MM 12VDC TACH MOLEX 22- |
3,582 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 720 mW | 2400 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802524J2B-BT0FAN 80X25MM 24VDC PWM/TACH |
2,993 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 3.6 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802548J2B-3T0FAN 80X25MM 48VDC TACH |
3,221 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 7.2 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024H2B-2T2FAN 50X10MM 24VDC MOLEX 22-01-10 |
2,123 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 6500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501005M2B-2T2FAN 50X10MM 5VDC MOLEX 22-01-102 |
3,953 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 400 mW | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501512M2B-3T3FAN 50X15MM 12VDC TACH MOLEX 22- |
4,396 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.08 W | 4800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0501005H2B-2T2FAN 50X10MM 5VDC MOLEX 22-01-102 |
1,124 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 500 mW | 6500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024M2B-2T2FAN 50X10MM 24VDC MOLEX 22-01-10 |
3,432 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.92 W | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-6025BG-150-349-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,788 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.9dB(A) | 1.32 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG-250-349-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,645 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.9dB(A) | 1.68 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
