DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASB0312LA-DF00FAN AXIAL 30X10MM 12VDC WIRE |
306 | 5.98 |
|
Datasheet |
ASB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 600 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.017 lb (7.71 g) |
|
CFM-4020CF-035-114-20FAN AXIAL 40X20MM 5VDC WIRE |
635 | 6.53 |
|
Datasheet |
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 11.4dB(A) | 450 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
EFB0612MAFAN AXIAL 60X10MM 12VDC WIRE |
328 | 13.14 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 15.5 CFM (0.434m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 960 mW | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
MF40101V1-1000U-F99FAN AXIAL 40X10MM 12VDC WIRE |
1,001 | 5.28 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.3dB(A) | 620 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.035 lb (15.88 g) |
|

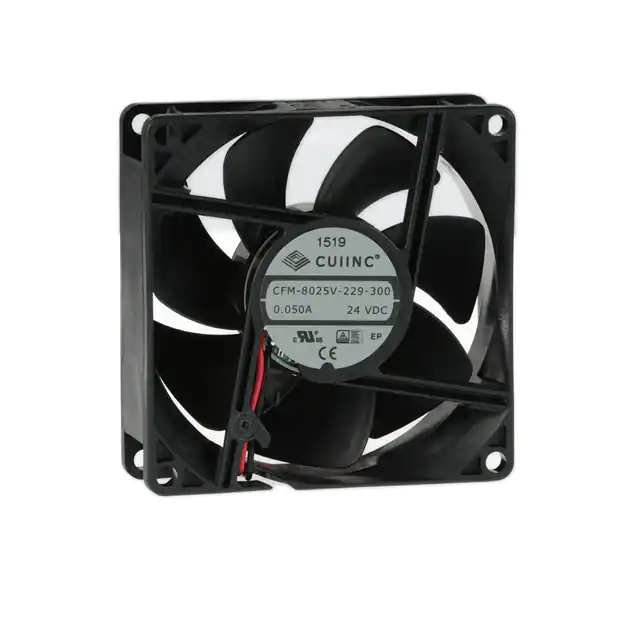

CFM-8025V-229-300FAN AXIAL 80X25MM 24VDC WIRE |
3,388 | 6.90 |
|
Datasheet |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|

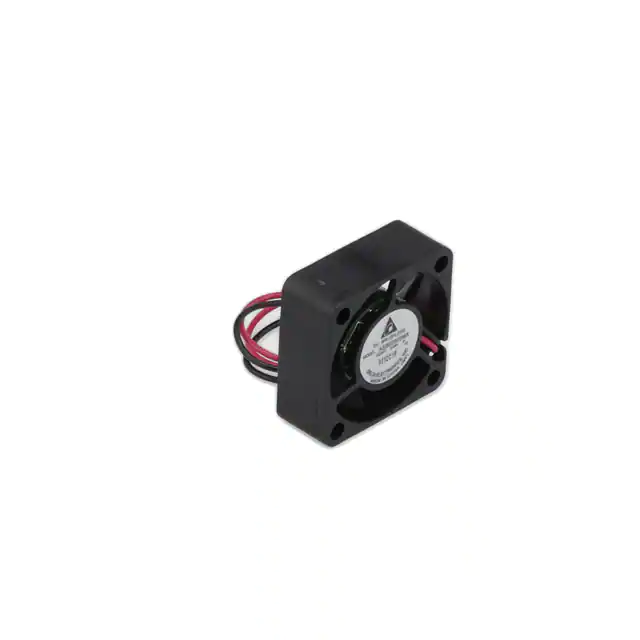

ASB02505MA-AFAN AXIAL 25X10MM 5VDC WIRE |
6,095 | 8.52 |
|
Datasheet |
ASB | Box | Not For New Designs | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.080 in H2O (20.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 11.0dB(A) | 300 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|

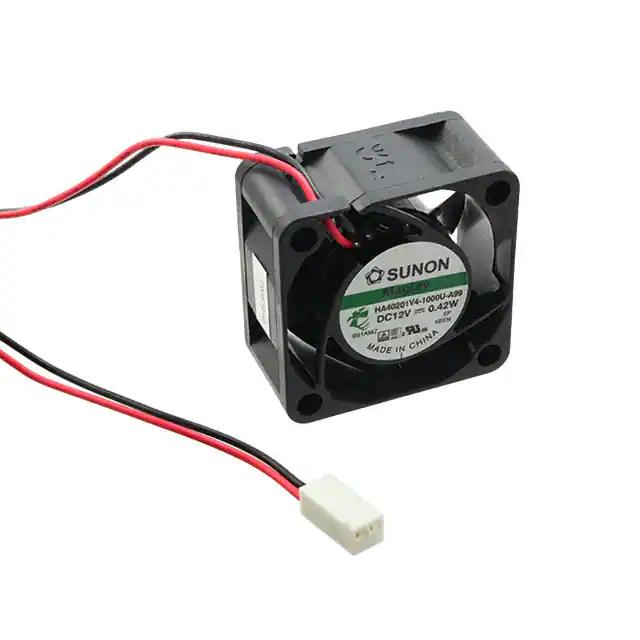

4129/HA40201V4-1000U-A99FAN AXIAL 40X20MM VAPO 12VDC |
777 | 8.63 |
|
Datasheet |
MagLev® HA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 12.3dB(A) | 380 mW | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
HA92251V4-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
870 | 3.60 |
|
Datasheet |
MagLev® HA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.4 CFM (0.795m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 17.7dB(A) | 540 mW | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.203 lb (92.08 g) |
|
MF40202VX-1000U-G99FAN AXIAL 40X20MM 24VDC WIRE |
5,377 | 7.20 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 940 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
04010SS-24N-AT-00FAN AXIAL 40X10MM 24VDC WIRE |
407 | 7.05 |
|
Datasheet |
04010SS | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.1 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.035 lb (15.88 g) |
|
CFM-A225C-220-350FAN AXIAL 120X25.4MM 24VDC WIRE |
418 | 8.78 |
|
Datasheet |
CFM-120C | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.8dB(A) | 4.08 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020V-237-280FAN AXIAL 60X20MM 24VDC WIRE |
349 | 8.78 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 28.0dB(A) | 1.35 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-3007CF-060-188DC AXIAL FAN, 30 MM SQUARE, 7 MM |
159 | 0.00 |
|
Datasheet |
CFM-30CF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 7.50mm | 2.0 CFM (0.056m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 18.8dB(A) | 450 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
04015SS-12N-AT-00FAN AXIAL 40X15MM 12VDC WIRE |
165 | 7.12 |
|
Datasheet |
04015SS | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 720 mW | 8300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.051 lb (23.13 g) |
|
MF80251V3-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
3,042 | 4.81 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 780 mW | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
|

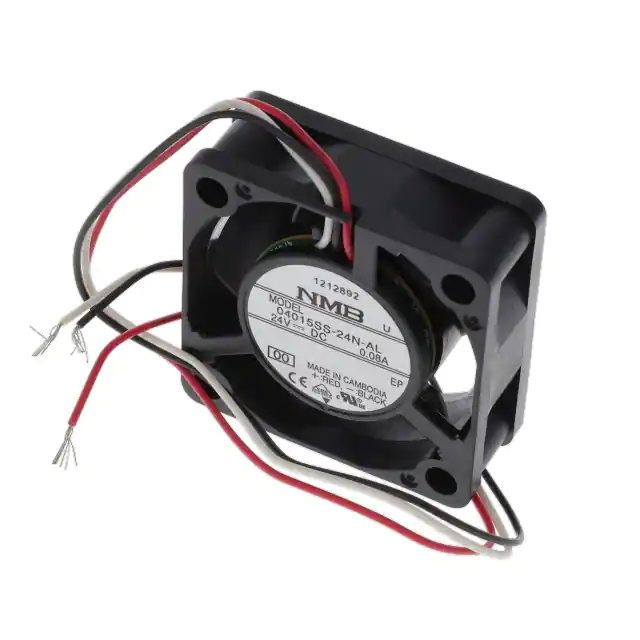

04015SS-24N-AL-00FAN AXIAL 40X15MM 24VDC WIRE |
143 | 7.12 |
|
Datasheet |
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB | 1.2 W | 8300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MF60101V2-1000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
911 | 3.48 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 14.3 CFM (0.400m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.0dB(A) | 900 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.051 lb (23.13 g) |
|

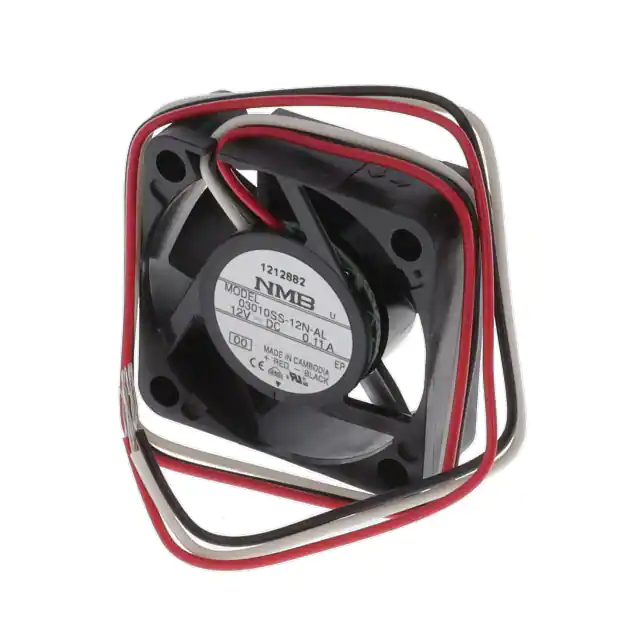

03010SS-12N-AL-00FAN AXIAL 30X10MM 12VDC WIRE |
318 | 7.14 |
|
Datasheet |
03010SS | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB | 960 mW | 10500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

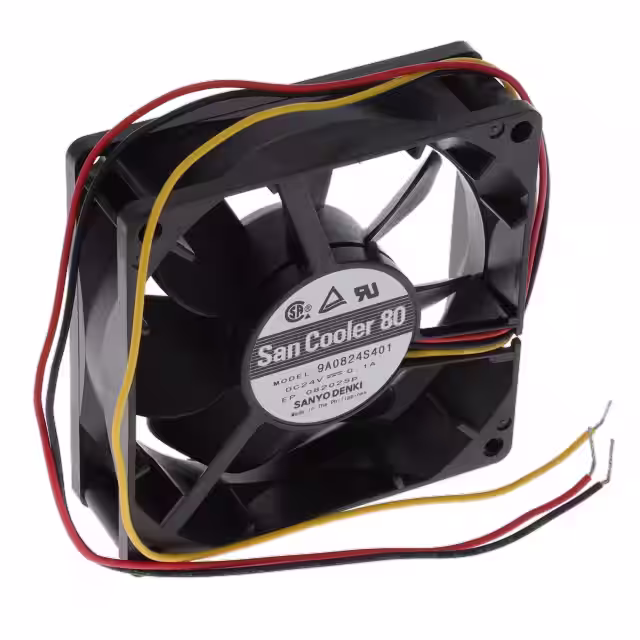

9A0824S401FAN AXIAL 80X25MM 24VDC WIRE |
1,374 | 13.07 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
MF80251V1-1000U-G99FAN AXIAL 80X25MM 12VDC WIRE |
350 | 5.28 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
