DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0624P1K03FAN AXIAL 60X38MM 24VDC WIRE |
3,312 | 15.57 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 2.400 in H2O (597.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 14800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
9GA0912P4S03FAN AXIAL 92X25MM 12VDC WIRE |
4,945 | 24.07 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|
|
9GA0912P4G03FAN AXIAL 92X25MM 12VDC WIRE |
3,778 | 24.07 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 3.36 W | 4400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|
9G0624P4S001FAN AXIAL 60X25MM 24VDC WIRE |
3,827 | 26.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.16 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
AFB1224SHE-T50FFAN AXIAL 120X38MM 24VDC WIRE |
3,301 | 27.18 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 12 W | 3700 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
612NLEFAN AXIAL 60X25.4MM 12VDC WIRE |
4,024 | 31.52 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 12.4 CFM (0.347m³/min) | - | Ball | Tubeaxial | - | 16.0dB(A) | 400 mW | 2500 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
9RA1212P4G001FAN AXIAL 120X25MM 12VDC WIRE |
1,215 | 28.72 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6.6 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9L0412H301FAN AXIAL 40X28MM 12VDC WIRE |
1,007 | 30.23 |
|
Datasheet |
San Ace 40L | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.426 in H2O (106.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 1.8 W | 8400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
422JNFAN AXIAL 40X28MM 12VDC WIRE |
4,389 | 32.97 |
|
Datasheet |
420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.3 CFM (0.512m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 4 W | 14000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.099 lb (44.91 g) |
|
9G0848G101FAN AXIAL 80X38MM 48VDC WIRE |
1,925 | 25.19 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
9CRA0412P4K03FAN AXIAL DUAL 40X48MM 12VDC |
3,458 | 27.10 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 32.5 CFM (0.910m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 19.2 W | 17500 Front, 11700 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|
|
PFC0648SE-00P8FAN AXIAL 60X38MM 48VDC WIRE |
2,515 | 46.47 |
|
Datasheet |
PFC | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 65.3 CFM (1.83m³/min) | 3.503 in H2O (872.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 24.96 W | 17000 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | - |
|

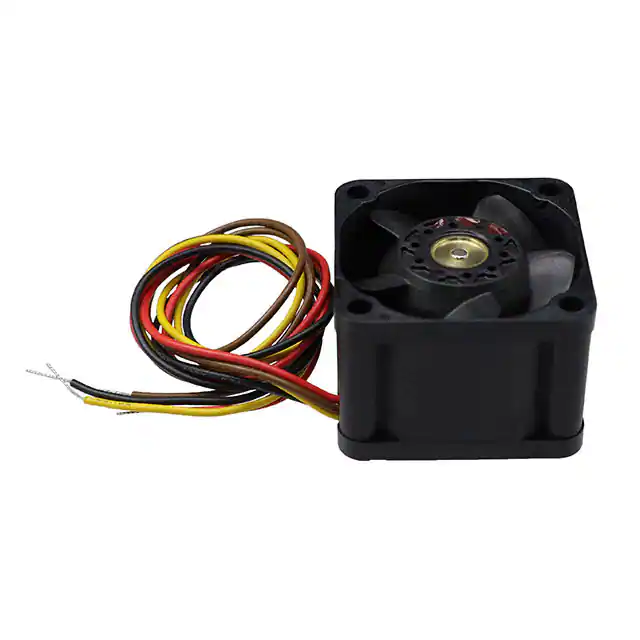

9HVA0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
1,201 | 36.26 |
|
Datasheet |
San Ace 40 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 37.1 CFM (1.04m³/min) | 9.240 in H2O (2300.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 31.2 W | 38000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

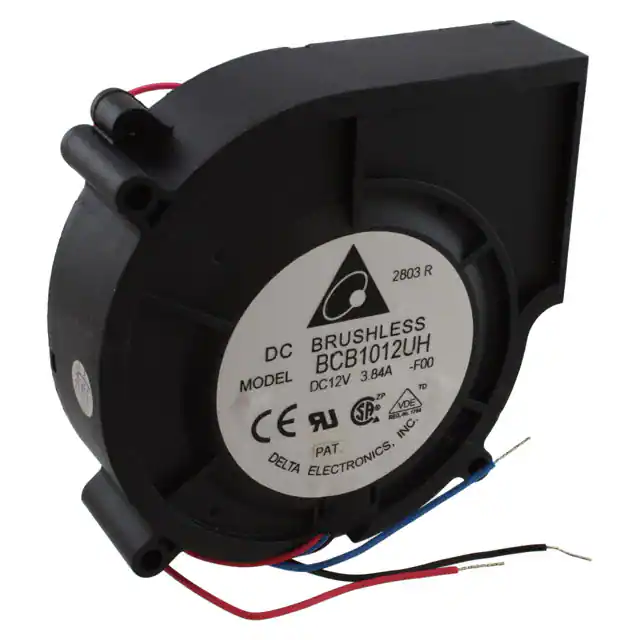

BCB1012UH-F00FAN BLOWER 97.2X25MM 12VDC WIRE |
1,462 | 36.71 |
|
Datasheet |
BCB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 4.053 in H2O (1009.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 67.8dB(A) | 38.4 W | 9300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.391 lb (177.35 g) |
|
9GA0812P1G61FAN AXIAL 80X38MM 12VDC WIRE |
2,705 | 24.38 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 100.6 CFM (2.82m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 14.4 W | 10500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|

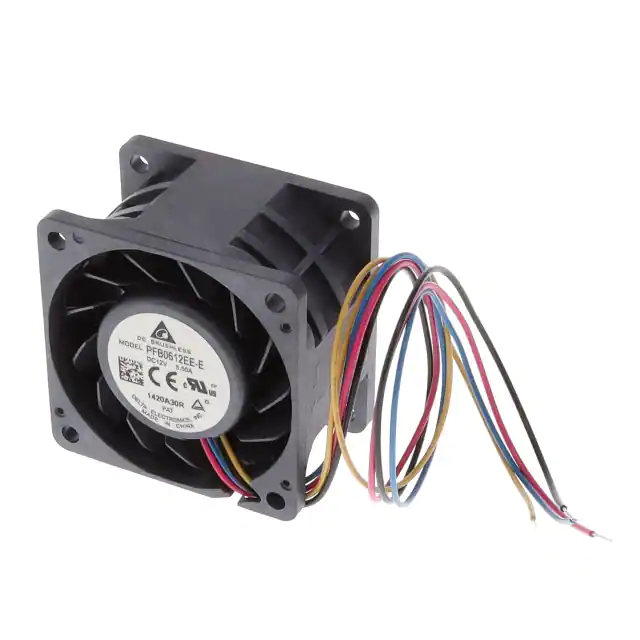

PFB0612EE-EFAN AXIAL 60X38MM 12VDC WIRE |
4,143 | 41.99 |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 77.0 CFM (2.16m³/min) | 7.310 in H2O (1820.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.6dB(A) | 42 W | 25500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
414J/2HHFAN AXIAL 40X25.4MM 24VDC WIRE |
3,597 | 49.23 |
|
Datasheet |
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 25.40mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 3.6 W | 13000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
4414MFAN AXIAL 119X38MM 24VDC WIRE |
1,020 | 52.32 |
|
Datasheet |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 108.3 CFM (3.03m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 4.1 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|

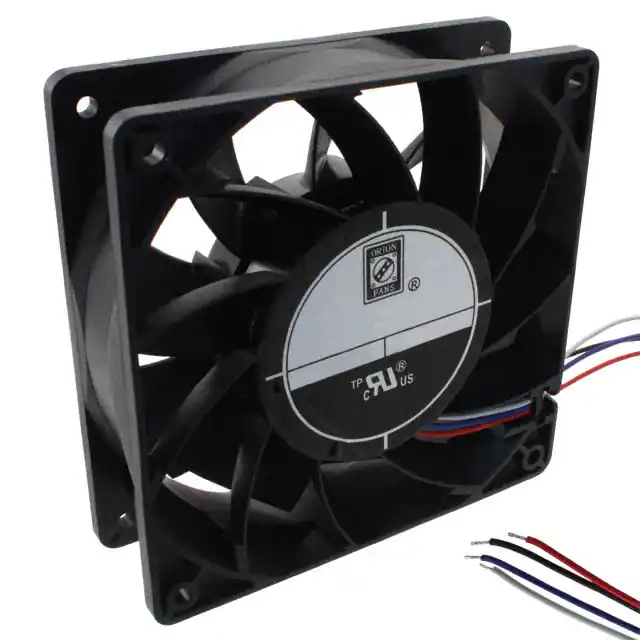

OD1238-24HBVXC10AFAN AXIAL 120X38MM 24VDC WIRE |
4,558 | 45.88 |
|
Datasheet |
OD1238 VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB | 40.8 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
8218JNFAN AXIAL 80X38MM 48VDC WIRE |
4,050 | 64.03 |
|
Datasheet |
8200J | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 78.0 CFM (2.18m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 11 W | 8400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.353 lb (160.12 g) |
