DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

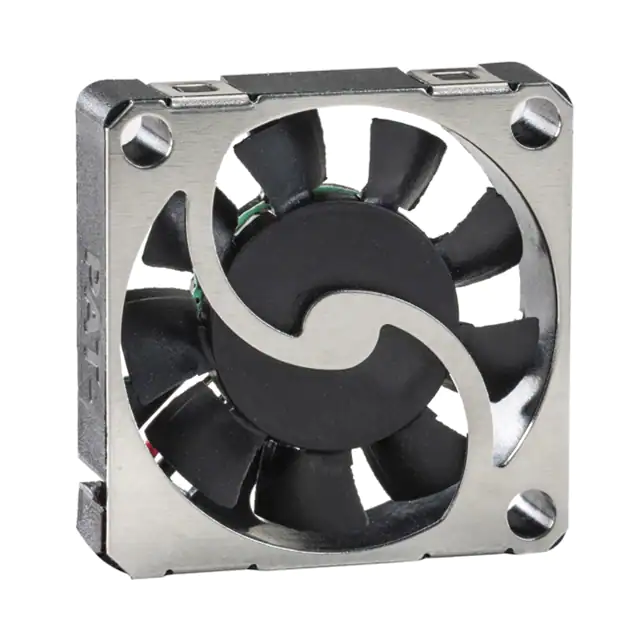

AGA184FAN MICRO FAN 18X4MM 5VDC WIRE |
2,905 | 16.96 |
|
- |
Air-G | Box | Active | 5VDC | Square - 18mm L x 18mm H | 4.00mm | 0.900 CFM (0.026m³/min) | 0.138 in H2O (34.3 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 13000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.004 lb (1.81 g) |
|

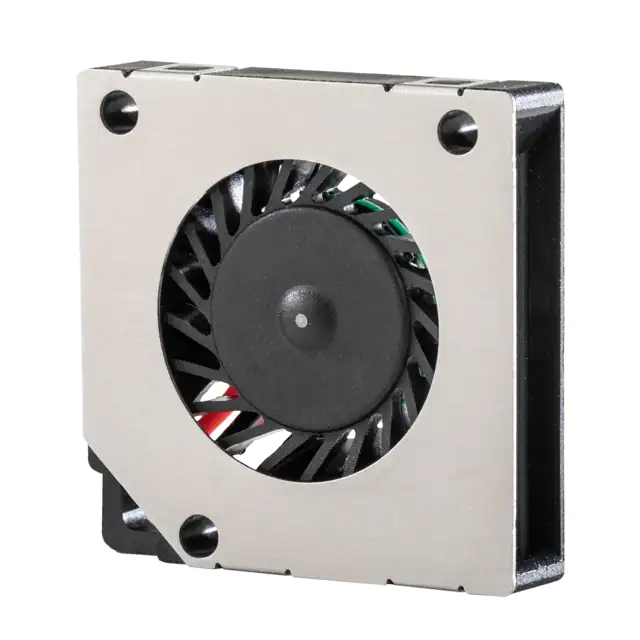

AGB204FAN MICR BLOWER 20X4MM 5VDC WIRE |
1,530 | 16.96 |
|
- |
Air-G | Box | Active | 5VDC | Square - 20mm L x 20mm H | 4.00mm | 0.380 CFM (0.011m³/min) | 0.235 in H2O (58.5 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 19.6dB(A) | - | 11500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.005 lb (2.27 g) |
|

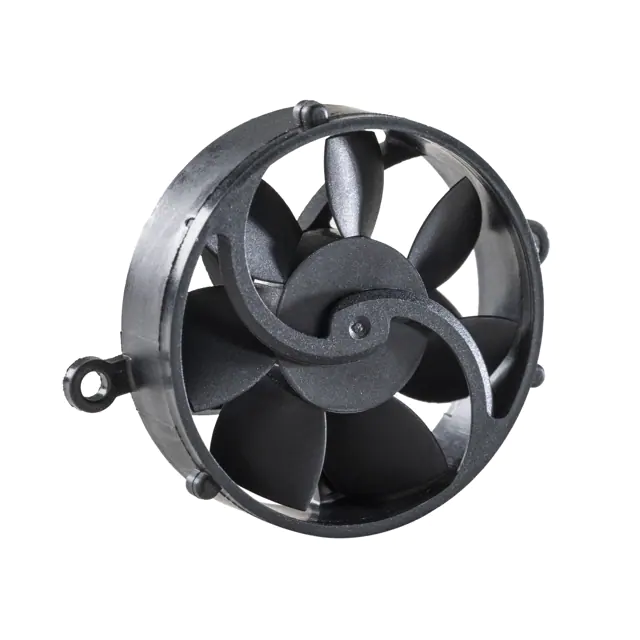

AGA308FAN MICRO FAN 30X8MM 5VDC WIRE |
1,217 | 16.96 |
|
- |
Air-G | Box | Active | 5VDC | Round - 30mm Dia | 8.00mm | 2.6 CFM (0.074m³/min) | 0.103 in H2O (25.6 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 22.0dB(A) | - | 6200 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.008 lb (3.63 g) |
|

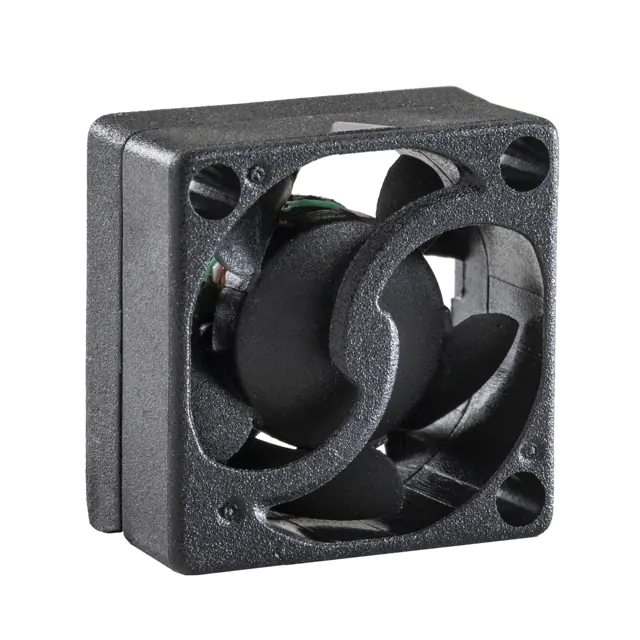

AGA178FAN MICRO FAN 17X8MM 5VDC WIRE |
1,646 | 16.96 |
|
- |
Air-G | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.950 CFM (0.027m³/min) | 0.027 in H2O (6.7 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 18.0dB(A) | - | 16000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.005 lb (2.27 g) |
|

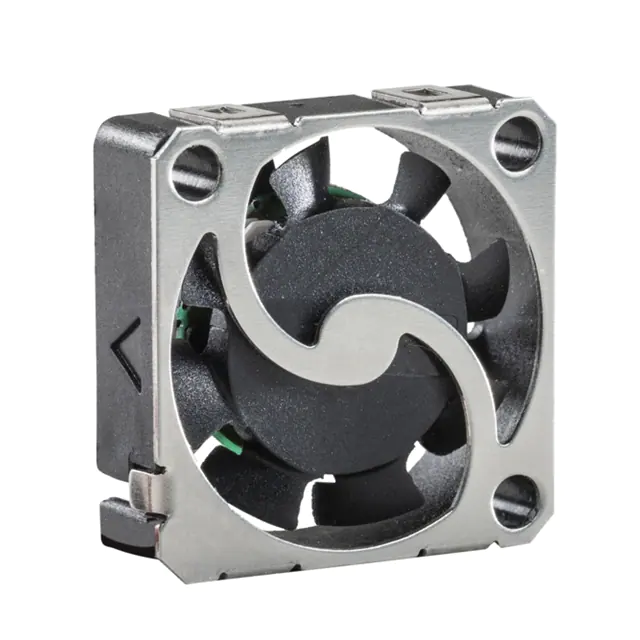

AGA154FAN MICRO FAN 15X4MM 5VDC WIRE |
3,466 | 16.96 |
|
- |
Air-G | Box | Active | 5VDC | Square - 15mm L x 15mm H | 4.00mm | 0.400 CFM (0.011m³/min) | 0.110 in H2O (27.4 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 16000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.003 lb (1.36 g) |
|
3610VL-05W-B79-B50FAN AXIAL 92X25MM 24VDC WIRE |
4,702 | 14.75 |
|
Datasheet |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 9.12 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
QYW09225048BV-12FAN AXIAL 92X25MM 48VDC WIRE |
3,730 | 14.32 |
|
Datasheet |
QYW9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 92.5 CFM (2.59m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | - | 50.3dB(A) | 8.64 W | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225048BH-12FAN AXIAL 92X25MM 48VDC WIRE |
3,473 | 14.32 |
|
Datasheet |
QYW9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 3.36 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
YW04020024BM-N-5FAN AXIAL 40X20MM 24VDC WIRE |
1,172 | 14.48 |
|
Datasheet |
YW04020-N | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
YW04020024BS-N-5FAN AXIAL 40X20MM 24VDC WIRE |
2,444 | 14.48 |
|
Datasheet |
YW04020-N | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 29.5dB(A) | 2.04 W | 8500 RPM | 2 Wire Leads | - | - | - | - |
|
AGB304FAN MICR BLOWER 30X4MM 5VDC WIRE |
2,710 | 17.86 |
|
- |
Air-G | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.00mm | 0.870 CFM (0.025m³/min) | 0.263 in H2O (65.4 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 36.0dB(A) | - | 8500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.01 lb (4.54 g) |
|
|
9RA0624M400260X25MM 24VDC LOW NOISE |
3,900 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA0624F4002160X25MM 24VDC LOW NOISE RBLS |
2,971 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8015X24B1+6-RGRFAN AXIAL 80X15MM 24VDC |
1,189 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

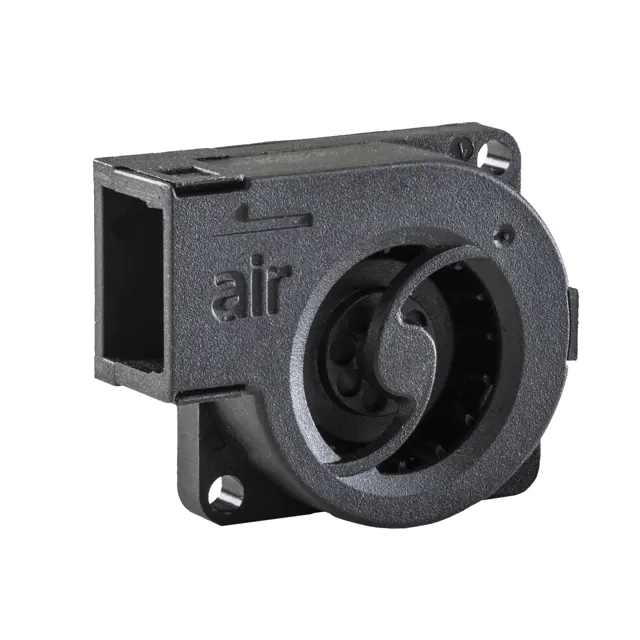

AGB208FAN MICR BLOWER 26X8MM 5VDC WIRE |
4,887 | 18.75 |
|
- |
Air-G | Box | Active | 5VDC | Rectangular - 26mm L x 20mm H | 8.00mm | 0.570 CFM (0.016m³/min) | 0.186 in H2O (46.3 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 9000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.007 lb (3.18 g) |
|

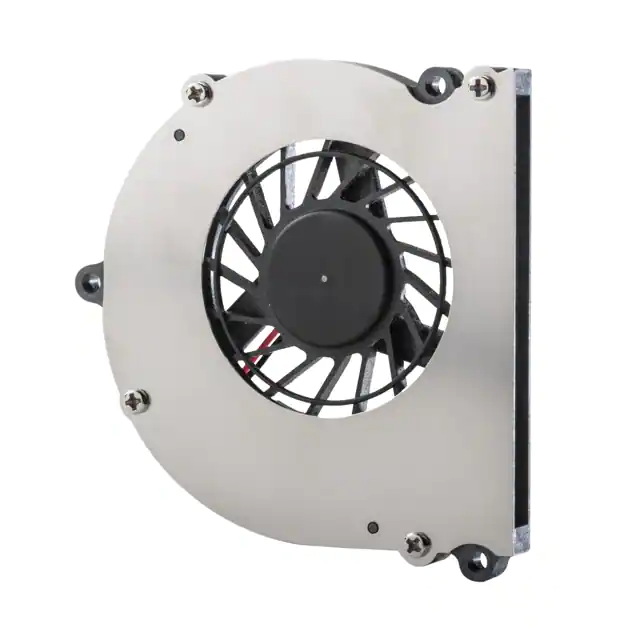

AGB454FAN MICR BLOWER 45X4MM 5VDC WIRE |
3,047 | 19.20 |
|
- |
Air-G | Box | Active | 5VDC | Square - 45mm L x 45mm H | 4.00mm | 1.4 CFM (0.040m³/min) | 0.406 in H2O (101.0 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 30.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.017 lb (7.71 g) |
|
NYW06025024BSS-W-12FAN AXIAL 60X25MM 24VDC WIRE |
3,702 | 16.13 |
|
Datasheet |
NYW06025-W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.2 CFM (0.873m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | - | 51.5dB(A) | 2.64 W | 6500 RPM | 2 Wire Leads | - | - | - | - |
|
|
NYW06025012BH-W-12FAN AXIAL 60X25MM 12VDC WIRE |
2,180 | 16.13 |
|
Datasheet |
NYW06025-W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.5 CFM (0.685m³/min) | 0.366 in H2O (91.2 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 1.44 W | 5100 RPM | 2 Wire Leads | - | - | - | - |
|
|
NYW06025012BSS-W-12FAN AXIAL 60X25MM 12VDC WIRE |
2,796 | 16.13 |
|
Datasheet |
NYW06025-W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 31.2 CFM (0.873m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 2.28 W | 6500 RPM | 2 Wire Leads | - | - | - | - |
|
MD9238E24B-FSR-CC-L10FAN AXIAL 92X38MM 24VDC WIRE |
3,861 | 17.28 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
