DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9B1TS48P0H001FAN BLOWER CF 270X119.0MM 48VDC |
1,212 | 329.85 |
|
Datasheet |
San Ace C225 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 119.0mm | 802.0 CFM (22.46m³/min) | 2.370 in H2O (590.0 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 99.8 W | 2900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 4.2 lbs (1.9 kg) |
|
R1G225-AF11-14FAN IMP MTRZD 225X107.0MM 48VDC |
4,415 | 418.79 |
|
Datasheet |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | 107.0mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 95 W | 2700 RPM | 4 Position Rectangular Connector | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
W1G250-HH37-52FAN AXIAL 280X80MM BALL 24VDC |
4,489 | 447.67 |
|
Datasheet |
W1G250 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 80.00mm | - | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 105 W | 2750 RPM | Terminal Block | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|

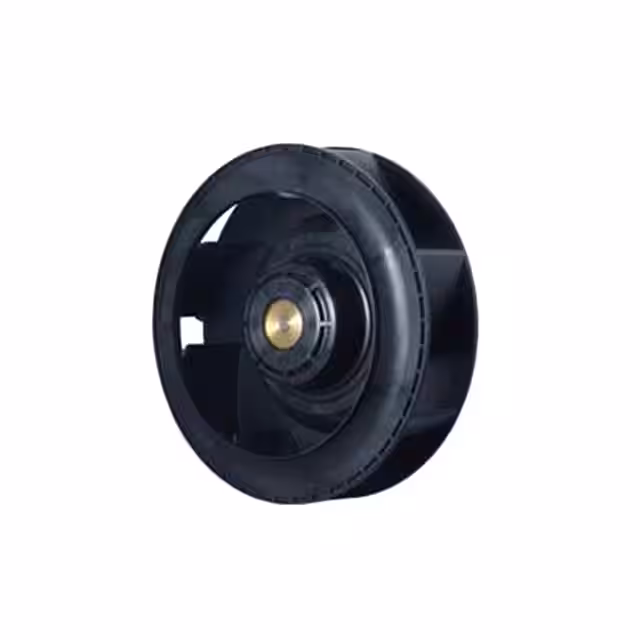

9W2TP24P0H001FAN IMP MTRZD 221X71MM 24VDC |
1,347 | 389.96 |
|
Datasheet |
San Ace 221W | Box | Active | 24VDC | Round - 221mm Dia | 71.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.5dB(A) | 80.4 W | 3050 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
|
D1G146-AA33-52FAN BLOWER CF 205X232.0MM 48VDC |
2,699 | 653.15 |
|
Datasheet |
D1G146 | Bulk | Active | 48VDC | Rectangular/Rounded - 205mm L x 219mm H | 232.0mm | - | - | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 105 W | 1350 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
9TP48P0H001FAN IMP MTRZD 221X71MM 48VDC |
2,489 | 286.32 |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Round - 221mm Dia | 71.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 76.8 W | 3050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 2.4 lbs (1.1 kg) |
|
|
5152HQ/MF75090V1-C330-S9ADC BLOWER 80X87X11MM TACH/PWM |
3,976 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5151HQ/MF75090V1-C331-S9ADC BLOWER 80X87X11MM TACH/PWM |
100 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5142HQ/EE92251B1-000C-G99DC FAN 92X25MM TACH |
2,474 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5145HQ/MF30101V2-1Q03A-G9DDC FAN 30X10MM TACH |
1,420 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5148HQ/MG75080V1-1C011-S9ADC BLOWER 74X76X8MM TACH/PWM |
4,537 | 0.00 |
|
Datasheet |
MG | Box | Active | 5VDC | Rectangular/Rounded - 76mm L x 74mm H | 7.50mm | 5.8 CFM (0.163m³/min) | 0.951 in H2O (236.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 2 W | 4900 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UR | - |
|
|
5155HQ/EG50060S1-C440-S9ADC BLOWER 93X95X7.5MM TACH/PWM |
1,797 | 0.00 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 96.95mm L x 79.1mm H | 10.10mm | 6.5 CFM (0.182m³/min) | 0.430 in H2O (107.1 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.8dB(A) | 2 W | 4300 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UR | - |
|
CHA6012BH-15D12V 0.17A 60*15 BALL 2; 22.39CFM |
3,009 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5149HQ/EG75050S1-C050-S9ADC BLOWER 84X77X7MM TACH/PWM |
3,440 | 0.00 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 83.6mm L x 76.9mm H | 6.80mm | 4.9 CFM (0.137m³/min) | 0.600 in H2O (149.5 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.5dB(A) | 2.25 W | 3400 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
CHA4012BH-10B12V 0.10A 40*10 BALL 2; 9.35CFM |
1,679 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHA6012BH-25C12V 0.09A 60*25 BALL 2; 23.00CFM |
4,392 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5147HQ/EG75071S1-C110-S9ADC BLOWER 78X85X10.5MM TACH/PWM |
4,559 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5153HQ/EG50061S1-1C050-S9ADC BLOWER 93X95X7.5MM TACH/PWM |
2,788 | 0.00 |
|
Datasheet |
EG | Box | Active | 12VDC | Rectangular/Rounded - 95mm L x 93mm H | 7.50mm | 10.6 CFM (0.297m³/min) | 0.890 in H2O (221.7 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.9dB(A) | 4.8 W | 3800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UR | - |
|
|
5144HQ/VF40281BX-Q228-S9HDC FAN 40X28MM TACH/PWM |
1,642 | 0.00 |
|
Datasheet |
- | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 28.00mm | 36.7 CFM (1.03m³/min) | 4.680 in H2O (1165.7 Pa) | Ball | Tubeaxial | Auto Restart, Polarity Protection | 68.1dB(A) | 25.2 W | 27000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
08015SS-12M-AA-00FAN AXIAL 80X15MM 12VDC WIRE |
2,130 | 6.11 |
|
Datasheet |
08015SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 31.0dB(A) | 1.8 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
