DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

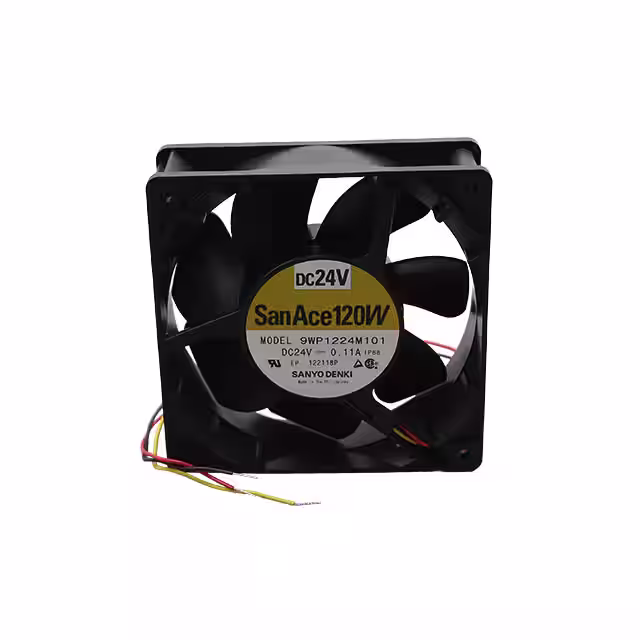

9WP1224M101FAN AXIAL 120X38MM 24VDC WIRE |
4,632 | 45.76 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.64 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

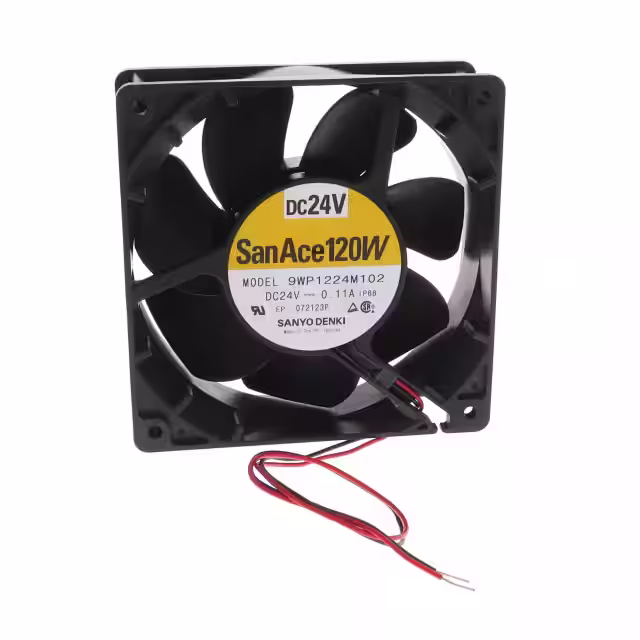

9WP1224M102FAN AXIAL 120X38MM 24VDC WIRE |
1,862 | 45.76 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.64 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
9WP1212M1011FAN AXIAL 120X38MM 12VDC WIRE |
1,056 | 47.59 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.52 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

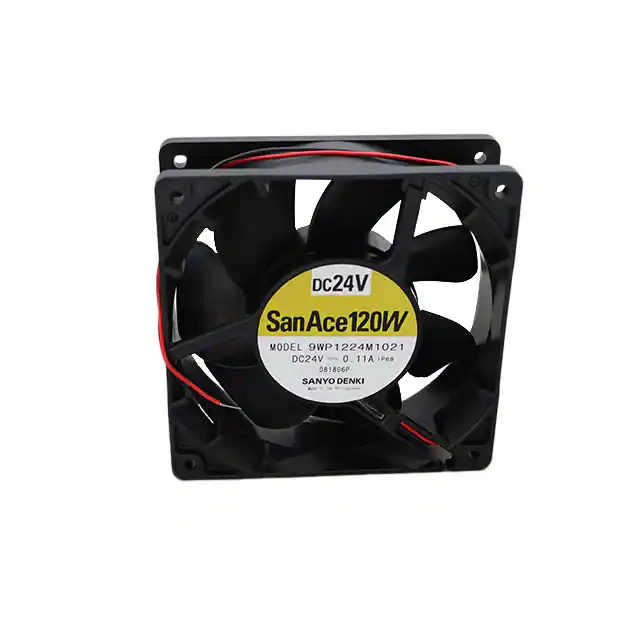

9WP1224M1021FAN AXIAL 120X38MM 24VDC WIRE |
3,127 | 45.76 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.64 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
_Series.jpg)
|
3412NGMVFAN AXIAL 92X25.4MM 12VDC WIRE |
1,215 | 45.68 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 42.4 CFM (1.19m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 2 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|

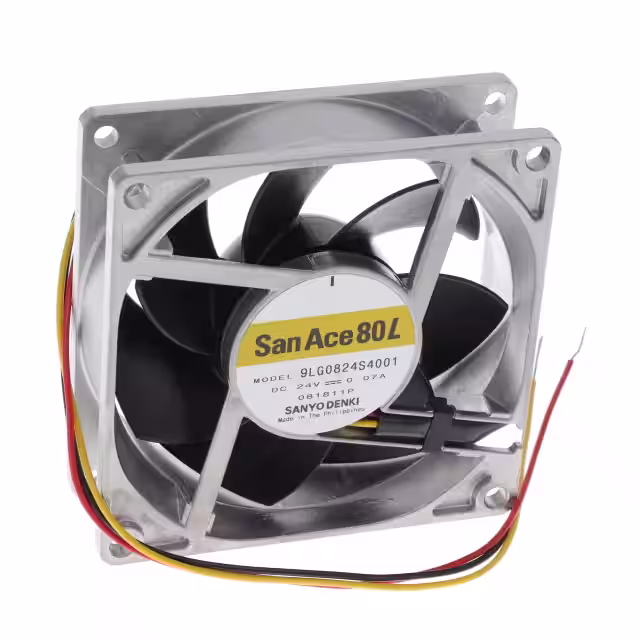

9LG0824S4001FAN AXIAL 80X25MM 24VDC WIRE |
1,136 | 62.32 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.68 W | - | 3 Wire Leads | - | - | - | - |
|

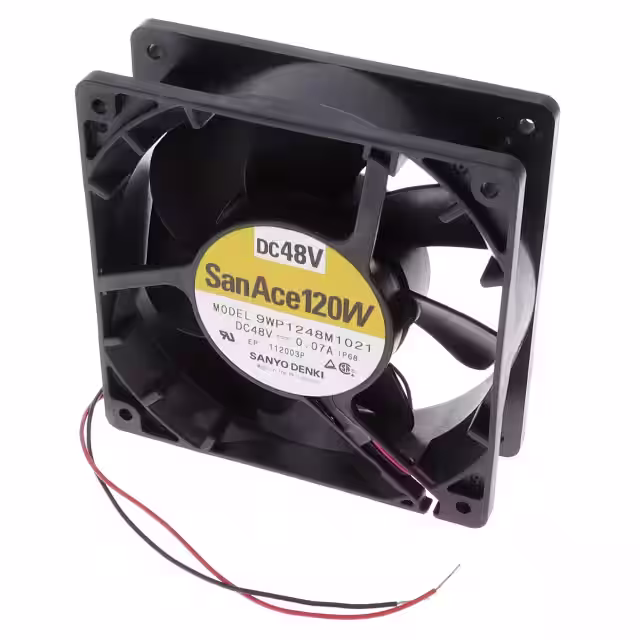

9WP1248M1021FAN AXIAL 120X38MM 48VDC WIRE |
3,241 | 46.96 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.36 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

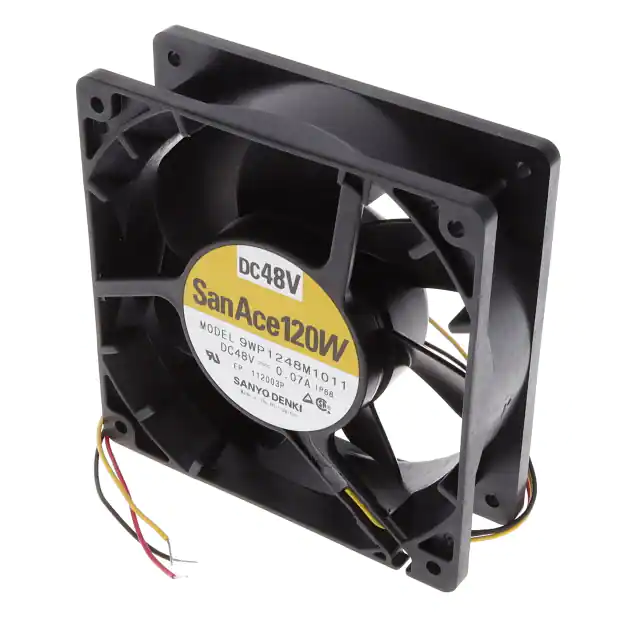

9WP1248M1011FAN AXIAL 120X38MM 48VDC WIRE |
3,598 | 46.96 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.36 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

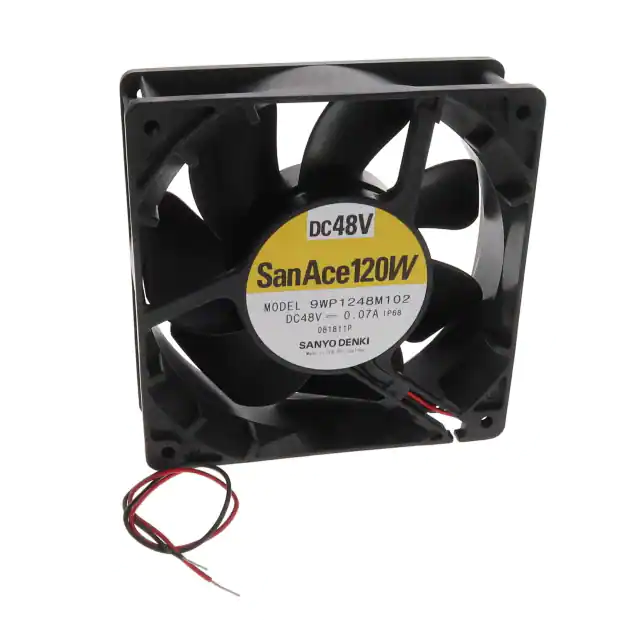

9WP1248M102FAN AXIAL 120X38MM 48VDC WIRE |
3,165 | 46.96 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.36 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
8412N/2FAN AXIAL 80X25.4MM 12VDC WIRE |
1,154 | 47.43 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | - |
|
3314NHFAN AXIAL 92X32MM 24VDC WIRE |
4,904 | 49.95 |
|
Datasheet |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 54.7 CFM (1.53m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 2.6 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
17001138AFAN AXIAL 12VDC SDD12B1E2X-E3 |
3,521 | 72.85 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 41.78mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.6dB(A) | 3 W | 3500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
08038DA-12T-E6E-F80X80X38MM, 12VDC, 17,000 RPM, 1 |
3,307 | 0.00 |
|
Datasheet |
08038DA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 137.7 CFM (3.86m³/min) | 5.480 in H2O (1365 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 76.5dB(A) | 79.2 W | 17000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
5212NMFAN AXIAL 127X38MM 12VDC WIRE |
2,024 | 65.71 |
|
Datasheet |
5200N | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.6 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|
|
3312NLFAN AXIAL 92X32MM 12VDC WIRE |
1,209 | 49.95 |
|
Datasheet |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 800 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
|
9GA1212S40011FAN AXIAL 120X25.4MM 12VDC WIRE |
1,344 | 49.26 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.0dB(A) | 7.32 W | 5400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
|
4890HQ-EFK6B51B1-1C01U-G99DC BLOWER, 193.6X206X115MM, 2 BA |
3,302 | 66.73 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3312NMFAN AXIAL 92X32MM 12VDC WIRE |
2,784 | 49.95 |
|
Datasheet |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 40.0 CFM (1.12m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.3 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
|
3318NHFAN AXIAL 92X32MM 48VDC WIRE |
4,091 | 48.05 |
|
Datasheet |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 55.0 CFM (1.54m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 3.5 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
9WS0924H402FAN AXIAL 92X25MM 24VDC WIRE |
3,156 | 56.22 |
|
Datasheet |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.4 W | 2850 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
