DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MH4028X12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
2,364 | 14.31 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.2 CFM (0.706m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 63.0dB(A) | - | 16500 RPM | 4 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|

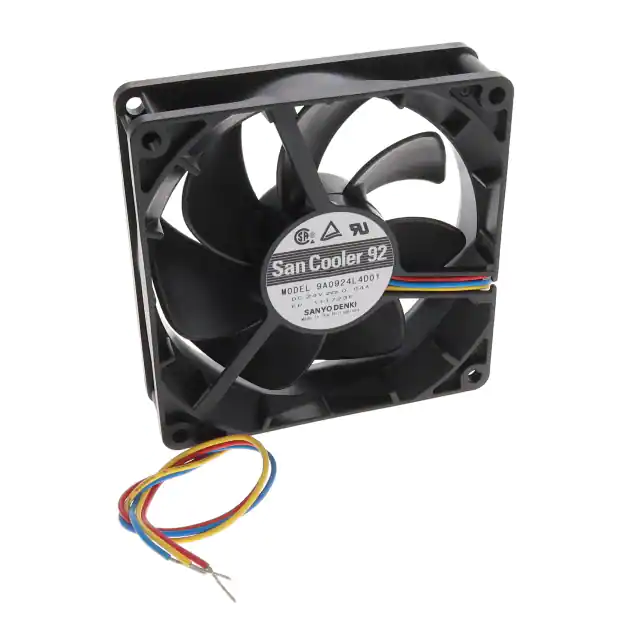

9A0924L4D01FAN AXIAL 92X25MM 24VDC WIRE |
2,866 | 13.07 |
|
Datasheet |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 960 mW | 1750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
CFM-A225V-127-405-20FAN AXIAL 120X25MM 12VDC WIRE |
3,670 | 15.00 |
|
Datasheet |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.5dB(A) | 3.46 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
F8025X12B3-FHRFAN AXIAL 80X25MM 12VDC WIRE |
4,958 | 14.59 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
OD8015-12HB01AFAN AXIAL 80X15MM 12VDC WIRE |
1,252 | 15.69 |
|
Datasheet |
OD8015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|

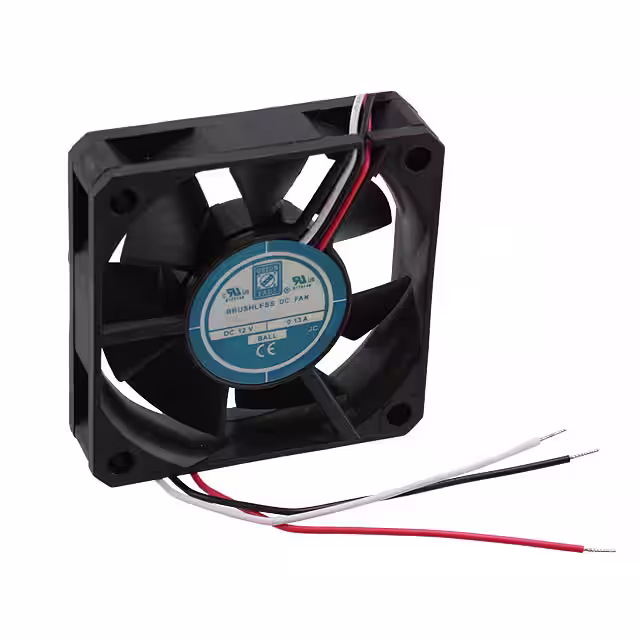

OD6015-12HB01AFAN AXIAL 60X15MM 12VDC WIRE |
1,404 | 15.69 |
|
Datasheet |
OD6015 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB | 1.08 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.079 lb (35.83 g) |
|
|
OD8015-12MB02AFAN AXIAL 80X15.5MM 12VDC WIRE |
1,722 | 15.69 |
|
Datasheet |
OD8015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.50mm | 22.0 CFM (0.616m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB | 1.8 W | 2440 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.137 lb (62.14 g) |
|
109P0412G3D01FAN AXIAL 40X28MM 12VDC WIRE |
2,243 | 14.36 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 3.72 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
CFM-9238B-240-473FAN AXIAL 92X37.5MM 24VDC WIRE |
4,733 | 15.18 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.3dB(A) | 9.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9RA0612H40011FAN AXIAL 60X25MM 12VDC WIRE |
100 | 17.22 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.1 CFM (0.535m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 840 mW | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

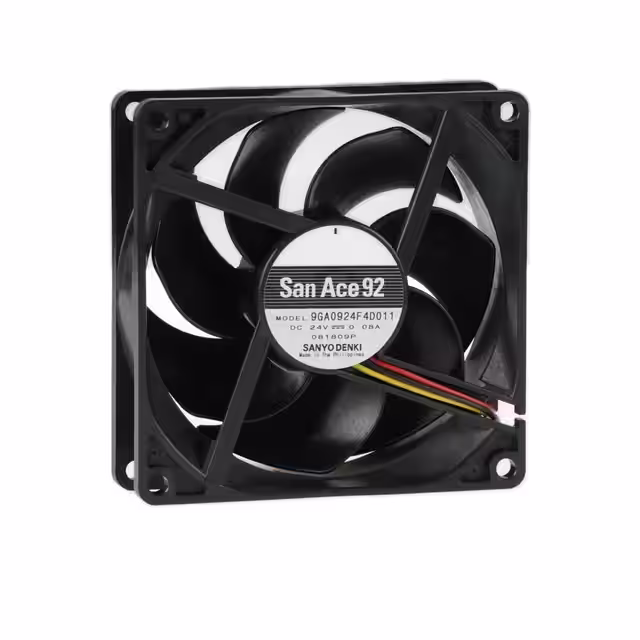

9GA0924F4D011FAN AXIAL 92X25MM 24VDC WIRE |
4,674 | 25.03 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.92 W | - | 3 Wire Leads | - | - | - | - |
|
109R0812M4021FAN AXIAL 80X25MM 12VDC WIRE |
1,262 | 14.04 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.08 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
F6025X12B-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
3,611 | 15.06 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
109R0612S4021FAN AXIAL 60X25MM 12VDC WIRE |
2,932 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.04 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0812H4D011FAN AXIAL 80X25MM 12VDC WIRE |
4,288 | 14.36 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.56 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

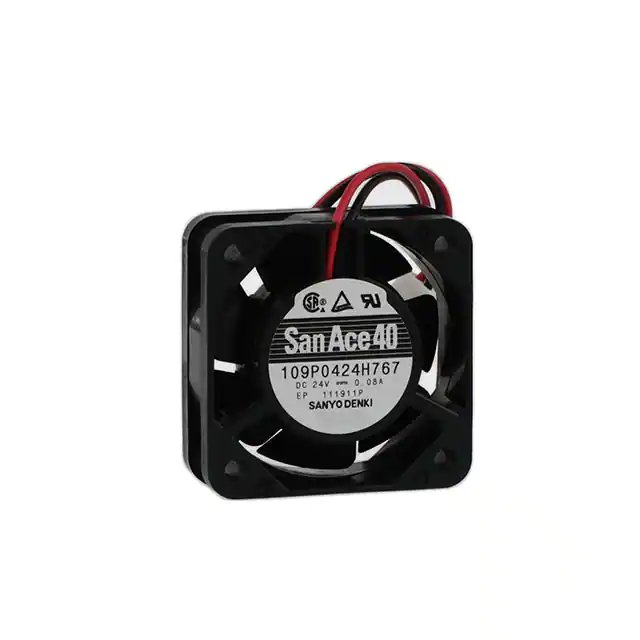

109P0424H767FAN AXIAL 40X15MM 24VDC |
4,143 | 11.92 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | - | 7700 RPM | 2 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|

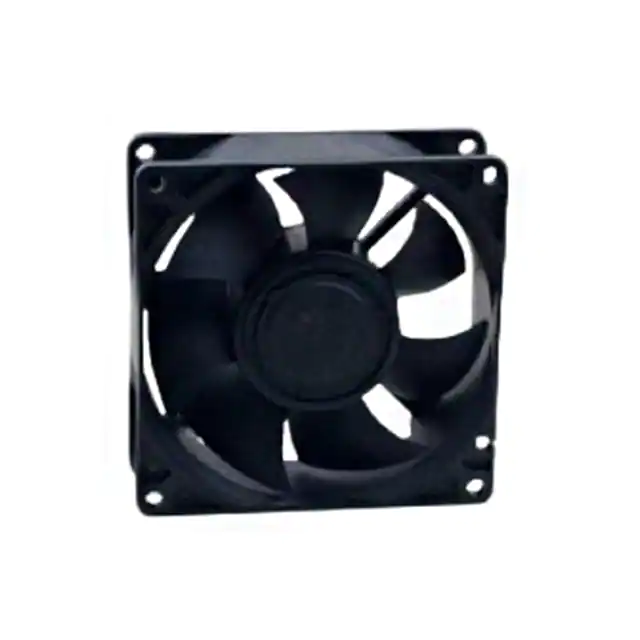

MR9232E24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
2,262 | 15.25 |
|
Datasheet |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 96.0 CFM (2.69m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 52.8dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|
F6025E12B-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
3,244 | 15.06 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

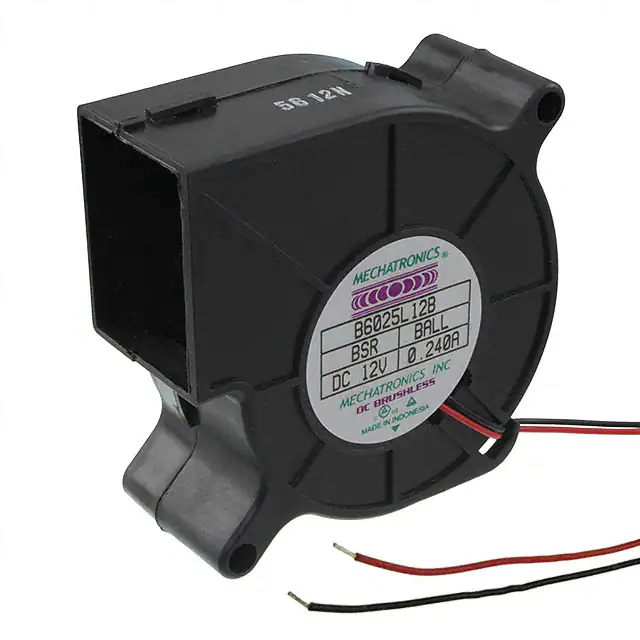

B6025L12B-BSRFAN BLOWER 60X25MM 12VDC WIRE |
1,721 | 15.43 |
|
Datasheet |
B6025 | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 3.0 CFM (0.084m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | - | 0.098 lb (44.45 g) |
|
109R0605F401FAN AXIAL 60X25MM BALL 5VDC WIRE |
3,578 | 14.36 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
