DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR3010E12B1+6-RSRFAN AXIAL 30X10MM 12VDC WIRE |
329 | 18.16 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 7.7 CFM (0.216m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | - | 11500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|

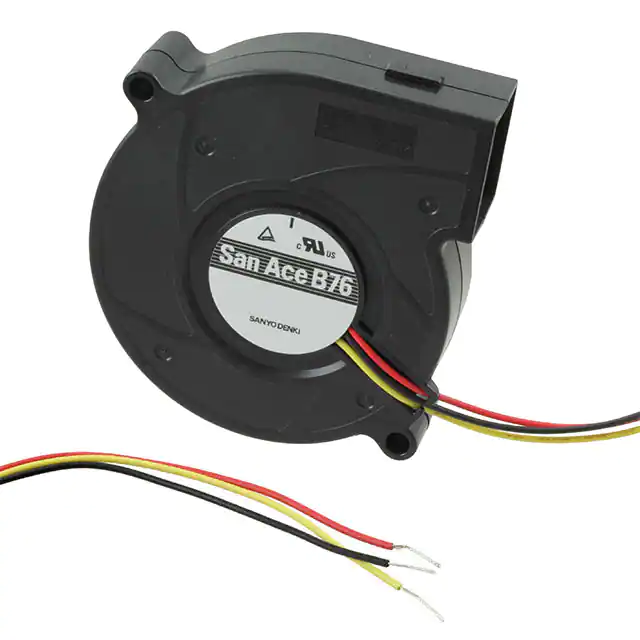

9BD12SC6-1FAN BLOWER 76X20MM 12VDC WIRE |
488 | 19.29 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3.36 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
AFC0612DB-F00FAN AXIAL 60X15MM 12VDC WIRE |
3,947 | 18.53 |
|
Datasheet |
AFC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 29.2 CFM (0.818m³/min) | 0.517 in H2O (128.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 3.96 W | 7200 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, TUV, UL | 0.098 lb (44.45 g) |
|

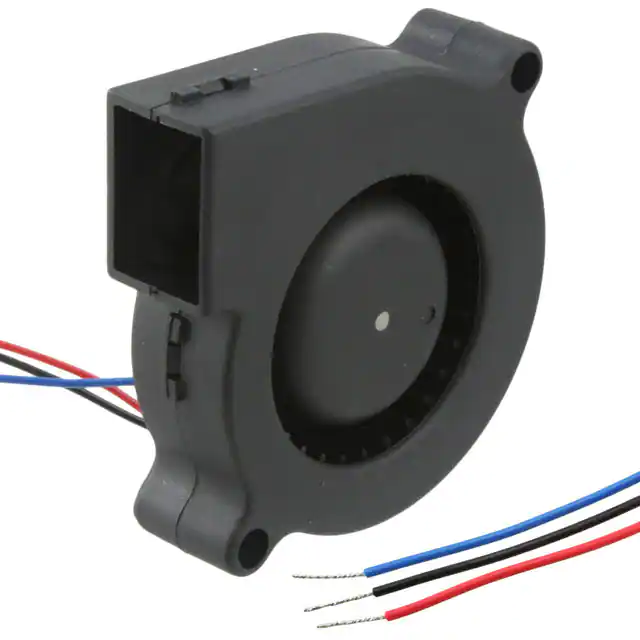

BFB0512HH-F00FAN BLOWER 51.3X15MM 12VDC WIRE |
653 | 17.49 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 51.3mm L x 51mm H | 15.00mm | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 2.52 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|

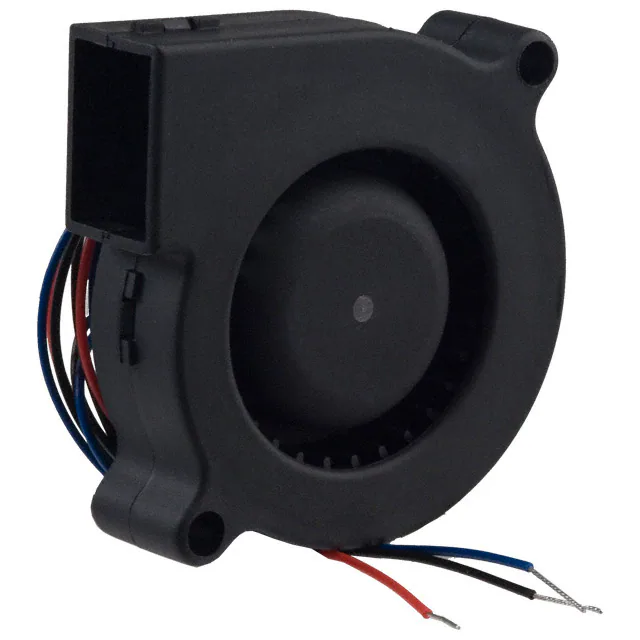

BFB0524H-R00FAN BLOWER 51.3X15MM 24VDC WIRE |
113 | 17.49 |
|
Datasheet |
BFB | Box | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 15.00mm | 3.9 CFM (0.109m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Blower | Locked Rotor Sensor | 38.0dB(A) | 2.16 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|

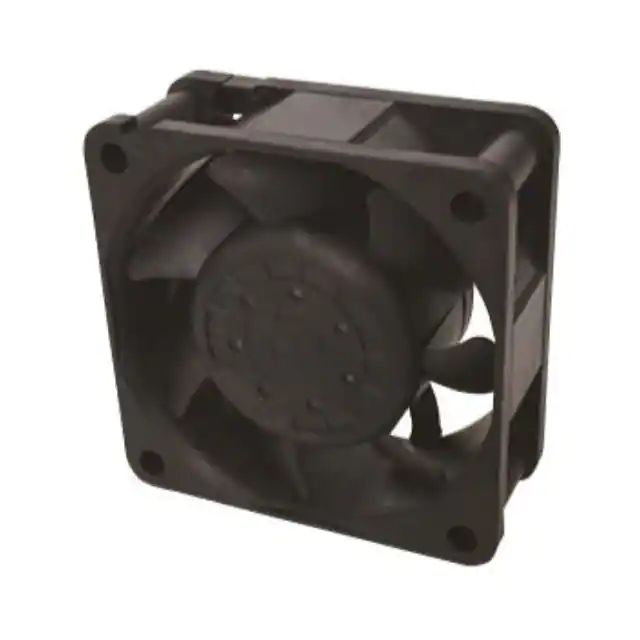

06025DA-12R-AU-02FAN AXIAL 60X25MM 12VDC WIRE |
563 | 19.71 |
|
Datasheet |
06025DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 45.6 CFM (1.28m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.0dB | 8.04 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|

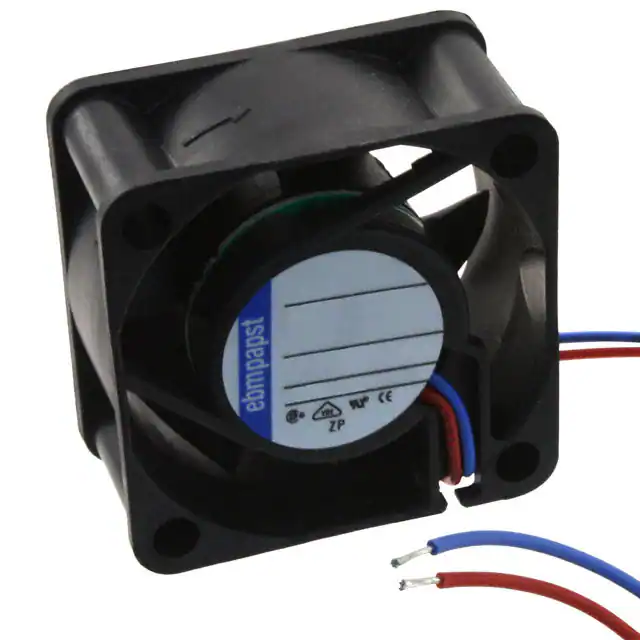

414FAN AXIAL 40X20MM 24VDC WIRE |
540 | 0.00 |
|
Datasheet |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | - | 18.0dB(A) | 1 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|

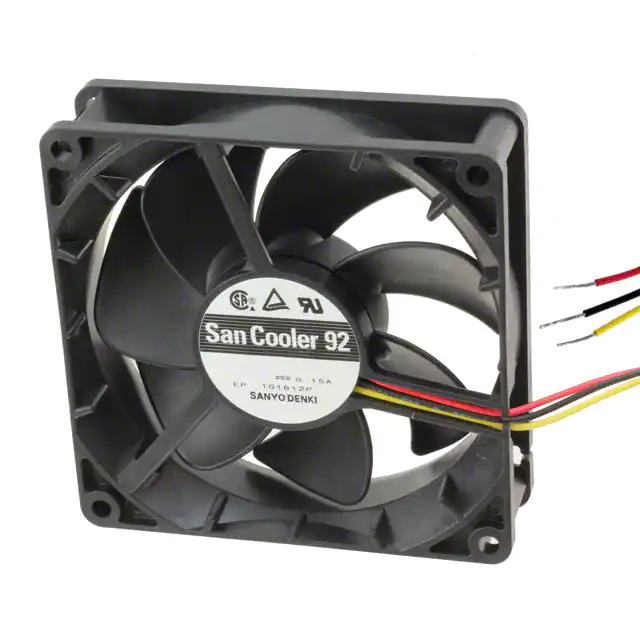

9A0912S401FAN AXIAL 92X25MM 12VDC WIRE |
744 | 13.07 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.24 W | 3550 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

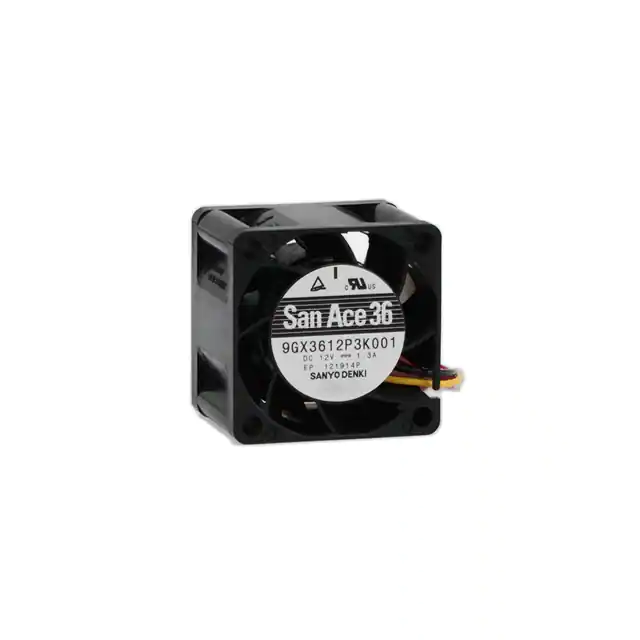

9GX3612P3K001FAN AXIAL 36X28MM 12VDC WIRE |
565 | 16.30 |
|
Datasheet |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 24.4 CFM (0.683m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 15.6 W | 24000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.102 lb (46.27 g) |
|

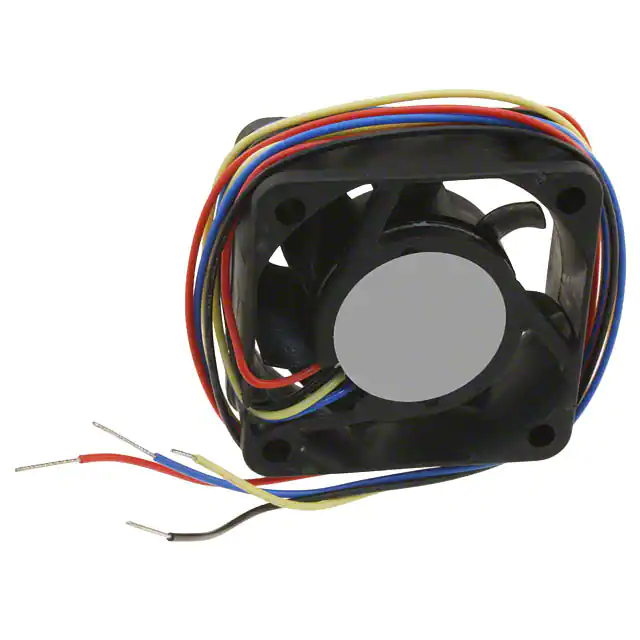

AFB0412VHB-TP29FAN AXIAL 40X15MM 12VDC WIRE |
1,767 | 17.37 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.5dB(A) | 2.16 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|

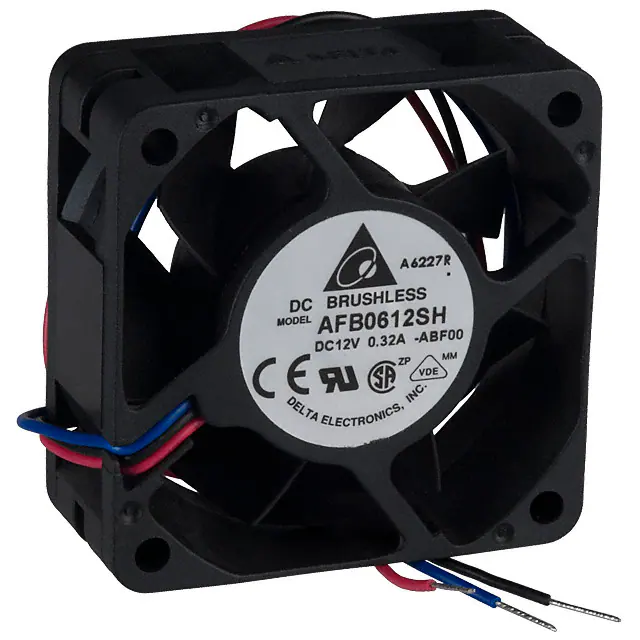

AFB0612SH-ABF00FAN AXIAL 60X25.4MM 12VDC WIRE |
8,760 | 16.82 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 34.2 CFM (0.958m³/min) | 0.422 in H2O (105.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.5dB(A) | 3.24 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0612EH-ABF00FAN AXIAL 60X25.4MM 12VDC WIRE |
1,178 | 16.82 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

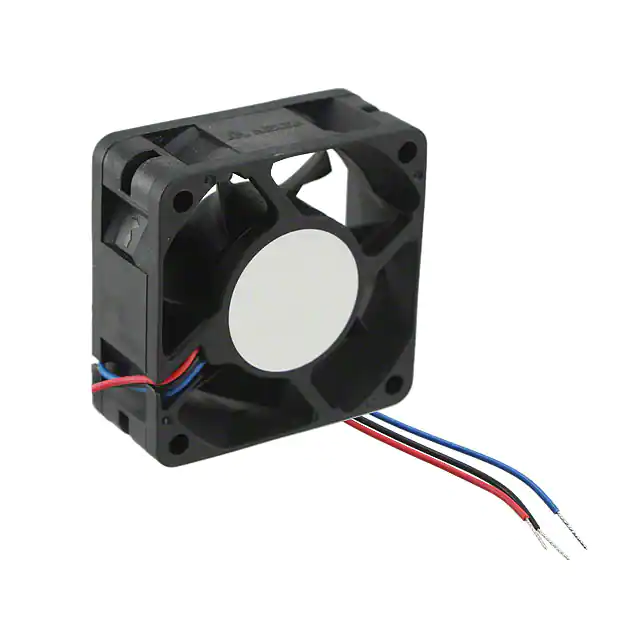

AFB0624EH-ABR00FAN AXIAL 60X25.4MM 24VDC WIRE |
282 | 16.82 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 5.76 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
9GA0412P3K01FAN AXIAL 40X28MM 12VDC WIRE |
979 | 18.29 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|

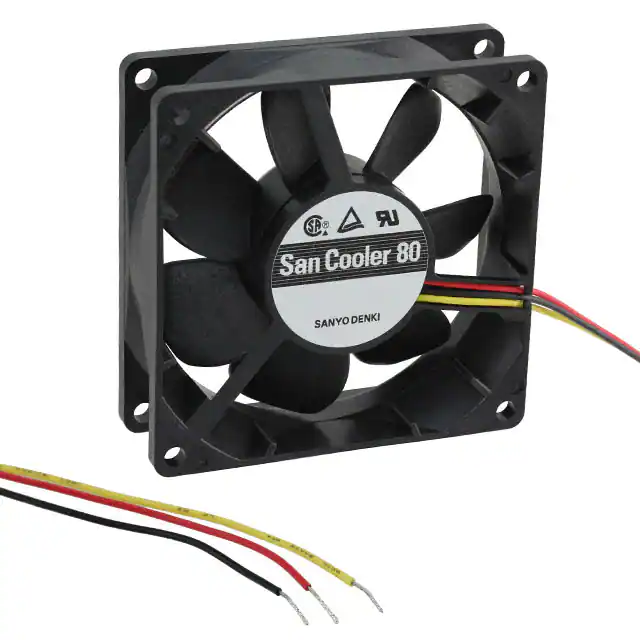

9A0812G401FAN AXIAL 80X25MM 12VDC WIRE |
1,550 | 13.07 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

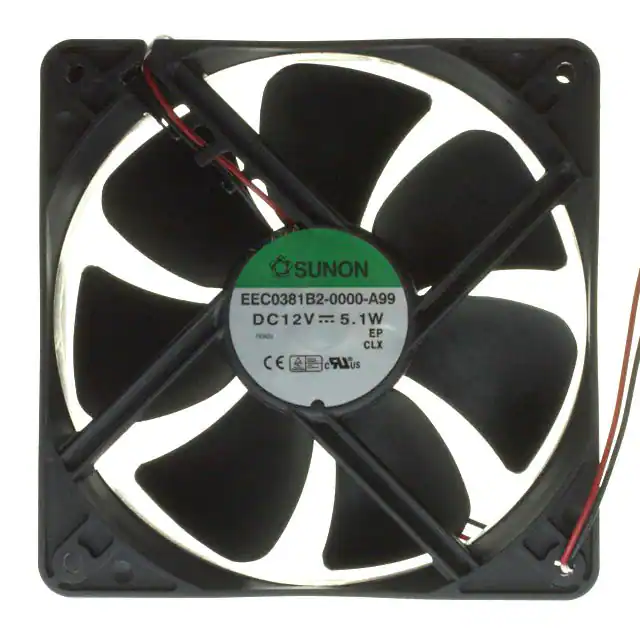

EEC0381B2-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
2,444 | 13.95 |
|
Datasheet |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 5.1 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|

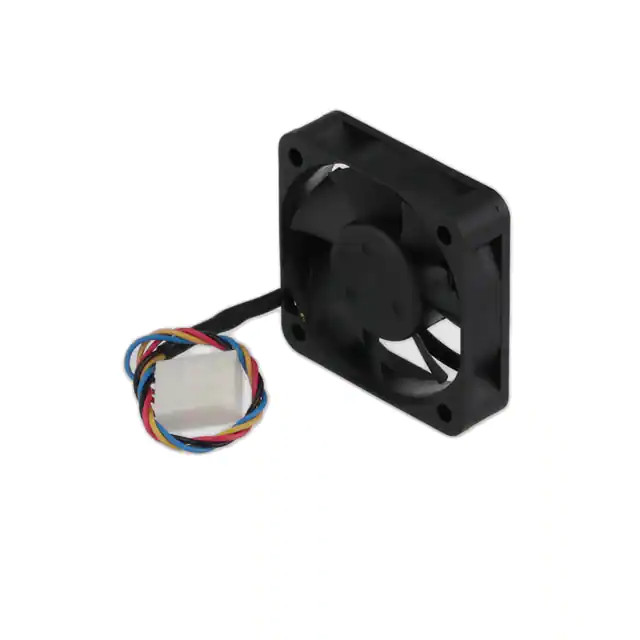

AFB0405MA-AFGEFAN AXIAL 40X10MM 5VDC RECT CONN |
1,177 | 17.32 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | 250 mW | 5000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.031 lb (14.06 g) |
|
|
9GA0424P6H001FAN AXIAL 40X20MM 24VDC WIRE |
2,298 | 18.46 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.770 in H2O (191.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 1.92 W | 12400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
|
9GA0412P6G001FAN AXIAL 40X20MM 12VDC WIRE |
1,375 | 16.00 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 2.76 W | 16000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
|
9GA0424P6F001FAN AXIAL 40X20MM 24VDC WIRE |
484 | 18.46 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
