DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802512U2B-BT0FAN AXIAL 80X25.4MM 12VDC WIRE |
441 | 11.01 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 83.6 CFM (2.34m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 12 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
CFM-9225BG-240-438-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
195 | 0.00 |
|
Datasheet |
CFM-92BG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.5 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.8dB(A) | 4.8 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109R0612G4D01FAN AXIAL 60X25MM 12VDC WIRE |
190 | 12.40 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
DC0803212M2B-2T0FAN AXIAL 80X32MM 12VDC WIRE |
499 | 10.84 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.2 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.071 lb (32.21 g) |
|
|
CFM-9225BG-250-502-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
194 | 0.00 |
|
Datasheet |
CFM-92BG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 88.2 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.2dB(A) | 6.48 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109R0624J4021FAN AXIAL 60X25MM 24VDC WIRE |
556 | 13.12 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.76 W | 7600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
DC0382024U2B-BT0FAN 38X20MM 24VDC PWM/TACH |
596 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 38mm L x 38mm H | 20.00mm | 9.7 CFM (0.272m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 7.2 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-9225BG-160-545-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
188 | 0.00 |
|
Datasheet |
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 106.3 CFM (2.98m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 54.5dB(A) | 9.84 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0812SH-AA39AXIAL SQUARE 80X25.4 MM 12V PWM |
372 | 0.00 |
|
Datasheet |
QFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 55.3 CFM (1.55m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.2dB(A) | 3.96 W | 4300 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
9GA0612L7D01FAN AXIAL 60X15MM 12VDC WIRE |
190 | 12.73 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 10.9 CFM (0.305m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 17.0dB(A) | 360 mW | 2800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
DC0382812V2B-BT0FAN AXIAL 38X28MM 12VDC WIRE |
598 | 11.01 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.8 CFM (0.582m³/min) | 1.670 in H2O (416.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 10.2 W | 17000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.067 lb (30.39 g) |
|
|
CFM-6025BG-1130-606-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
153 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 56.7 CFM (1.59m³/min) | 1.980 in H2O (493.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.6dB(A) | 21 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB1212SH-R00FAN AXIAL 120X25.4MM 12VDC WIRE |
108 | 15.27 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
AFB0812LB-R00FAN AXIAL 80X15MM 12VDC WIRE |
168 | 10.01 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 24.7 CFM (0.692m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.5dB(A) | 1.08 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
AFB0805H-R00FAN AXIAL 80X25.4MM 5VDC WIRE |
135 | 10.01 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.40mm | 35.3 CFM (0.988m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 2.15 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
CFM-6025BG-2130-606-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
136 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 56.7 CFM (1.59m³/min) | 1.980 in H2O (493.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.6dB(A) | 19.2 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0402812W2B-BT0FAN AXIAL 40X28MM 12VDC WIRE |
564 | 12.89 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 16.8 W | 23000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
AFB0612DH-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
168 | 12.91 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 50.4 CFM (1.41m³/min) | 0.926 in H2O (230.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 10.08 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

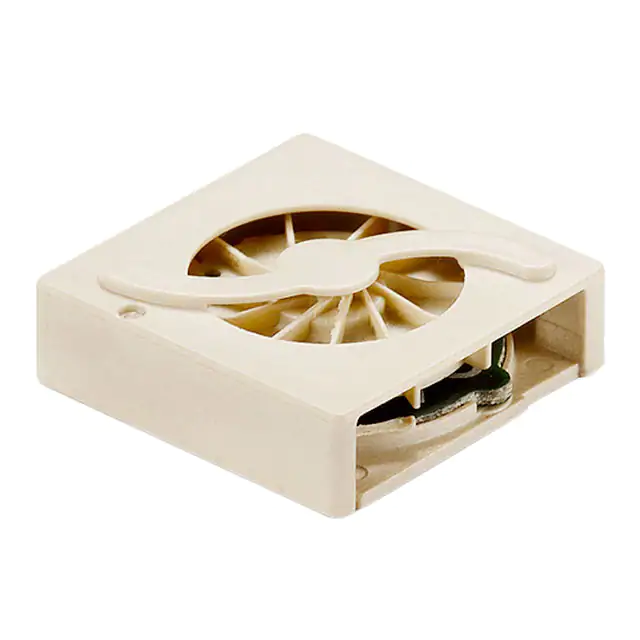

UB3C3-700TCFAN BLOWER 12X3MM VAPO 3VDC WIRE |
425 | 17.05 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 26.0dB(A) | 100 mW | 15500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
|
09225VA-24N-EL-00FAN AXIAL 92X25MM 24VDC WIRE |
124 | 0.00 |
|
Datasheet |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.0dB | 5.3 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
