DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-9238S-130-410FAN AXIAL 92X37.5MM 12VDC WIRE |
193 | 10.40 |
|
Datasheet |
CFM-92S | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 41.1dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7025B-150-443FAN AXIAL 70X25.2MM 12VDC WIRE |
137 | 10.67 |
|
Datasheet |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 42.7 CFM (1.20m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 41.9dB(A) | 6 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
G4020M12B2-RSR-EMFAN AXIAL 40X20MM 12VDC WIRE |
107 | 15.71 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
OD4028-12HHBFAN AXIAL 40X28MM 12VDC WIRE |
490 | 13.17 |
|
Datasheet |
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

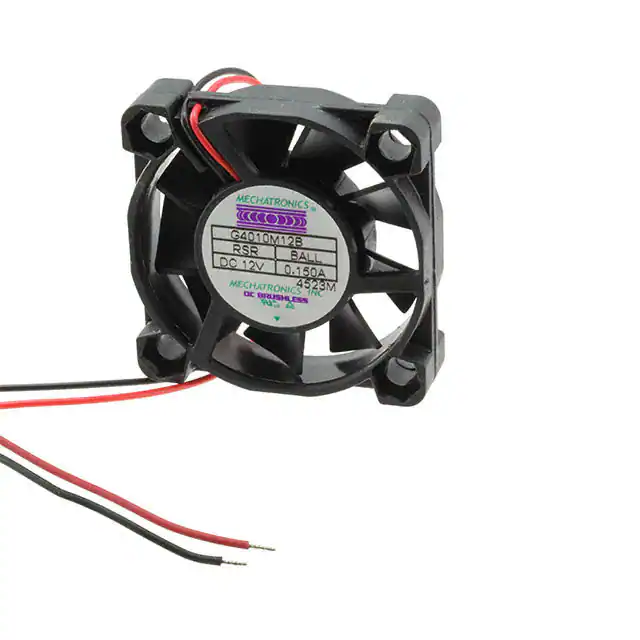

G4010M12B-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
231 | 10.53 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
9A0612F401FAN AXIAL 60X25MM 12VDC WIRE |
158 | 12.90 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.08 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624H4D011FAN AXIAL 60X25MM 24VDC WIRE |
157 | 12.90 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
AFB02505MA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE |
465 | 13.19 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.085 in H2O (21.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 300 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD4010-12MB02AFAN AXIAL 40X10.5MM 12VDC WIRE |
976 | 15.09 |
|
Datasheet |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 7.2 CFM (0.202m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.3dB | 600 mW | 6000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) |
(8020BF)(8038BF).jpg)
|
CFM-8020BF-145-401-22FAN AXIAL 80X20MM 12VDC WIRE |
210 | 14.38 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.2dB(A) | 3.6 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MF20100V2-1000U-G99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
499 | 8.85 |
|
Datasheet |
MagLev® MC | Bulk | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.0dB(A) | 780 mW | 14000 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
07525GA-12N-AL-00FAN BLOWER 75.7X25MM 12VDC WIRE |
167 | 16.48 |
|
Datasheet |
07525GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.5 CFM (0.266m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 43.0dB | 3 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

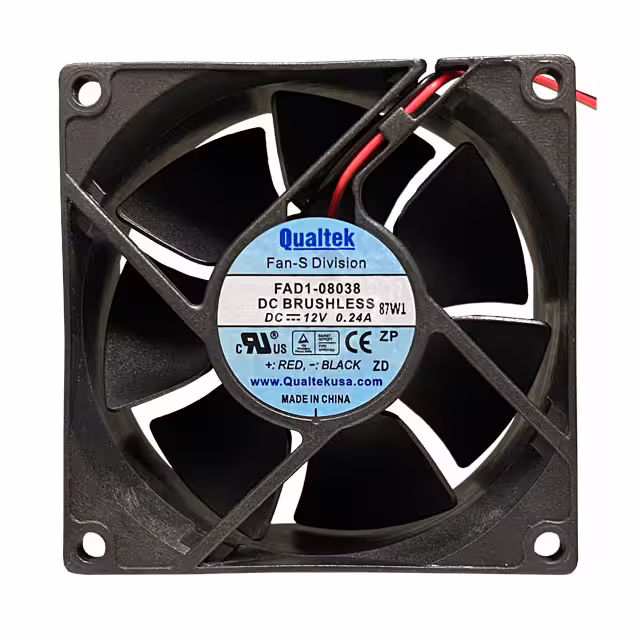

FAD1-08038CBMW12FAN AXIAL 80.5X38MM 12VDC WIRE |
111 | 20.29 |
|
Datasheet |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 46.0 CFM (1.29m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 2.04 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
|
F8025E24B-FHR-L19FAN AXIAL 80X25MM 24VDC WIRE |
177 | 10.63 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|

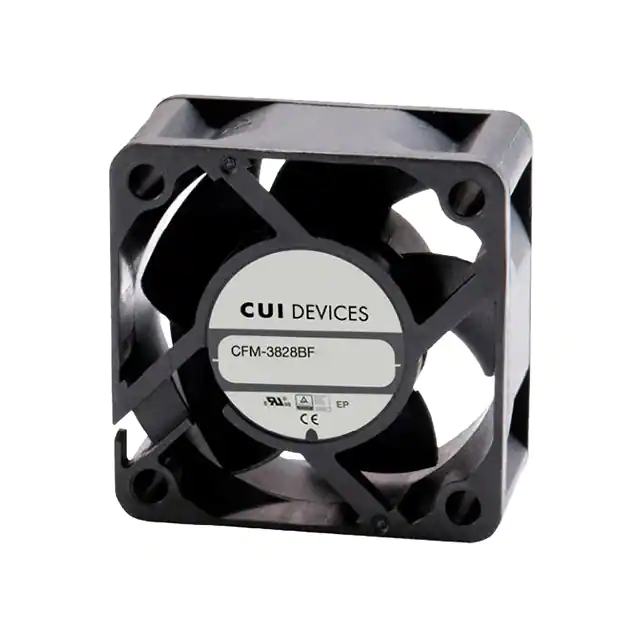

CFM-3828BF-1180-556-22FAN AXIAL 38X28MM 12VDC WIRE |
426 | 14.64 |
|
Datasheet |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.9 CFM (0.473m³/min) | 1.880 in H2O (468.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 55.6dB(A) | 7.2 W | 18000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4028BG-180-369-20FAN AXIAL 40X28MM 12VDC WIRE |
289 | 14.10 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 9.8 CFM (0.274m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 2.52 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD8032-12MBFAN AXIAL 80.5X32MM 12VDC WIRE |
166 | 15.84 |
|
Datasheet |
OD8032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 44.0 CFM (1.23m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 36.0dB | - | 3400 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
DB0601512L2B-2T0FAN BLOWER 60X15.5MM 12VDC WIRE |
594 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.50mm | 2.4 CFM (0.067m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Blower | Locked Rotor Protection | 27.0dB(A) | 840 mW | 3500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
FAD1-08038CBLW12FAN AXIAL 80.5X38MM 12VDC WIRE |
122 | 20.87 |
|
Datasheet |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 38.7 CFM (1.08m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | - | 32.3dB(A) | 1.2 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
|
CFM-A225B-125-398-20FAN AXIAL 120X25.4MM 12VDC WIRE |
212 | 11.79 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 87.4 CFM (2.45m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.7dB(A) | 4.92 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
