DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E5748C501FAN AXIAL 172X51MM 48VDC WIRE |
125 | 100.50 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 57.6 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|

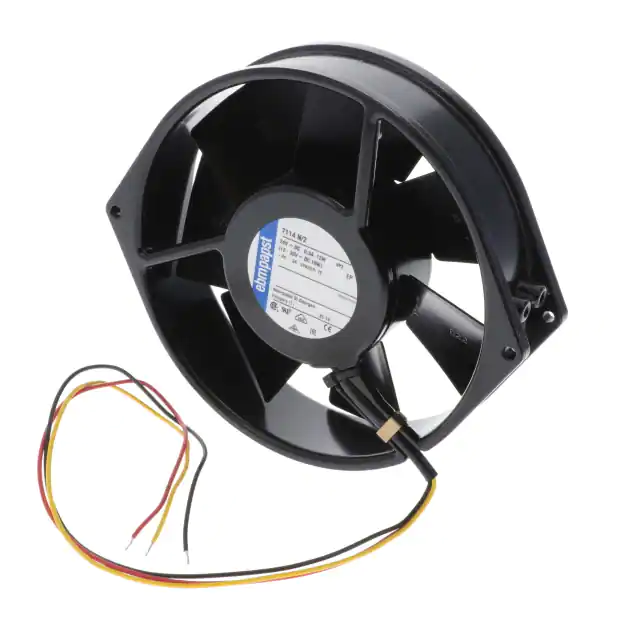

7114N/2FAN AXIAL 150X38MM 24VDC WIRE |
1,926 | 149.39 |
|
Datasheet |
7100N | Bulk | Active | 24VDC | Round - 150mm Dia | 38.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 12 W | 2850 RPM | 3 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | - | - |
|
4118NH6FAN AXIAL 119X38MM 48VDC WIRE |
145 | 117.95 |
|
Datasheet |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 259.0 CFM (7.25m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 62 W | 8400 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
OD172SAP-24HBIP68FAN AXIAL 172X51MM 24VDC WIRE |
3,071 | 109.36 |
|
Datasheet |
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | 24 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lbs (816.5 g) |
|
OD254AP-48MBFAN AXIAL 254X89MM 48VDC WIRE |
3,529 | 130.65 |
|
Datasheet |
OD254 | Box | Active | 48VDC | Round - 254mm Dia | 89.00mm | 690.0 CFM (19.32m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB | 24 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|

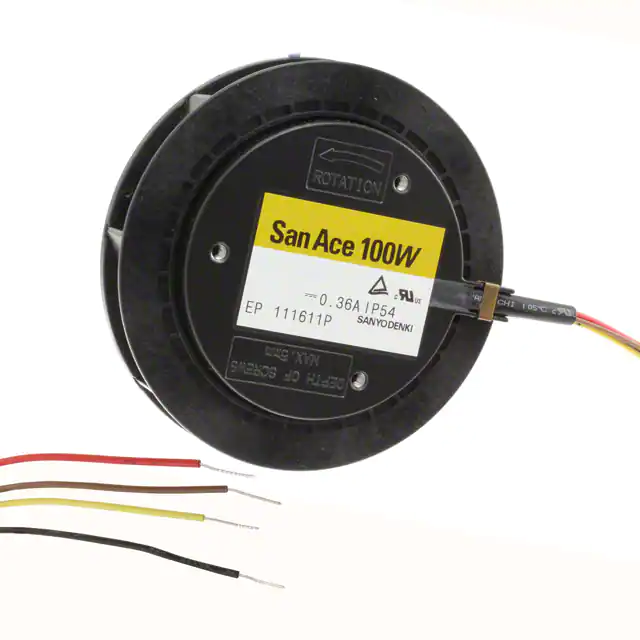

9W1TM48P4G01FAN IMP MTRZD 100X25MM 48VDC |
691 | 73.08 |
|
Datasheet |
San Ace 100W | Box | Active | 48VDC | Round - 100mm Dia | 25.00mm | 71.7 CFM (2.01m³/min) | 2.840 in H2O (708.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 17.28 W | 7400 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|

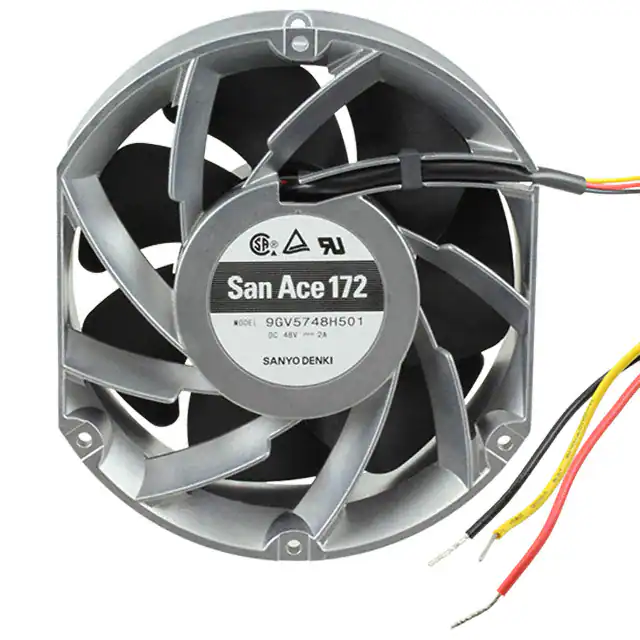

9GV5748H501FAN AXIAL 172X51MM 48VDC WIRE |
122 | 105.40 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 74.0dB(A) | 96 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|

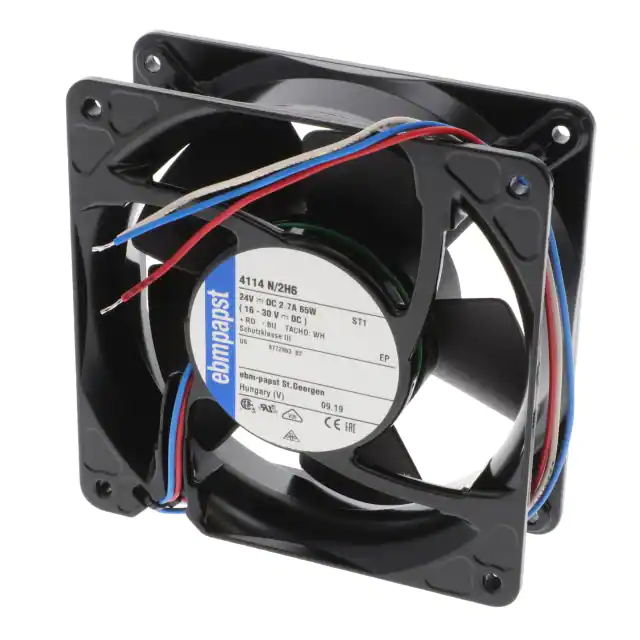

4114N/2H6FAN AXIAL 119X38MM 24VDC WIRE |
4,297 | 117.21 |
|
Datasheet |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 259.0 CFM (7.25m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 65 W | 8400 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
9LG1424P1H001FAN AXIAL 140X38MM 24VDC WIRE |
275 | 109.06 |
|
Datasheet |
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.4 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
9WL1412P1H001FAN AXIAL 140X38MM 12VDC WIRE |
124 | 125.59 |
|
Datasheet |
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.4 W | 5200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
9W1BM12P2M001FAN BLOWER 97.1X33MM 12VDC WIRE |
319 | 125.88 |
|
Datasheet |
San Ace 97W | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 32.8 CFM (0.918m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 10.8 W | 4100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.529 lb (240.00 g) |
|
|
109E1712H501FAN AXIAL 172X51MM 12VDC WIRE |
133 | 115.08 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
109E5724H501FAN AXIAL 172X51MM 24VDC WIRE |
3,982 | 98.99 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
6424/2UFAN AXIAL 171.5X50.8MM 24VDC |
194 | 144.10 |
|
Datasheet |
6400U | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 17 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 152.60°F (-20 ~ 67°C) | UL | 1.9 lbs (861.8 g) |
|
RG160-28/18NFAN BLOWER CF 220X56MM 48VDC |
2,633 | 171.02 |
|
Datasheet |
RG160N | Bulk | Active | 48VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | - | 66.0dB(A) | 20 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|
OD254AP-12HBIP68FAN IMP MTRZD 254X89MM 12VDC |
3,207 | 184.73 |
|
Datasheet |
OD254AP-IP68 | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

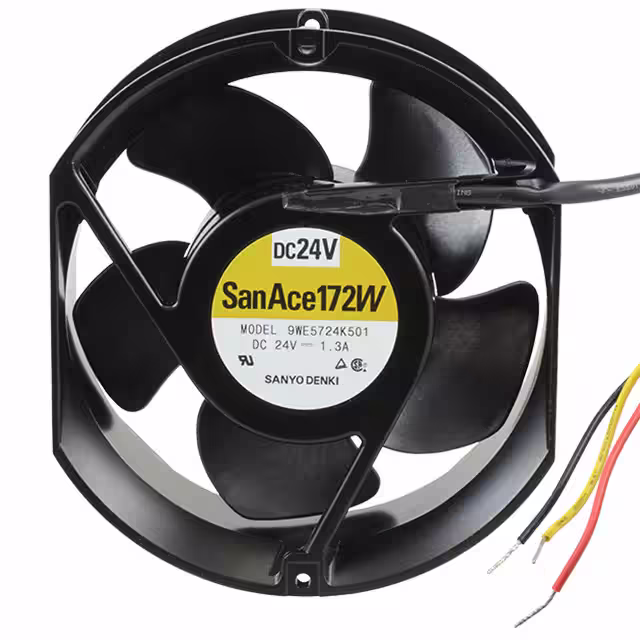

9WE5724K501FAN AXIAL 172X51MM 24VDC WIRE |
169 | 107.24 |
|
Datasheet |
San Ace 172W | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 60.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
|

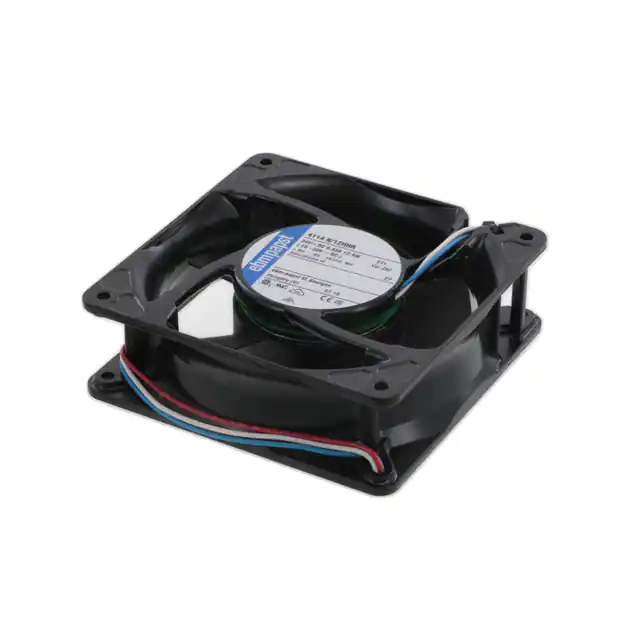

4114N/12HHR-297FAN AXIAL 119X38MM 24VDC WIRE |
185 | 156.36 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 67.0dB(A) | 12.4 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
OD180APL-24HBIP69KFAN AXIAL 180X65MM 24VDC WIRE |
2,502 | 172.16 |
|
Datasheet |
OD180APL-IP69K | Box | Active | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 60.2 W | 3375 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
RG160-28/18N/12FAN BLOWER CF 220X56MM 48VDC |
140 | 173.40 |
|
Datasheet |
RG160N | Box | Active | 48VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | 66.0dB(A) | 20 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
