DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109W1424H502FAN AXIAL 140X51MM 24VDC WIRE |
4,051 | 0.00 |
|
Datasheet |
San Ace 140W | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 208.0 CFM (5.82m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 14.4 W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | - | 1.9 lbs (860.0 g) |
|
|
3214J/2HFAN AXIAL 92X38MM 24VDC WIRE |
3,441 | 0.00 |
|
- |
3200J, S-Force | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 86.0 CFM (2.41m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 9 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
3214J/2HP-185FAN AXIAL 92X38MM 24VDC WIRE |
4,051 | 0.00 |
|
- |
3200J, S-Force | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 86.0 CFM (2.41m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 9 W | 6800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
4118N/2H3P-344FAN AXIAL 119X38MM 48VDC WIRE |
4,933 | 0.00 |
|
- |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 182.0 CFM (5.10m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 20 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
4184N/2XRFAN AXIAL 119X38MM 24VDC WIRE |
3,513 | 0.00 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 4.9 W | 3200 RPM | 3 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 0.86 lb (390.09 g) |
|
|
424JMUFAN AXIAL 40X28MM 24VDC WIRE |
1,768 | 54.47 |
|
- |
420J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 14.3 CFM (0.400m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 2.7 W | 11400 RPM | 2 Wire Leads | - | - | - | 0.101 lb (45.81 g) |
|
|
4314RFAN AXIAL 119X32MM 24VDC WIRE |
1,299 | 0.00 |
|
- |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.485 lb (220.00 g) |
|
|
4412F/2GMLPFAN AXIAL 119X25.4MM 12VDC |
4,194 | 0.00 |
|
- |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 67.0 CFM (1.88m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2 W | 1950 RPM | - | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.386 lb (175.09 g) |
|

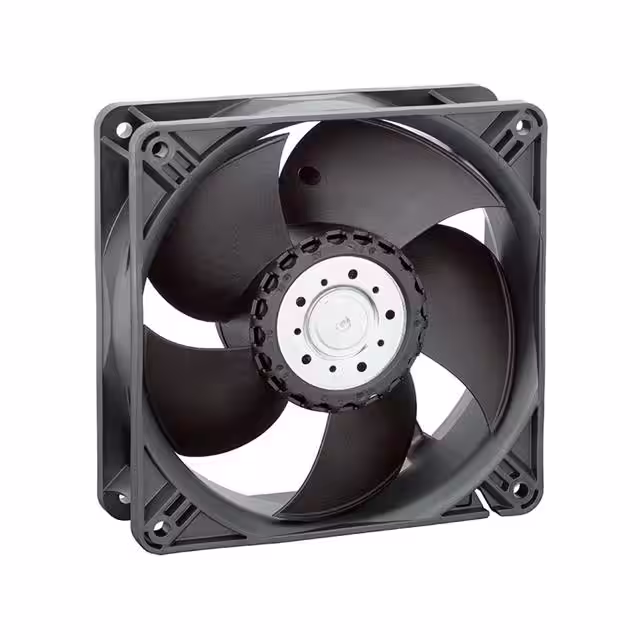

4414/2MPFAN AXIAL 119X38MM BALL 24VDC |
4,070 | 0.00 |
|
Datasheet |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 108.0 CFM (3.02m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 4 W | 3300 RPM | - | - | - | - | 0.604 lb (273.97 g) |
|
|
4414F/2LFAN AXIAL 119X25.4MM 24VDC WIRE |
2,772 | 0.00 |
|
- |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 55.0 CFM (1.54m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 1.2 W | 1600 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.386 lb (175.09 g) |
|
|
4414L3FAN AXIAL 119X38MM 24VDC WIRE |
4,647 | 0.00 |
|
Datasheet |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 1 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | - | 0.604 lb (273.97 g) |
|
|
4416HFAN AXIAL 119X38MM 36VDC WIRE |
1,921 | 0.00 |
|
- |
4400 | Bulk | Active | 36VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.604 lb (273.97 g) |
|
|
5314/2HPFAN AXIAL 139.6X50.8MM 24VDC |
2,666 | 0.00 |
|
- |
5300 | Bulk | Active | 24VDC | Square - 139.6mm L x 139.6mm H | 50.80mm | 203.0 CFM (5.68m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 28.4 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
612N/2GHHFAN AXIAL 60X25.4MM 12VDC WIRE |
2,568 | 0.00 |
|
- |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | 0.454 in H2O (113.0 Pa) | Sintec | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 16.0dB(A) | 3.1 W | 6350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, EAC, UL, VDE | 0.19 lb (86.18 g) |
|
|
6224NI-223FAN IMP MTRZD 172X50.8MM 24VDC |
3,840 | 0.00 |
|
- |
6200N | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | - | - | Ball | Motorized Impellers | Temperature Sensor | - | 18 W | 4500 RPM | - | - | - | - | - |
|
|
6314HU-901FAN 172X51MM 24VDC |
2,497 | 0.00 |
|
- |
6300H | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6412HFAN AXL 171.5X50.8MM 12VDC TERM |
3,965 | 0.00 |
|
- |
6400 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Terminals | - | - | - | - |
|
|
8412/12FAN AXIAL 80X25.4MM 12VDC WIRE |
3,333 | 0.00 |
|
- |
8400 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.4 W | - | 3 Wire Leads | - | 167°F (75°C) | - | - |
|
|
DV5214/2NP-181FAN AXIAL 127X38MM BALL 24VDC |
3,772 | 0.00 |
|
- |
DV5200 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 159.0 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | - | - | - | - | - |
|

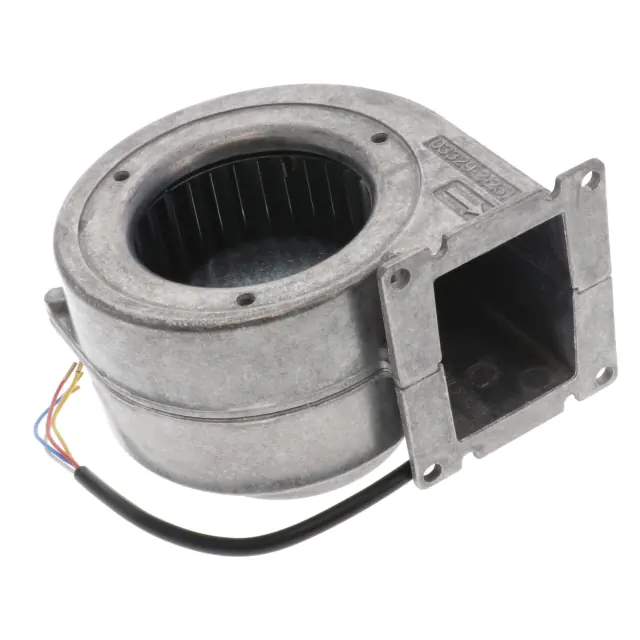

G1G085-AB05-01FAN BLOWER 117.5MM 24VDC WIRE |
3,863 | 253.69 |
|
- |
G1G085 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 117.5mm L x 127.5mm H | - | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 14 W | 2850 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 140°F (-25 ~ 60°C) | EAC | - |
