DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA2506H12C1-RSFAN AXIAL 25X6.1MM 5VDC WIRE |
2,012 | 13.66 |
|
Datasheet |
MA2506 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 25mm L x 25mm H | 6.10mm | 2.0 CFM (0.056m³/min) | 0.130 in H2O (32.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.5dB(A) | - | 10500 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MB6010L05B-RSFAN AXIAL 60X10MM BALL 5VDC WIRE |
3,583 | 8.81 |
|
Datasheet |
MB6010 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | 2 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|
|
MB8020E12B1-FSFAN AXIAL 80X20MM 12VDC WIRE |
2,879 | 10.25 |
|
Datasheet |
MB8020 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 20.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cUL, UL | 0.137 lb (62.14 g) |
|
|
MC9238H12B-FSFAN AXIAL 92X38MM 12VDC WIRE |
2,648 | 14.74 |
|
Datasheet |
MC9238 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 60.3 CFM (1.69m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.5dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.4 lb (181.44 g) |
|
|
MC9238L12B1-FSFAN AXIAL 92X38MM 12VDC WIRE |
3,602 | 15.64 |
|
Datasheet |
MC9238 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 40.2 CFM (1.13m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 23.5dB(A) | - | 2000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.4 lb (181.44 g) |
|
|
MXB9733L24B-BSFAN BLOWER 97X33MM 24VDC WIRE |
1,068 | 16.36 |
|
Datasheet |
MXB9733 | Bulk | Discontinued at Digi-Key | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 33.00mm | 18.8 CFM (0.526m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 41.0dB(A) | - | 2200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|

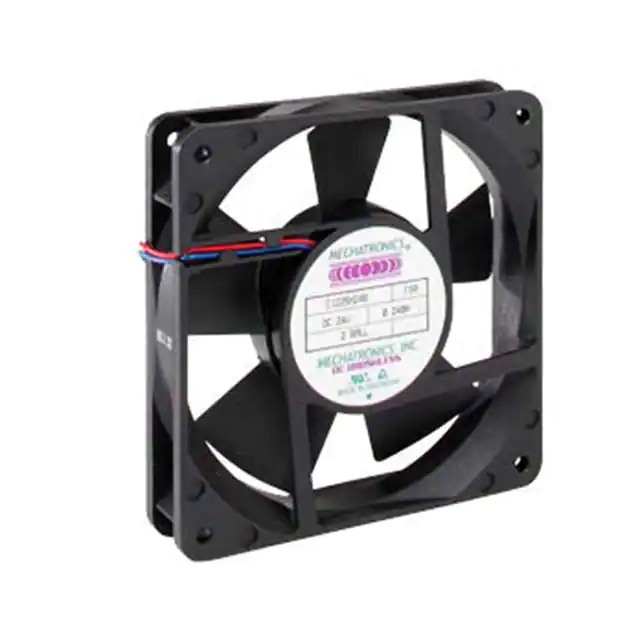

E1225H24B1+3-FSFAN AXIAL 120X25MM 24VDC WIRE |
1,533 | 13.88 |
|
Datasheet |
E1225 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 82.0 CFM (2.30m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor | 40.0dB(A) | - | 2600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
F1238L05B1-FSFAN AXIAL 119X38MM 5VDC WIRE |
3,462 | 13.56 |
|
Datasheet |
F1238-S | Bulk | Discontinued at Digi-Key | 5VDC | Square - 119mm L x 119mm H | 38.00mm | 94.0 CFM (2.63m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | - | 2050 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
F6025E24B-FH-EMFAN AXIAL 60X25MM 24VDC WIRE |
3,712 | 11.09 |
|
Datasheet |
F6025-H | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025X12B1+3-RSFAN AXIAL 60X25MM 12VDC WIRE |
3,175 | 13.30 |
|
Datasheet |
F6025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach), Thermistor | 41.0dB(A) | - | 5200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.156 lb (70.76 g) |
|
|
F6025X24B-RH-L20FAN AXIAL 60X25MM 24VDC WIRE |
3,737 | 8.81 |
|
Datasheet |
F6025-H | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F8025S05B1-FSFAN AXIAL 80X25MM BALL 5VDC WIRE |
4,162 | 7.78 |
|
Datasheet |
F8025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | - | 1500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
|
F8025X12B1-FH-TTL-EM-UL1061FAN AXIAL 80X25MM 12VDC WIRE |
4,601 | 11.28 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
MB7020U12B-FSRFAN 70X20MM BALL 12VDC WIRE |
1,520 | 7.79 |
|
Datasheet |
MB7020 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 20.00mm | - | - | Ball | - | - | - | - | - | 2 Wire Leads | - | - | cUL, UL | - |
|
MD9238E24B-FSR-L9.5FAN AXIAL 92X38MM 24VDC WIRE |
4,796 | 16.67 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
|
F1238H24B3-FSFAN AXIAL 119X38MM 24VDC WIRE |
2,421 | 14.56 |
|
Datasheet |
F1238-S | Bulk | Discontinued at Digi-Key | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Thermistor | 41.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
MD1238X24B-FSR-CC-L5FAN AXIAL 120X38MM 24VDC WIRE |
4,717 | 22.86 |
|
Datasheet |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
|
109E5712H5D01FAN AXIAL 172X51MM 12VDC WIRE |
3,325 | 0.00 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
9WG5748H5D001FAN AXIAL 172X51MM 48VDC WIRE |
1,472 | 0.00 |
|
Datasheet |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 71.0dB(A) | 78 W | 6500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
|
|
9WG5748H5001FAN AXIAL 172X51MM 48VDC WIRE |
4,385 | 0.00 |
|
Datasheet |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 71.0dB(A) | 78 W | 6500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
