DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

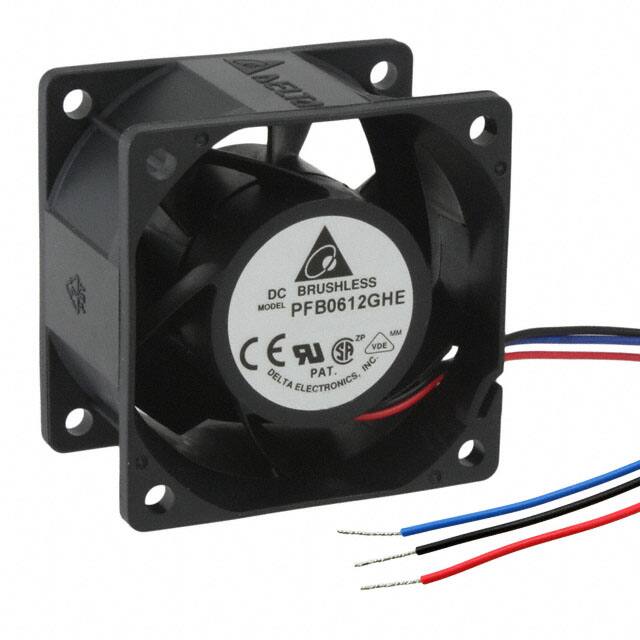

PFB0612GHE-R00FAN AXIAL 60X38MM 12VDC WIRE |
4,523 | 15.02 |
|
Datasheet |
PFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.5dB(A) | 10.2 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|

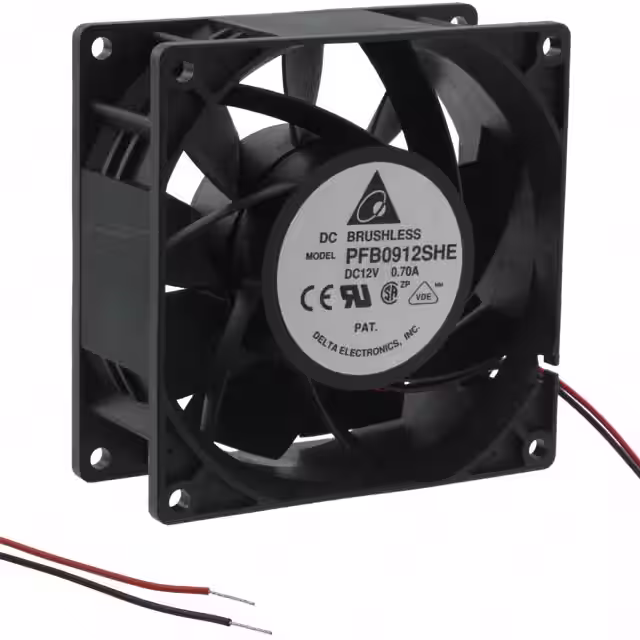

PFB0912SHEFAN AXIAL 92X38MM 12VDC WIRE |
1,320 | 30.00 |
|
Datasheet |
PFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 94.2 CFM (2.64m³/min) | 0.578 in H2O (144.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.7dB(A) | 6.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0948UHE-F00FAN AXIAL 92X38MM 48VDC WIRE |
4,031 | 34.40 |
|
Datasheet |
PFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 28.8 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB1212EHEFAN AXIAL 120X38MM 12VDC WIRE |
3,197 | 37.94 |
|
Datasheet |
PFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 181.3 CFM (5.08m³/min) | 0.751 in H2O (187.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 19.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
AFB1224VHE-TC5FFAN AXIAL 120X38MM 24VDC WIRE |
2,892 | 32.32 |
|
Datasheet |
AFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.601 in H2O (149.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13.7 W | 4000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
BFB0724H-T500FAN BLOWER 75.7X30MM 24VDC WIRE |
3,871 | 17.95 |
|
Datasheet |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 11.3 CFM (0.316m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Locked Rotor Protection | 38.0dB(A) | 2.88 W | 2900 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
|

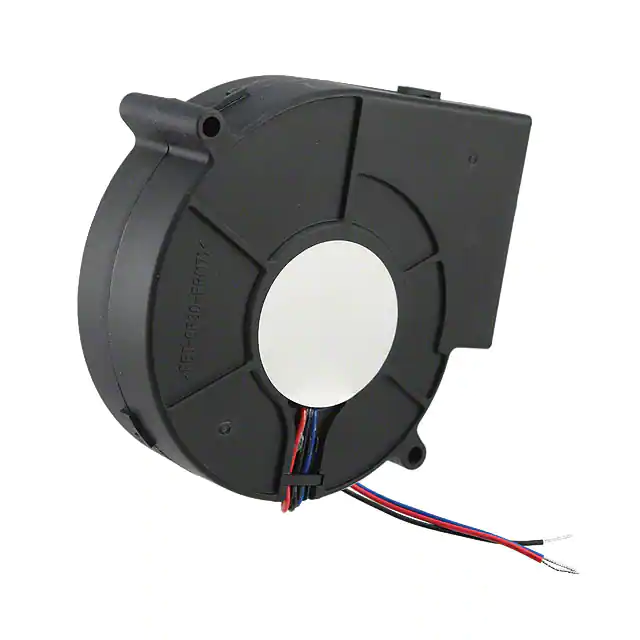

BFB1012L-TA5RFAN BLOWER 97.8X33MM 12VDC WIRE |
1,680 | 22.16 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.8mm L x 95.5mm H | 33.00mm | 23.2 CFM (0.650m³/min) | 0.585 in H2O (145.7 Pa) | Ball | Blower | Locked Rotor Sensor | 49.5dB(A) | 4.4 W | 2700 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
FFB0948SHE-T500FAN AXIAL 92X38MM 48VDC WIRE |
3,787 | 0.00 |
|
Datasheet |
FFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.5dB(A) | 9.6 W | 4400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
FFB0948SHE-TP28FAN AXIAL 92X38MM 48VDC WIRE |
4,893 | 0.00 |
|
Datasheet |
FFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.5dB(A) | 9.6 W | 4400 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

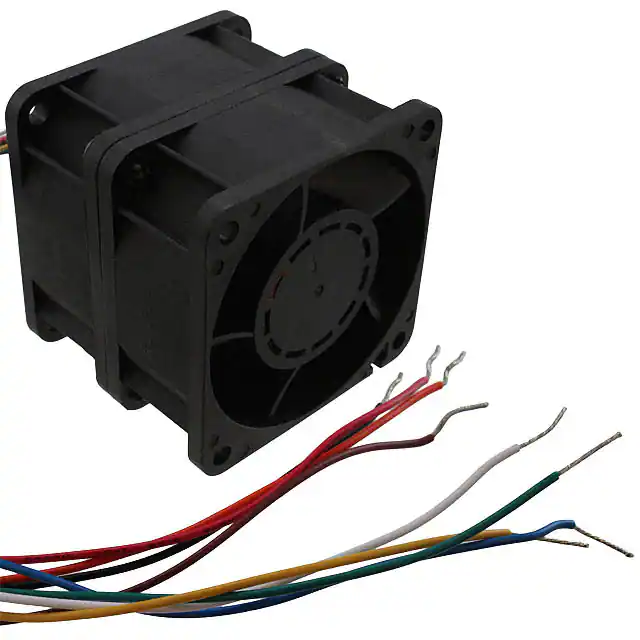

GFC0612DS-AQ14FAN AXIAL DUAL 60X56MM 12VDC |
4,107 | 26.52 |
|
Datasheet |
GFC | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 65.0 CFM (1.82m³/min) | 2.007 in H2O (499.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 19.2 W | 10400 Front, 9500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.364 lb (165.11 g) |
|

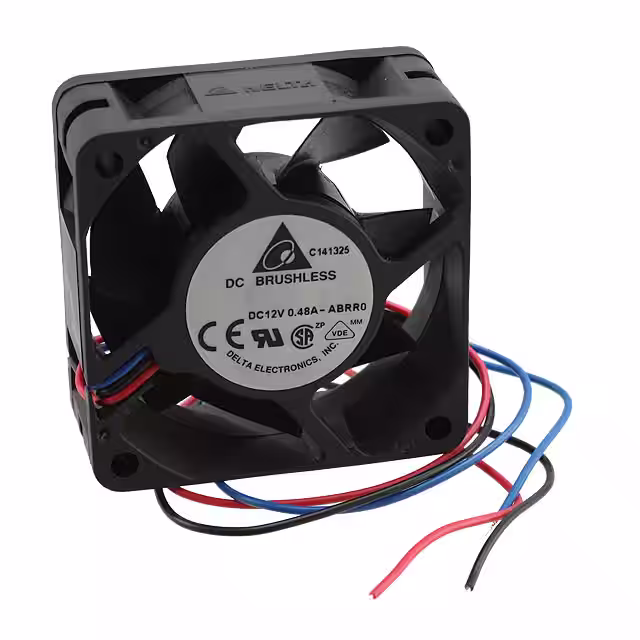

AFB0612EH-ABRR0FAN AXIAL 60X25.4MM 12VDC WIRE |
4,855 | 11.72 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0612EHE-AF00FAN AXIAL 60X38MM 12VDC WIRE |
2,955 | 14.62 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 61.7 CFM (1.73m³/min) | 1.496 in H2O (372.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 13.44 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.258 lb (117.03 g) |
|
AFB0612HBFAN AXIAL 60X15MM 12VDC WIRE |
3,210 | 9.55 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.4 CFM (0.431m³/min) | 0.155 in H2O (38.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0612MB-R00FAN AXIAL 60X15MM 12VDC WIRE |
2,188 | 10.01 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 13.5 CFM (0.378m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0812SH-R00FAN AXIAL 80X25.4MM 12VDC WIRE |
4,309 | 10.01 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0912HH-R00FAN AXIAL 92X25.4MM 12VDC WIRE |
1,980 | 11.49 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 57.9 CFM (1.62m³/min) | 0.221 in H2O (55.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
AFB0912L-AFAN AXIAL 92X25.4MM 12VDC WIRE |
3,976 | 10.96 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 37.2 CFM (1.04m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|

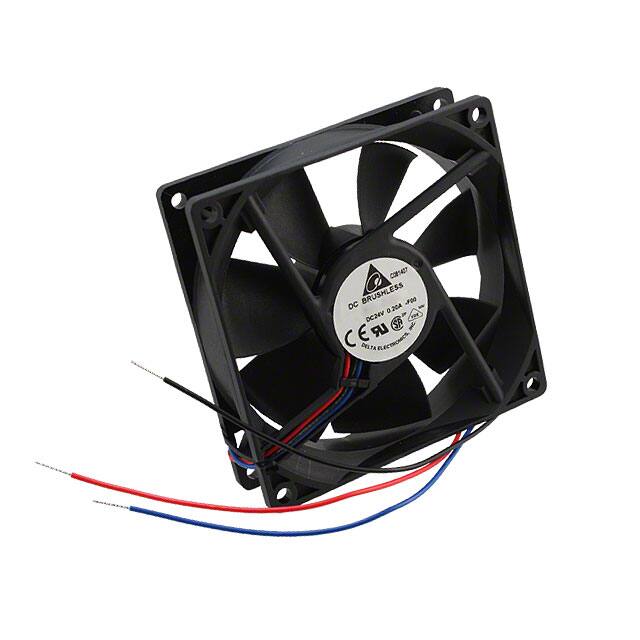

AFB0924H-F00FAN AXIAL 92X25.4MM 24VDC WIRE |
4,941 | 11.49 |
|
Datasheet |
AFB | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|

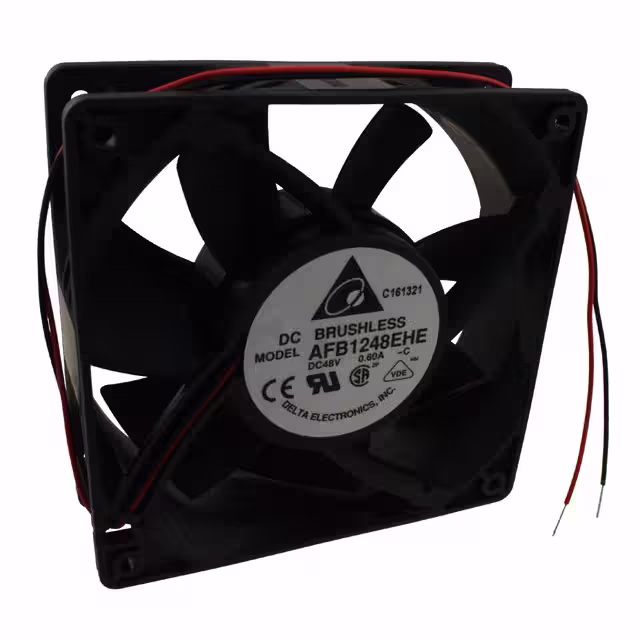

AFB1248EHE-CFAN AXIAL 120X38MM 48VDC WIRE |
3,776 | 27.74 |
|
Datasheet |
AFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.5dB(A) | 23 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
|
AFB1248SHE-CF00FAN AXIAL 120X38MM 48VDC WIRE |
3,058 | 28.24 |
|
Datasheet |
AFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 14.88 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
