DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GT0624G4002FAN AXIAL 60X25MM 24VDC WIRE |
1,657 | 55.96 |
|
Datasheet |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 6.72 W | 10000 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

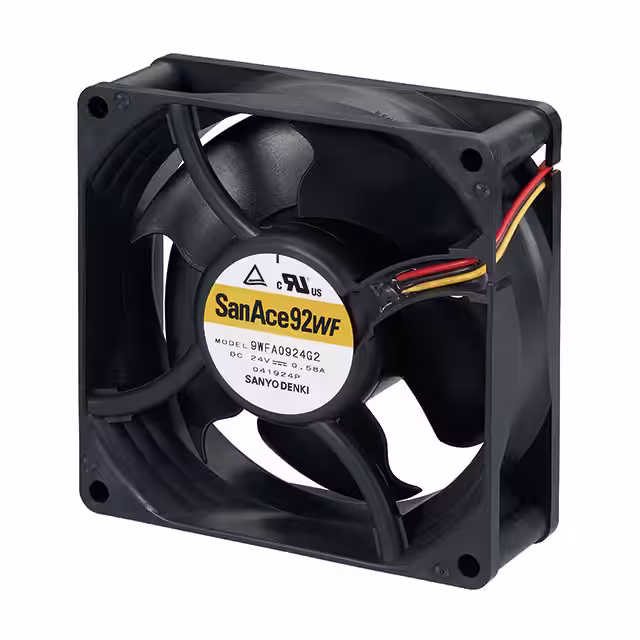

9WFA0924G2002FAN AXIAL 92X32MM 24VDC WIRE |
3,862 | 60.82 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 109.5 CFM (3.07m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 13.9 W | 9600 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.452 lb (205.02 g) |
|
6448MFAN AXIAL 172X50.8MM 48VDC TERM |
1,340 | 0.00 |
|
Datasheet |
6400 | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 52.0dB(A) | 11.5 W | 2850 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, UL, VDE | 1.7 lbs (771.1 g) |
|
|
9WFA0924G2D001FAN AXIAL 92X32MM 24VDC WIRE |
2,113 | 61.10 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 109.5 CFM (3.07m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 63.0dB(A) | 13.9 W | 9600 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.452 lb (205.02 g) |
|
|
9GT0612G4D001FAN AXIAL 60X25MM 12VDC WIRE |
1,546 | 56.23 |
|
Datasheet |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 6.72 W | 10000 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9GT0612G4001FAN AXIAL 60X25MM 12VDC WIRE |
4,391 | 56.23 |
|
Datasheet |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 10000 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9GT0624G4001FAN AXIAL 60X25MM 24VDC WIRE |
4,318 | 56.23 |
|
Datasheet |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 10000 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
17000299AFAN AXIAL 175.5X107.2MM TD48B7 |
3,416 | 69.86 |
|
Datasheet |
- | Box | Active | 48VDC | Square - 175.5mm L x 175.5mm H | 107.2mm | 155.0 CFM (4.34m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 65.2dB(A) | 33.6 W | 3275 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, UL | - |
|
|
19039823AFAN MOTOR IMP 101.6X55MM 12V TTL |
3,128 | 0.00 |
|
Datasheet |
Diplomat | - | Active | 12VDC | Round - 118mm Dia | 55.60mm | 116.0 CFM (3.25m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.0dB(A) | 33 W | 5900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.816 lb (370.13 g) |
|
|
19031437AFAN AXIAL 171.5X50.8MM 48VDC |
4,391 | 0.00 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 22 W | 3475 RPM | 4 Wire Leads | - | - | - | 1.8 lbs (816.5 g) |
|
|
9GV1248B102120X38MM 48VDC |
3,573 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9TN48P1H07FAN 150X35MM 48VDC CENT TACH,PWM |
3,690 | 0.00 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

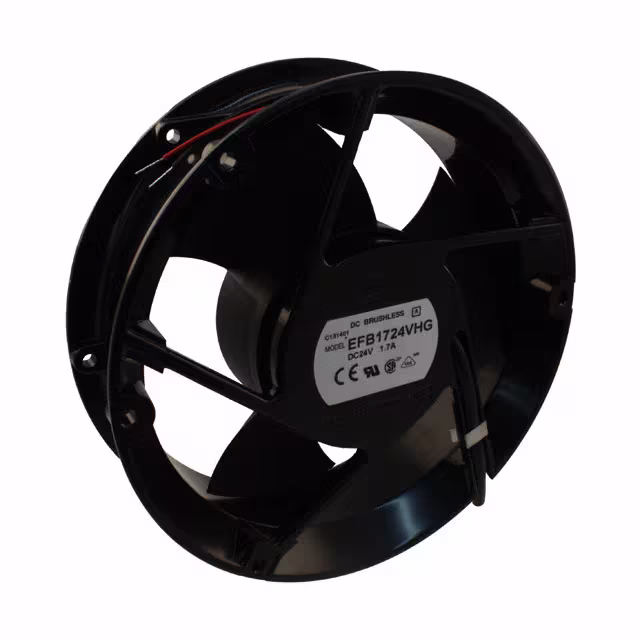

EFB1724VHGFAN AXIAL 172X50.8MM 24VDC WIRE |
2,735 | 64.74 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 23.28 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
RL65-21/12-2HPDC FLATPAK - RADIAL BLOWER |
1,603 | 0.00 |
|
- |
RL65 | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 94mm H | 33.00mm | 35.9 CFM (1.01m³/min) | 1.566 in H2O (390.1 Pa) | Ball | Blower, Centrifugal | Auto Restart, PWM Control, Speed Sensor (Tach) | - | 19 W | 4900 RPM | 4 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
109BF24MA2FAN BLOWER 120X32MM 24VDC WIRE |
2,812 | 42.60 |
|
Datasheet |
San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 21.5 CFM (0.602m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | - | 44.0dB(A) | 3.84 W | 1900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
15050VA-48P-EA-00FAN AXIAL 172X50.8MM 48VDC WIRE |
4,252 | 60.16 |
|
Datasheet |
5920VL | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 283.1 CFM (7.93m³/min) | 0.846 in H2O (210.7 Pa) | Ball | Tubeaxial | - | 63.0dB(A) | 25 W | 3750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL, VDE | 1.8 lbs (816.5 g) |
|
|
15050VA-24M-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
3,822 | 60.16 |
|
Datasheet |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 254.3 CFM (7.12m³/min) | 0.663 in H2O (165.1 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 19.2 W | 3350 RPM | 2 Wire Leads | - | - | - | - |
|
|
15050VA-24P-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
1,354 | 60.64 |
|
Datasheet |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 282.5 CFM (7.91m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB | 26.4 W | 3750 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15050VA-48M-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
2,308 | 60.16 |
|
Datasheet |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 254.3 CFM (7.12m³/min) | 0.663 in H2O (165.1 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 18.3 W | 3350 RPM | 2 Wire Leads | - | - | - | - |
|
|
15050VA-48N-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
2,476 | 60.16 |
|
Datasheet |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 261.3 CFM (7.32m³/min) | 0.735 in H2O (183.1 Pa) | Ball | Tubeaxial | Auto Restart | 60.0dB | 21.6 W | 3500 RPM | 2 Wire Leads | - | - | - | - |
