AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2E133-DM47-01FAN BLWR CENT 204X270MM 230VAC |
2,156 | 344.73 |
|
Datasheet |
D2E133 | Bulk | Active | 230VAC | Rectangular - 204mm L x 213mm H (133mm Dia) | 270.0mm | 353.0 CFM (9.88m³/min) | - | Ball | Blower, Centrifugal | - | 55.0dB(A) | 195W | 2200 RPM | 2 Wire Leads | - | -40 ~ 176°F (-40 ~ 80°C) | CCC, CE | 9.7 lbs (4.4 kg) |
|

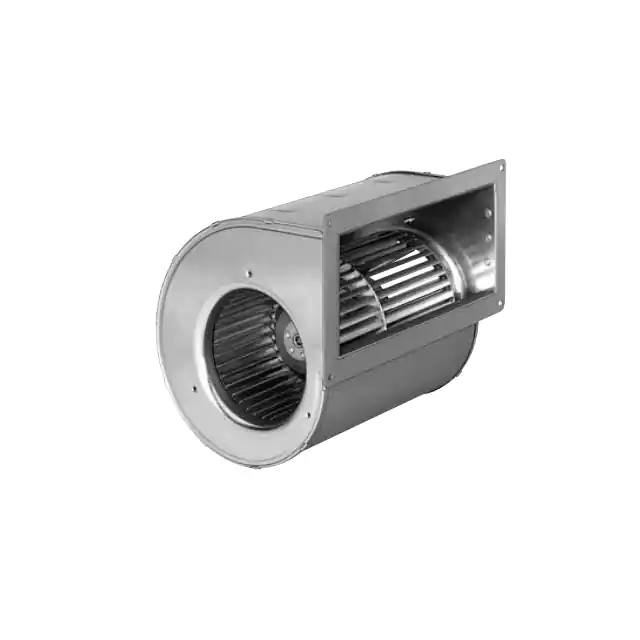

D2E133-DM67-78FAN BLWR CENT 204X270MM 115VAC |
2,669 | 383.65 |
|
- |
D2E133 | Bulk | Active | 115VAC | Rectangular/Rounded - 204mm L x 213mm H | 270.0mm | 420.0 CFM (11.76m³/min) | - | Ball | Blower, Centrifugal | - | 55.0dB(A) | 205W | - | 2 Wire Leads | - | 32°F ~ 104°F (0°C ~ 40°C) | CSA, UL, VDE | - |
|
A2D300-AD02-01AC AXIAL FAN |
4,243 | 366.76 |
|
- |
A2D250 | Bulk | Active | 230/400VAC | Round - 300mm Dia | 104.0mm | 1625.6 CFM (45.52m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage | 76.0dB(A) | 270W | 2800 RPM | 7 Wire Leads with Splice Terminals | IP44 | -13 ~ 95°F (-25 ~ 35°C) | CCC, CE, EAC | - |
|
A2D300-AD02-02AC AXIAL FAN |
2,131 | 366.76 |
|
Datasheet |
A2D250 | Bulk | Active | 230/400VAC | Round - 300mm Dia | 104.0mm | 1731.7 CFM (48.49m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage | 77.0dB(A) | 270W | 2800 RPM | 7 Wire Leads with Splice Terminals | IP44 | -13 ~ 95°F (-25 ~ 35°C) | CCC, CE, EAC | - |
|
R3G220-RC05-03MOTORIZED IMPELLER |
1,000 | 367.29 |
|
Datasheet |
R3G220 | Bulk | Active | 230VAC | Round - 220mm Dia | 71.00mm | - | - | Ball | Motorized Impellers | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | 85.0W | 2580 RPM | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, CSA, EAC, UL | - |
|
G2E120-AR38-01MOTORIZED IMPELLER |
2,965 | 371.36 |
|
Datasheet |
G2E120 | Bulk | Active | 230VAC | Rectangular/Rounded - 178mm L x 193.5mm H | 115.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 110W | 2600 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CE | - |
|

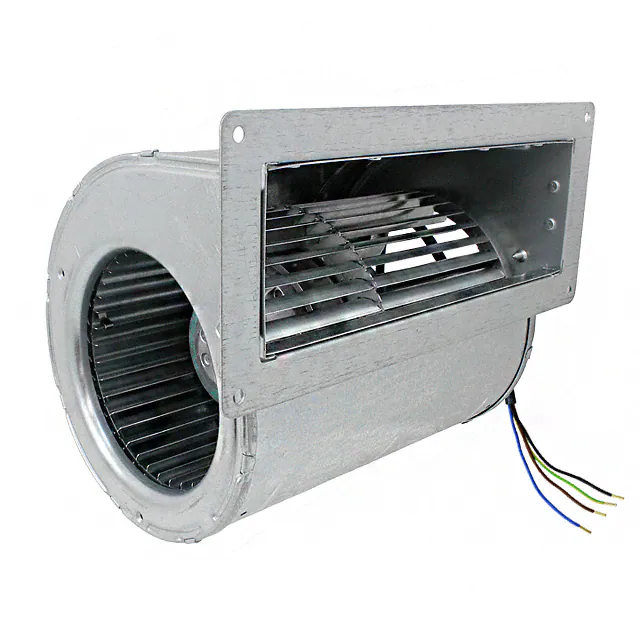

D2E133-AM47-A3FAN BLWR CENT 172X254MM 230VAC |
3,460 | 362.46 |
|
Datasheet |
D2E133 | Bulk | Active | 230VAC | Rectangular/Rounded - 171.5mm L x 198mm H | 254.0mm | 353.0 CFM (9.88m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | 55.0dB(A) | 200W | 1800 RPM | 4 Wire Leads | IP44 | -13 ~ 77°F (-25 ~ 25°C) | CCC, CE, UL | 7.8 lbs (3.5 kg) |
|

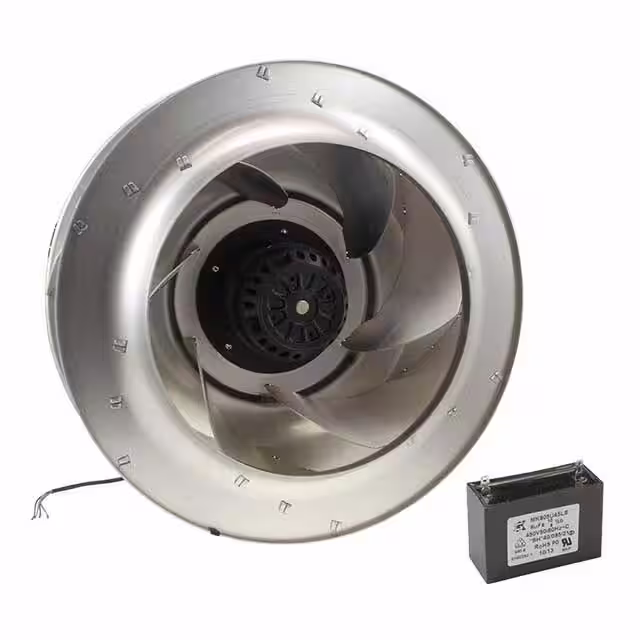

UF400AAA23-H1C4AIMPELLER 400X162MM 230VAC |
2,936 | 346.00 |
|
Datasheet |
UF400AAA | Bulk | Active | 230VAC | Round - 400mm Dia | 162.4mm | 1900.0 CFM (53.20m³/min) | 5.380 in H2O (1340.2 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 73.0dB(A) | 287W | 1250 RPM | 4 Wire Leads | - | -4 ~ 122°F (-20 ~ 50°C) | CE, cUL, TUV, UL | 12 lbs (5.4 kg) |
|
G2E146-DW07-01AC CENTRIFUGAL BLOWER |
2,022 | 385.82 |
|
Datasheet |
- | Bulk | Active | 230 ~ 240VAC | Rectangular/Rounded - 227mm L x 248mm H | 130.0mm | - | 0.401 in H2O (100.0 Pa) | Ball | Blower, Centrifugal | - | - | 155W | 1750 RPM | 4 Wire Leads | IP44 | -13 ~ 113°F (-25 ~ 45°C) | CCC, CE, EAC | 6.3 lbs (2.9 kg) |
|

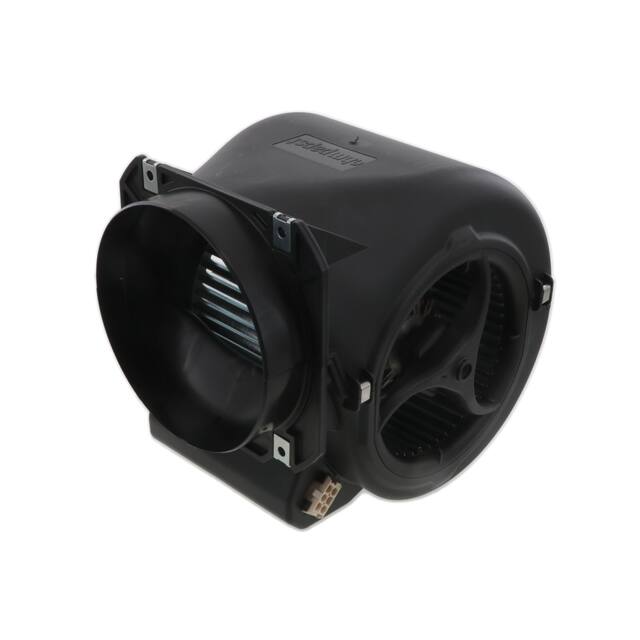

D2E146-HT67-39BLOWER |
1,358 | 383.85 |
|
Datasheet |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H | 199.0mm | - | 0.803 in H2O (200.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 400W | 2100 RPM | 6 Position Rectangular Connector | IP20 | -13 ~ 122°F (-25 ~ 50°C) | - | - |
|

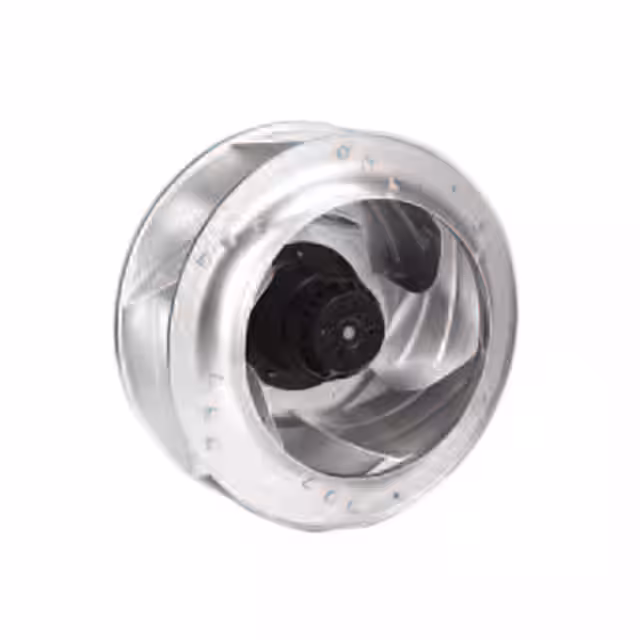

OAB360-11-1FAN IMP MTRZD 360X167 115V W/CAP |
2,777 | 221.92 |
|
Datasheet |
OAB360 | Box | Active | 115VAC | Round - 360mm Dia | 167.3mm | 1645.0 CFM (46.06m³/min) | 2.200 in H2O (548.0 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.0dB | 270W | 1600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 176°F (-40 ~ 80°C) | cURus, TUV | - |
|
W3G200-HD01-03FAN 200-240VAC 54W 560CFM 225MM |
2,598 | 361.17 |
|
Datasheet |
W3G200 | Box | Active | 230VAC | Square - 225mm L x 225mm H | 80.00mm | - | 0.385 in H2O (96.0 Pa) | Ball | Tubeaxial | - | - | 54.0W | 2900 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CE, cURus, VDE | 3.7 lbs (1.7 kg) |
|
W2E300-CC47-02FAN AXIAL |
2,104 | 408.55 |
|
Datasheet |
W2E300 | Bulk | Active | 230VAC | Round - 397mm Dia | - | - | 0.602 in H2O (150.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 200W | 2900 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE, CSA, EAC, UL | - |
|

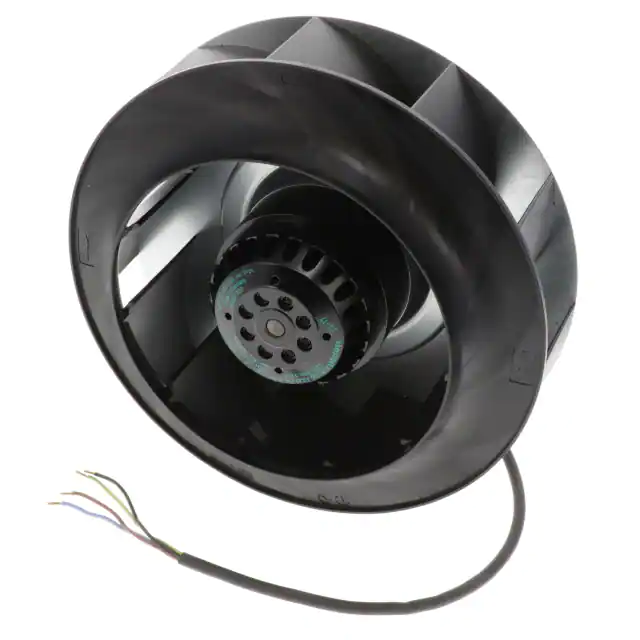

R2E250-AS47-09MOTORIZED IMPELLER |
3,734 | 376.69 |
|
Datasheet |
R2E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 215W | 2700 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 104°F (-25 ~ 40°C) | - | - |
|

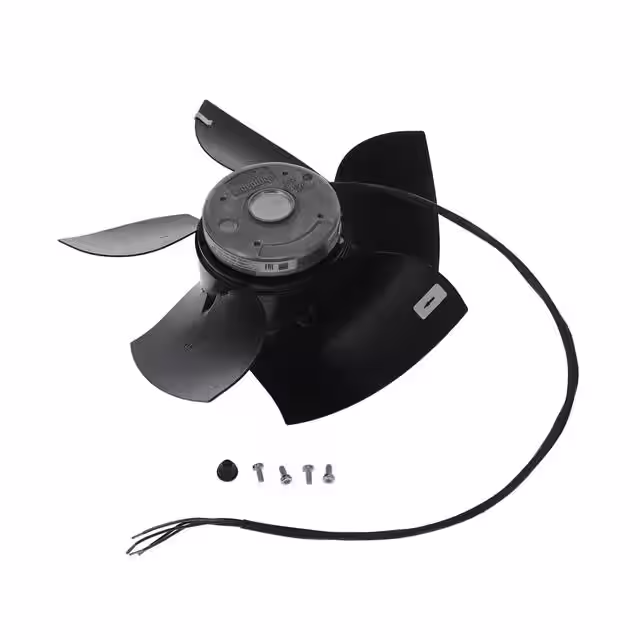

A2D250-AD26-05AC AXIAL FAN |
1,501 | 418.75 |
|
Datasheet |
A2D250 | Bulk | Active | 480VAC | Round - 250mm Dia | 83.00mm | - | 0.743 in H2O (185.0 Pa) | Ball | Tubeaxial, 3 Phase | - | - | 230W | 2920 RPM | 4 Wire Leads with Splice Terminals | IP44 | - | CCC, CE, CSA, UL | - |
|
W2D250-CH12-14FAN IMP MTRZD 320X85MM 440VAC |
2,152 | 419.93 |
|
Datasheet |
W2D250 | Bulk | Active | 440VAC | Round - 320mm Dia | 85.00mm | - | - | Ball | Motorized Impellers | Thermal Overload Protector (TOP) | - | 75.0W | 1850 RPM | 9 Wire Leads | IP44 | -40 ~ 113°F (-40 ~ 45°C) | CE | - |
|
W4E400-CP14-71FAN AXIAL 528X80MM 115VAC WIRE |
3,428 | 439.32 |
|
Datasheet |
W4E400A | Bulk | Active | 115VAC | Round - 528mm Dia | 80.00mm | 2910.0 CFM (81.48m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 240W | - | 2 Wire Leads | - | - | CE, CSA, UL | 9.3 lbs (4.2 kg) |
|
A4E350-AA06-56AC AXIAL FAN |
4,399 | 426.60 |
|
Datasheet |
- | Bulk | Active | 230VAC | Round - 353mm Dia | 101.5mm | - | 0.360 in H2O (89.6 Pa) | Ball | Motorized Impellers | - | - | 195W | 1550 RPM | 4 Wire Leads | IP44 | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL | 7.0 lbs (3.2 kg) |
|
G2E160-AY47-57MOTORIZED IMPELLER |
4,195 | 473.30 |
|
Datasheet |
G2E160 | Bulk | Active | 230VAC | Rectangular/Rounded - 226.8mm L x 247.5mm H | 130.0mm | - | 0.201 in H2O (50.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 310W | 2100 RPM | 4 Wire Leads | IP44 | -13 ~ 86°F (-25 ~ 30°C) | CSA, UL | - |
|
R4E355-AL02-06MOTORIZED IMPELLER |
3,039 | 594.99 |
|
Datasheet |
R4E355 | Bulk | Active | 230VAC | Round - 360mm Dia | 190.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 420W | 1650 RPM | 6 Wire Leads with Splice Terminals | - | -13 ~ 104°F (-25 ~ 40°C) | CCC | - |
