AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2E120-CR15-08MOTORIZED IMPELLER |
2,071 | 221.26 |
|
Datasheet |
G2E120 | Bulk | Active | 115VAC | Rectangular/Rounded - 170.5mm L x 180mm H | 99.00mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 115W | 2250 RPM | 4 Wire Leads | IP44 | -13 ~ 131°F (-25 ~ 55°C) | CE, CSA, UL | - |
|
|
GTM023EUG10R-VBLOWER ROUND 225MM X 99MM, W/ IN |
1,998 | 0.00 |
|
Datasheet |
GTM | Bulk | Active | 230VAC | Square - 270mm L x 270mm H | 126.00mm | 741.0 CFM (20.75m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 72.0dB(A) | 135W | 3000 RPM | 3 Wire Leads with Ferrules, 4 Wire Leads with Ferrules | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CE, cURus, TUV | - |
|
W2E300-CP02-70FAN AXIAL 397X80MM 230VAC WIRE |
2,779 | 0.00 |
|
Datasheet |
W2E300A | Bulk | Obsolete | 230VAC | Round - 397mm Dia | 80.00mm | 2200.0 CFM (61.60m³/min) | - | Ball | Tubeaxial | - | 76.0dB(A) | 350W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 7.0 lbs (3.2 kg) |
|
W4E350-CP06-71FAN AXIAL 460X80MM 230VAC WIRE |
2,898 | 0.00 |
|
Datasheet |
W4E350A | Bulk | Obsolete | 230VAC | Round - 460mm Dia | 80.00mm | 2080.0 CFM (58.24m³/min) | - | Ball | Tubeaxial | - | 67.0dB(A) | 190W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 7.9 lbs (3.6 kg) |
|
|
R2E085-AA01-05AC BACKWARD-CURVED MOTORIZED IMP |
1,155 | 0.00 |
|
- |
R2E085 | Bulk | Active | 230VAC | Round - 92mm Dia | 68.00mm | 60.0 CFM (1.68m³/min) | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 30.00W | 2800 RPM | 4 Wire Leads | IP44 | -13 ~ 158°F (-25 ~ 70°C) | CE | - |
|
|
D2E097-CH85-02BLOWER |
4,080 | 224.52 |
|
- |
D2E097 | Bulk | Active | 230VAC | Rectangular/Rounded - 143mm L x 137mm H | 108.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 32.00W | 1450 RPM | 4 Wire Leads | IP20 | -13 ~ 176°F (-25 ~ 80°C) | CCC, CE, EAC | - |
|
|
K1G220-AF90-02ENERGY-SAVING CENTRIFIGUAL MODUL |
3,937 | 0.00 |
|
- |
K1G220 | Bulk | Active | 115VAC | Round - 310mm Dia | 113.0mm | 225.0 CFM (6.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Thermal Overload Protection (TOP) | 48.0dB(A) | 32.00W | 1600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -22 ~ 122°F (-30 ~ 50°C) | CSA, EAC, VDE, UL | - |
|
|
S2E250-BB13-22AC AXIAL FAN |
2,444 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S4E250-BI02-72FAN AXIAL |
3,409 | 230.95 |
|
- |
S4E250 | Bulk | Active | 230VAC | Round - 290mm Dia | 59.90mm | - | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 45.00W | 1630 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CE, CSA, UL | - |
|
|
S4D250-BA04-01AC AXIAL FAN |
4,715 | 0.00 |
|
- |
S4D250 | Bulk | Active | 230/400VAC | Round - 250mm Dia | - | 609.6 CFM (17.07m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 35.00W | 1650 RPM | 2 Wire Leads | IP44 | 167°F (75°C) | - | - |
|
|
R2E150-AN89-11MOTORIZED IMPELLER |
4,350 | 231.96 |
|
- |
R2E150 | Bulk | Active | 115VAC | Round - 152mm Dia | 111.5mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 40.00W | - | 1 Wire Lead with Ring Terminal, 3 Wire Leads with QC Receptacles | IP44 | -13 ~ 176°F (-25 ~ 80°C) | CE, CSA, UL | - |
|
|
A4E300-AP26-02AC AXIAL FAN |
2,603 | 0.00 |
|
- |
A4E300 | Bulk | Active | 230VAC | Round - 300mm Dia | 60.00mm | 1204.5 CFM (33.73m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 92.0W | 1630 RPM | 4 Wire Leads | IP44 | 113°F (45°C) | CCC, GOST | - |
|
|
A4D250-AA04-02FAN AC AXIAL |
2,965 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
W4S200-CH04-70FAN AXIAL 280X80MM 230VAC WIRE |
2,016 | 0.00 |
|
Datasheet |
W2E200A | Bulk | Obsolete | 230VAC | Round - 280mm Dia | 80.00mm | 315.0 CFM (8.82m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 27.00W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 2.7 lbs (1.2 kg) |
|
|
W4S200-CI04-01AC AXIAL FAN |
4,186 | 0.00 |
|
- |
W4S200 | Bulk | Active | 230VAC | Round - 280mm Dia | 80.00mm | 318.1 CFM (8.91m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Thermal Overload Protection (TOP) | 46.0dB(A) | 27.00W | 1580 RPM | 2 Wire Leads | IP44 | 176°F (80°C) | CCC, CE | - |
|

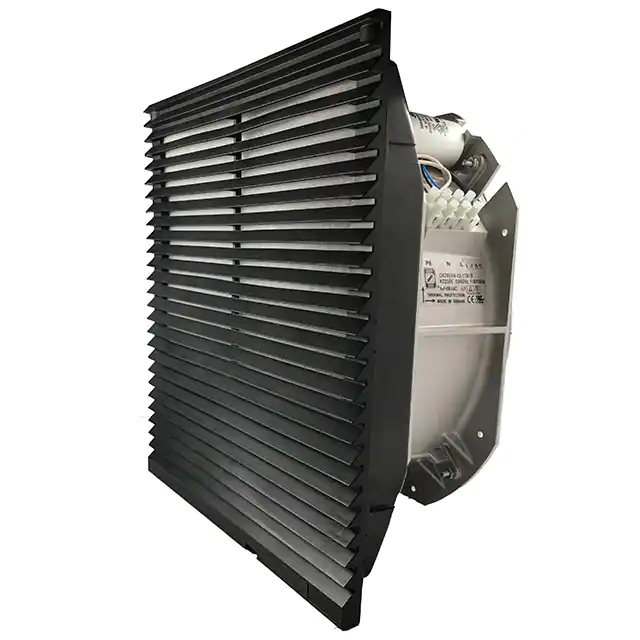

OA280LFGH111TFAN AXIAL 322.7X133.4MM 115VAC |
1,883 | 214.99 |
|
Datasheet |
OA280LFGH | Box | Active | 115VAC | Square - 322.7mm L x 322.7mm H | 133.4mm | 1130.0 CFM (31.64m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 70.0dB | 148W | 2700 RPM | Terminal Block | - | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|
|
OA280LFGH221TFAN AXIAL 322.7X133.4MM 230VAC |
3,857 | 214.99 |
|
Datasheet |
OA280LFGH | Box | Active | 230VAC | Square - 322.7mm L x 322.7mm H | 133.4mm | 1130.0 CFM (31.64m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 70.0dB | 158W | 2700 RPM | Terminal Block | - | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|

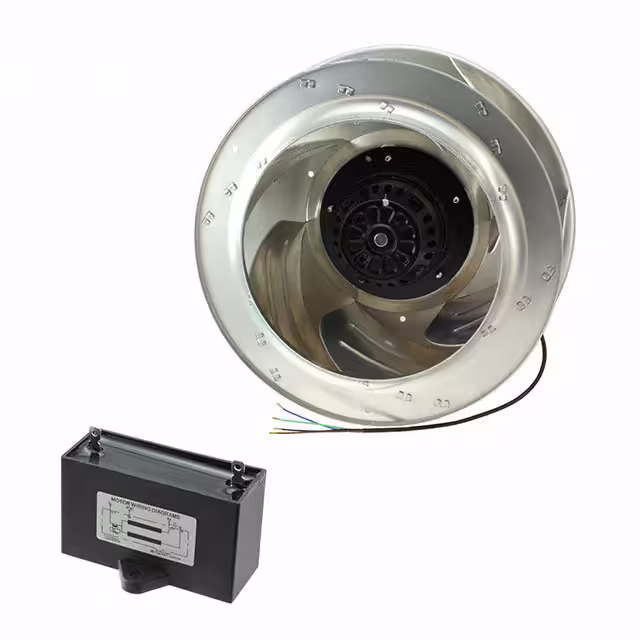

UF318AAA12-H1C4AIMPELLER 318X154MM 115VAC |
4,637 | 213.06 |
|
Datasheet |
UF318AAA | Bulk | Active | 115VAC | Round - 318mm Dia | 154.4mm | 1165.0 CFM (32.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 66.0dB(A) | 160W | 1580 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 8.3 lbs (3.8 kg) |
|
|
OA280LFG221TFAN AXIAL 323X141.5MM 230VAC |
2,616 | 215.54 |
|
Datasheet |
OA280LFG | Box | Active | 230VAC | Square - 320mm L x 320mm H | 141.5mm | 1130.0 CFM (31.64m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 70.0dB | 158W | 2700 RPM | Terminal Block | - | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|
|
OA280LFG111WLFFGK 280MM W/FAN 115VAC WIRE |
2,170 | 0.00 |
|
Datasheet |
OA280LFG | Box | Active | 115VAC | Square - 320mm L x 320mm H | 141.5mm | 1130.0 CFM (31.64m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 70.0dB | 148W | 2700 RPM | 2 Wire Leads | - | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
